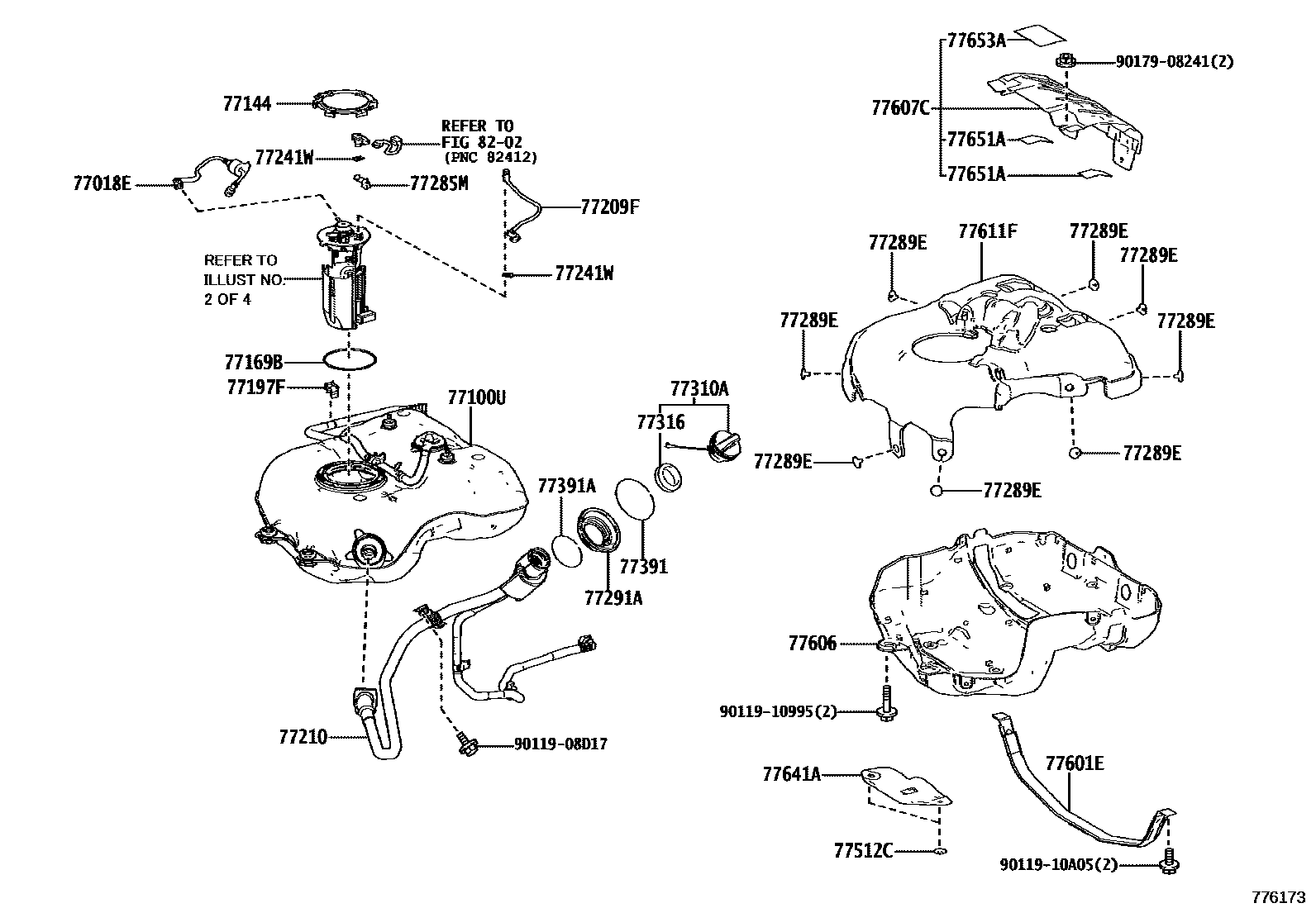

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-47010iMXWH61¥1,540202303

77100UTANK SUB-ASSY, FUEL

main77001-47300iMXWH61¥27,100202303

main77001-47320iZVW60¥27,100202212

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXWH61,ZVW60¥1,270202212

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iMXWH61¥220202303

main77169-47040iZVW60¥700202212

77197FCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47080iMXWH61¥330202303

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47140iMXWH61¥1,090202303

main77209-76050iZVW60¥1,520202212

77210PIPE ASSY, FUEL TANK FILLER

main77210-47520iMXWH61¥11,500202303

77241WCLIP, TUBE JOINT

main77241-33011iMXWH61¥80202303-202312

main77241-60550iZVW60¥50202212

77285MCLAMP, FUEL TUBE, NO.1

main77285-47170iMXWH61¥330202303

77289ECLAMP, FUEL TANK, NO.1

main77289-47050iMXWH61¥190202303

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47050iMXWH61,ZVW60¥1,040202212

77310ACAP ASSY, FUEL TANK

main77300-12020iZVW60¥1,660202212

main77300-33040iMXWH61¥2,370202303

77316GASKET, FUEL TANK CAP

main77316-52040iZVW60¥230202212

main77316-75020iMXWH61¥200202303

77391RING, FUEL INLET BOX

main77391-47050iMXWH61,ZVW60¥200202212

77391ARING, FUEL INLET BOX

main77391-12020iMXWH61,ZVW60¥180202212

77512CBRACKET, FUEL TANK

main77512-35140iZVW60¥230202212

77601EBAND SUB-ASSY, FUEL TANK

main77601-47130iMXWH61¥1,830202303

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-47070iMXWH61¥5,800202303

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-47010iMXWH61¥4,410202303

77611FCOVER, FUEL TANK, UPPER

main77611-47130iMXWH61¥4,320202303

77641APROTECTOR, FUEL TANK, NO.1

main77641-47070iZVW60¥4,860202212

main77641-47150iMXWH61¥660202303

77651ACUSHION, FUEL TANK, NO.1

main77651-47050iMXWH61¥550202303

77653ACUSHION, FUEL TANK, NO.3

main77653-60060iMXWH61¥500202303

8202

9011908D17

main90119-08D17¥100

9011910995

main90119-10995¥190

9011910A05

main90119-10A05¥120

9017908241

main90179-08241¥80

28 parts on this diagram · 9 diagrams in section
