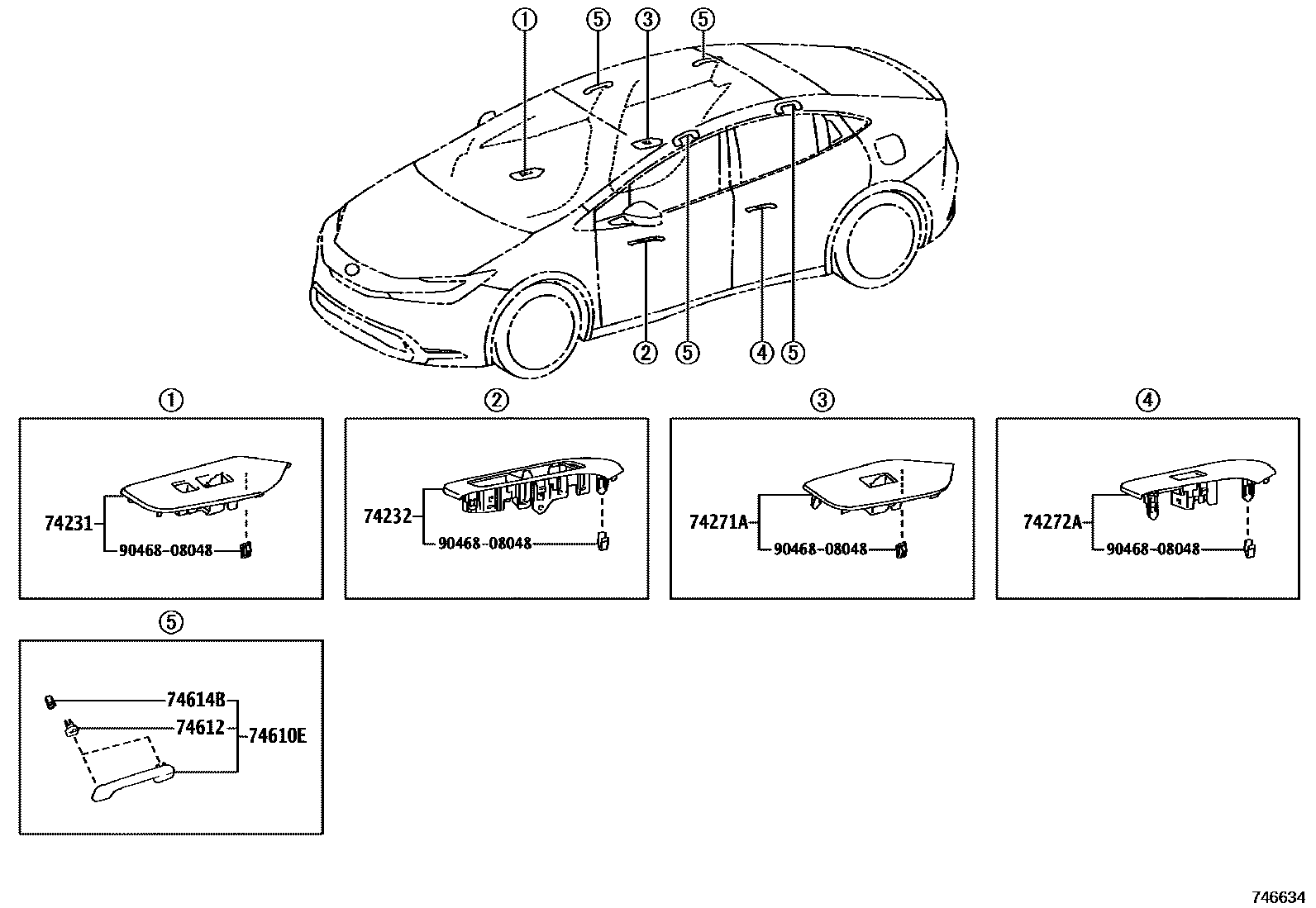

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47280iMXWH61,ZVW60..RHD202212

main74231-47290iMXWH61,ZVW60..LHD202212

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47250iMXWH61,ZVW60..RHD202212

main74232-47260iMXWH61,ZVW60..LHD202212

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47150iMXWH61,ZVW60202212

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47150iMXWH61,ZVW60202212

74610EGRIP ASSY, ASSIST

main74610-12140-B1×4iZVW60;MXWH61..H202212

LT.GRAY,TRIM1#,2#

74612COVER, ASSIST GRIP

main74612-47070-B1×8iZVW60;MXWH61..H202212

LT.GRAY,TRIM1#,2#

74614BPLATE, ASSIST GRIP LOCK

main74614-12020×8iMXWH61,ZVW60202212

9046808048

main90468-08048

8 parts on this diagram · 3 diagrams in section
