FRONT SEAT & SEAT TRACK

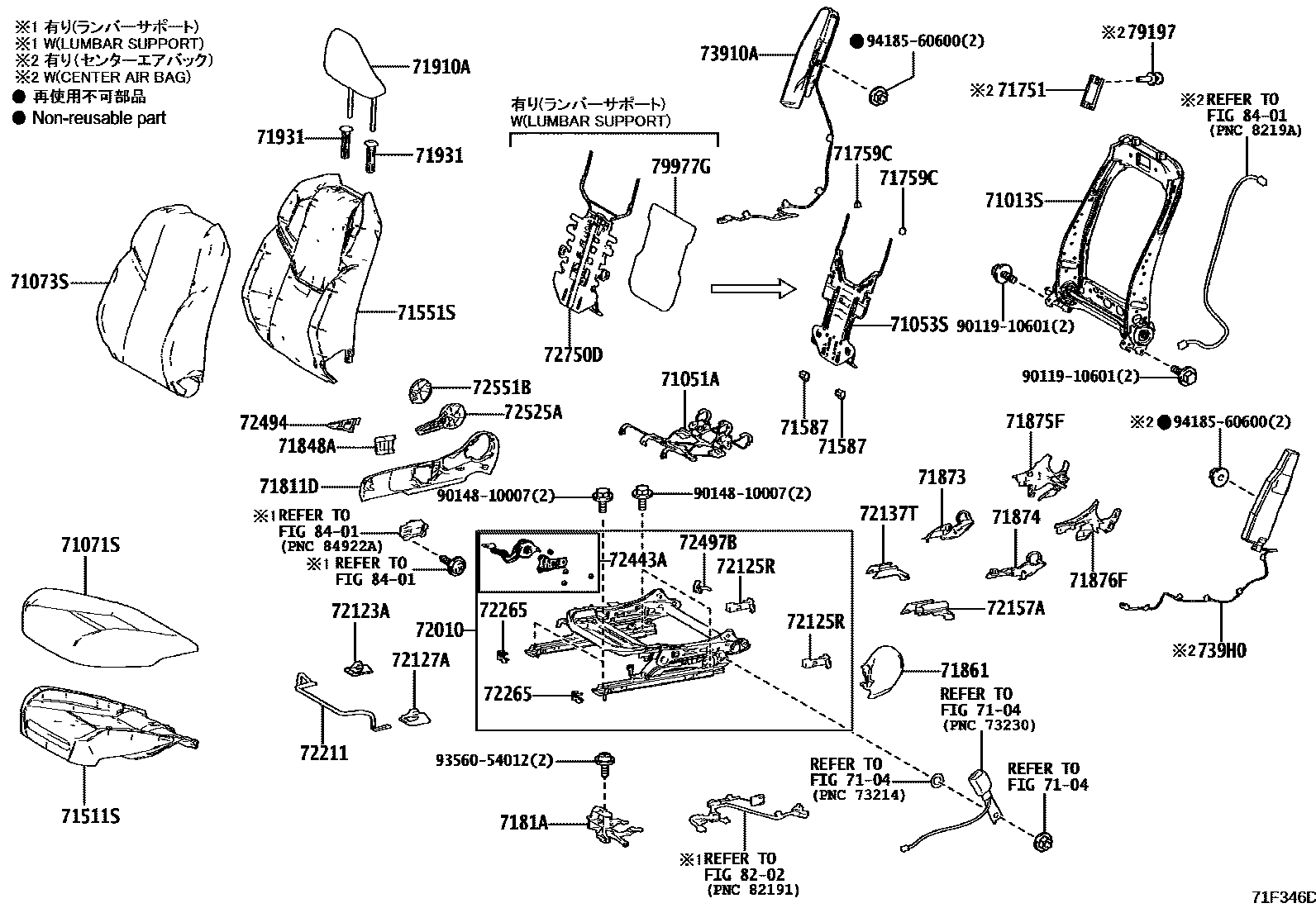

Parts diagram
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-30C50i202212
main71013-47210i202303
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH
main71051-11010i202212-202304
main71051-47050i202304
71053SSPRING SUB-ASSY, FRONT SEATBACK, RH
main71053-47050i202212
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-47C90-B0i202212
GRAY,TRIM1#
main71071-47C90-C0i202212
BLACK,TRIM2#
main71071-47F30-B0i202212
GRAY,TRIM1#
main71071-47F30-C0i202212
BLACK,TRIM2#
main71071-47G10-C4i202303-202501
BLACK/RED,TRIM22
main71071-47G10-C5i202303-202501
BLACK/LT.GRAY,TRIM20
main71071-47G10-C8i202501
RED NO.55,TRIM22
main71071-47G10-C9i202501
LT.GRAY NO.831,TRIM20
main71071-47J10-C2i202303-202501
BLACK/RED,TRIM22
main71071-47J10-C3i202303-202501
BLACK/LT.GRAY,TRIM20
main71071-47J10-C4i202501
RED NO.55,TRIM22
main71071-47J10-C5i202501
LT.GRAY NO.831,TRIM20
main71071-47J20-C2i202303-202501
BLACK/RED,TRIM22
main71071-47J20-C3i202303-202501
BLACK/LT.GRAY,TRIM20
main71071-47J20-C6i202501
RED NO.55,TRIM22
main71071-47J20-C7i202501
LT.GRAY NO.831,TRIM20
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-47E90-B0i202212
GRAY,TRIM1#
main71073-47E90-C0i202212
BLACK,TRIM2#
main71073-47G90-C1i202303
BLACK/RED,TRIM22
main71073-47G90-C2i202303
BLACK/LT.GRAY,TRIM20
main71073-47J30-B0i202212
GRAY,TRIM1#
main71073-47J30-C0i202212
BLACK,TRIM2#
main71073-47K20-C0i202303
BLACK/LT.GRAY,TRIM20
main71073-47K20-C1i202303
BLACK/RED,TRIM22
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-47030i202212
main71501-47060i202303
main71511-47200i202212
main71511-47230i202303
main71511-47320i202303
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-47340i202212
main71551-47410i202303
main71551-47420i202303
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-47010i202212
71751HANGER, SEAT COVER
main71751-47050i202303
71759CHOOK, FRONT SEATBACK, NO.1
main71759-50040i202212
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-47150-C1i202212
BLACK,TRIM1#,2#
main71811-47150-C1i202303
BLACK,TRIM2#
main71811-47210-C0i202303
BLACK,TRIM1#,2#
main71811-47220-C0i202212
BLACK,TRIM1#,2#
main71811-47240-C0i202303
BLACK,TRIM2#
7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
main7181A-11010i202303
main7181A-47010i202212
71848ACAP, SEAT ADJUSTER COVER, RH
main71848-10020-C0i202308
BLACK,TRIM1#,2#
main71848-10020-C0i202308
BLACK,TRIM2#
main71848-47040-C1i202212-202308
BLACK,TRIM1#,2#
main71848-47040-C1i202303-202308
BLACK,TRIM2#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-47090-C0i202212
BLACK,TRIM1#,2#
main71861-47090-C0i202303
BLACK,TRIM2#
main71861-47100-C0i202212
BLACK,TRIM1#,2#
main71861-47100-C0i202303
BLACK,TRIM2#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47070i202212
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-47110i202212
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-47040-C1i202212-202304
BLACK,TRIM1#,2#
main71875-47040-C1i202303-202304
BLACK,TRIM2#
main71875-47060-C1i202212
BLACK,TRIM1#,2#
main71875-47060-C1i202303
BLACK,TRIM2#
main71875-47100-C0i202304
BLACK,TRIM2#
main71875-47100-C0i202304
BLACK,TRIM1#,2#
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-47090i202212
main71875-47110-C0i202304
BLACK,TRIM2#
main71875-47110-C0i202304
BLACK,TRIM1#,2#
main71875-62010-C0i202212-202304
BLACK,TRIM1#,2#
main71875-62010-C0i202303-202304
BLACK,TRIM2#
71910AHEADREST ASSY, FRONT SEAT
main71910-47660-B0i202212
LT.GRAY,TRIM1#
main71910-47660-C1i202212
BLACK,TRIM2#
main71910-47710-C2i202303
BLACK/RED,TRIM22
main71910-47710-C3i202303
BLACK/LT.GRAY,TRIM20
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-C5i202212
W(LOCK),BLACK,TRIM1#,2#
main71930-47050-C5i202303
W(LOCK),BLACK,TRIM2#
main71931-47030-C4i202303
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4i202212
W/O(LOCK),BLACK,TRIM1#,2#
72010ADJUSTER ASSY, FRONT SEAT, RH
main72010-47350i202212
main72010-47470i202212
main72010-47490i202303
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-47050-C0i202212
BLACK,TRIM1#,2#
main72123-47050-C0i202303
BLACK,TRIM2#
72125RCOVER, SEAT TRACK, UPPER REAR NO.1
main72125-47010i202212
main72125-47020i202303
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72123-47060i202212
72137TCOVER, SEAT TRACK BRACKET, OUTER REAR RH
main72138-47070-C0i202212
BLACK,TRIM1#,2#
main72138-47070-C0i202303
BLACK,TRIM2#
72157ACOVER, SEAT TRACK BRACKET, INNER RH
main72157-47110-C0i202212
BLACK,TRIM1#,2#
main72157-47110-C0i202303
BLACK,TRIM2#
72211HANDLE, SEAT TRACK ADJUSTING
main72211-47010i202212
72265COVER, SEAT TRACK UPPER RAIL, RH
main72265-47010i202212
main72265-47020i202303
72443AGEAR, VERTICAL ADJUSTER, RH
main72443-47030i202212
72494HANDLE, VERTICAL ADJUSTING, RH
main72494-12080-C0i202308
BLACK,TRIM2#
main72494-12080-C0i202308
BLACK,TRIM1#,2#
main72494-47030-C1i202212-202308
BLACK,TRIM1#,2#
main72494-47030-C1i202303-202308
BLACK,TRIM2#
72497BCOVER, VERTICAL ADJUSTER BRACKET, RH
main72498-47010i202212
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
main72525-47040-C1i202212
BLACK,TRIM1#,2#
main72525-47040-C1i202303
BLACK,TRIM2#
72551BCOVER, RECLINING HINGE, RH
main72551-47030-C1i202303
BLACK,TRIM2#
main72551-47030-C1i202212
BLACK,TRIM1#,2#
main72551-47030-C1i202303
FRONT SEAT-*DRS(POWER SEAT),SPORTY,BLACK,TRIM2#
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-33140i202303
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-47140i202212
739H0AIRBAG ASSY, FRONT SEAT CENTER, RH
main739H0-47010i202303
main739H0-47020i202303
79197HOOK, SEATBACK COVER
main79197-47010i202303
79977GFELT, FRONT SEATBACK, RH
main79977-33030i202303
SEAT COVER MATERIAL-SYNTHETIC LEATHER
main79977-33030i202303
SEAT COVER MATERIAL-SYNTHETIC LEATHER&SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)
8202WIRING & CLAMP
→ Go to FIG 82-02
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9011910601
main90119-10601
9014810007
main90148-10007
9356054012
main93560-54012
9418560600
main94185-60600
