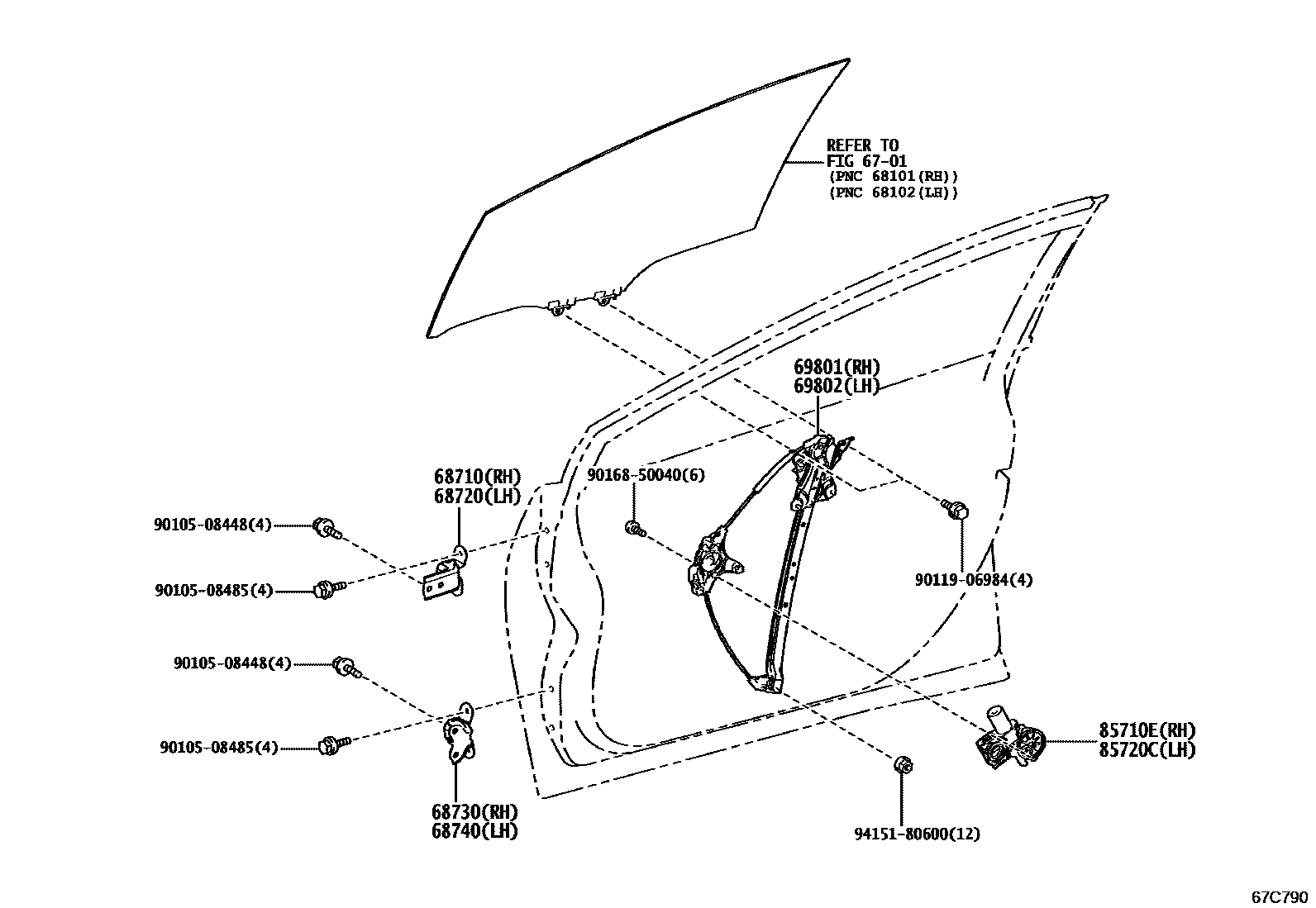

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMXWH61,ZVW60202212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMXWH61,ZVW60202212

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMXWH61,ZVW60202212

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMXWH61,ZVW60202212

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-47030iMXWH61,ZVW60202212

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-47030iMXWH61,ZVW60202212

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12531iMXWH61,ZVW60202212

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12521iMXWH61,ZVW60202212

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
