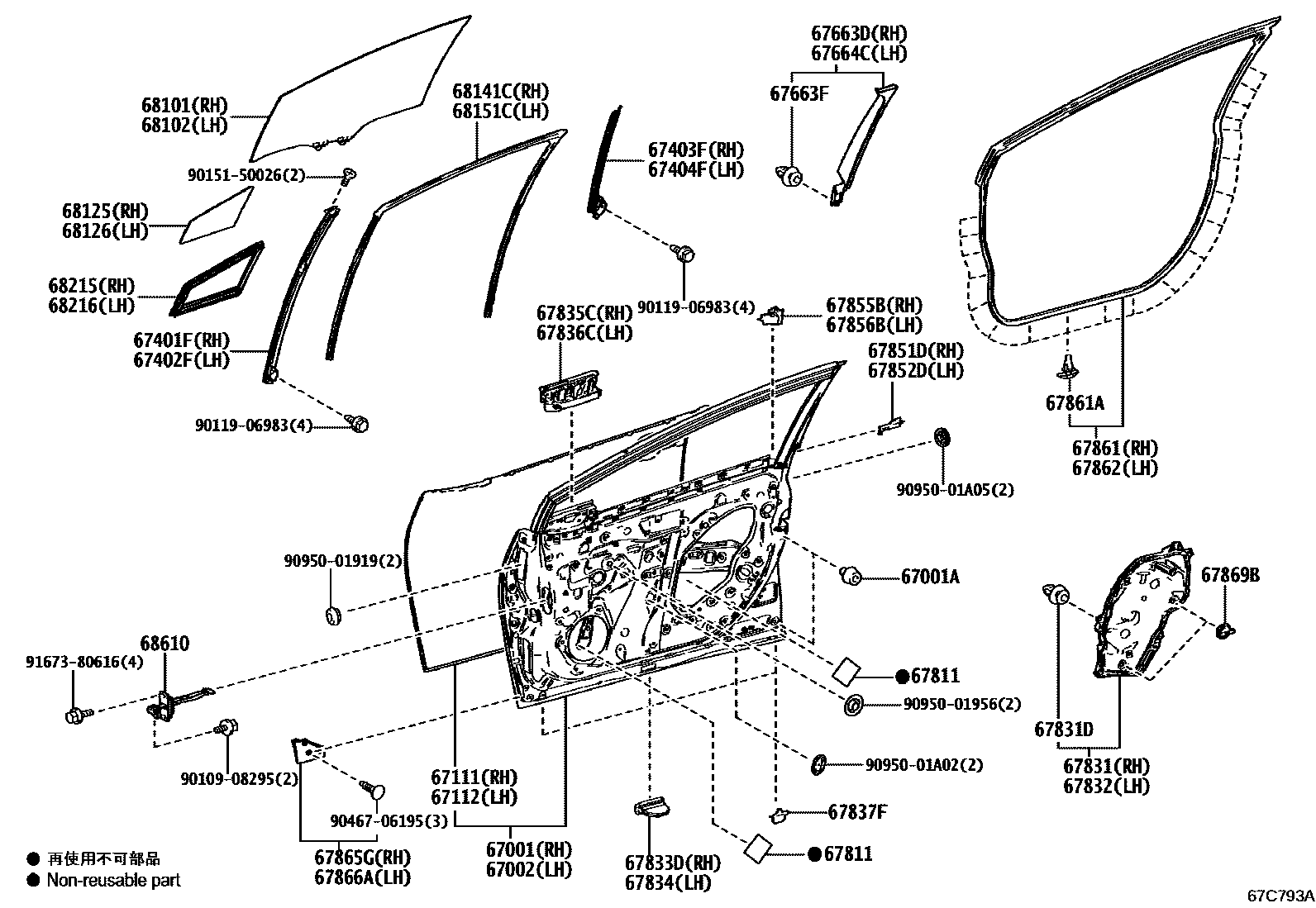

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-47180iMXWH61,ZVW60202212

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iMXWH61,ZVW60202212

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-47200iMXWH61,ZVW60202212

67111PANEL, FRONT DOOR, OUTER RH

main67111-47060iMXWH61,ZVW60202212

67112PANEL, FRONT DOOR, OUTER LH

main67112-47060iMXWH61,ZVW60202212

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-47020iMXWH61,ZVW60202212

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-47020iMXWH61,ZVW60202212

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-47060iZVW60;MXWH61..LHD202212

main67403-47070iMXWH61..RHD202303

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-47060iMXWH61,ZVW60202212

67663DGARNISH, DOOR FRAME, RH

main67663-47020iMXWH61,ZVW60202212

67663FCLIP(FOR DOOR FRAME GARNISH)

main90467-09206×2iMXWH61,ZVW60202212

67664CGARNISH, DOOR FRAME, LH

main67664-47020iMXWH61,ZVW60202212

67811PAD, FRONT DOOR SILENCER

main67811-12180×4iMXWH61,ZVW60202212

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-47150iMXWH61,ZVW60202212

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206×10iMXWH61,ZVW60202212

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-47130iMXWH61,ZVW60202212

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47030iMXWH61,ZVW60202212

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47030iMXWH61,ZVW60202212

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-47020iMXWH61,ZVW60202212

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-47020iMXWH61,ZVW60202212

67837FSEAL, DOOR DUST PROOF

main67837-47060×4iMXWH61,ZVW60202212

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-47020iMXWH61,ZVW60202212

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-47020iMXWH61,ZVW60202212

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-47050iMXWH61,ZVW60202212

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-47050iMXWH61,ZVW60202212

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-47070iMXWH61,ZVW60202212

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×40iMXWH61,ZVW60202212

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-47070iMXWH61,ZVW60202212

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-47010iMXWH61,ZVW60202212

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-47010iMXWH61,ZVW60202212

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×4iMXWH61,ZVW60202212

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-47260iMXWH61,ZVW60..E202212

main68101-47280iMXWH61..H202303

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-47260iMXWH61,ZVW60..E202212

main68102-47280iMXWH61..H202303

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-47060iMXWH61,ZVW60..E202212

main68125-47070iMXWH61..H202303

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-47060iMXWH61,ZVW60..E202212

main68126-47070iMXWH61..H202303

68141CRUN, FRONT DOOR GLASS, RH

main68141-47070iMXWH61,ZVW60..E202212

main68141-47080iMXWH61..H202303

68151CRUN, FRONT DOOR GLASS, LH

main68151-47070iMXWH61,ZVW60..E202212

main68151-47080iMXWH61..H202303

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-47020iMXWH61,ZVW60202212

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-47020iMXWH61,ZVW60202212

68610CHECK ASSY, FRONT DOOR

main68610-47080×2iMXWH61,ZVW60202212

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9046706195

main90467-06195

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9167380616

main91673-80616

49 parts on this diagram · 2 diagrams in section
