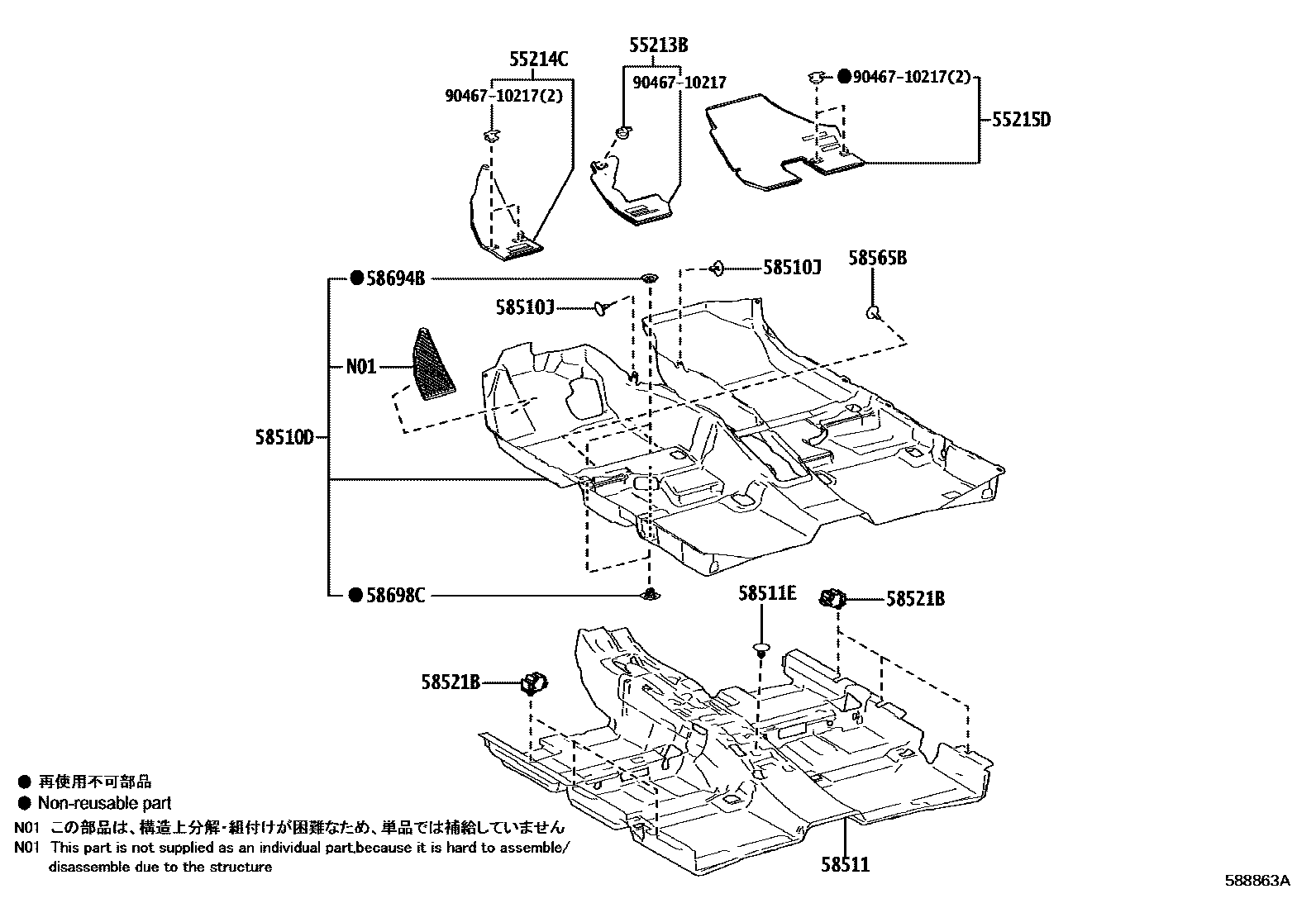

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
58510JCLIP (FOR FLOOR CARPET)
BLACK,TRIM1#,2#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
58521BHOOK, FLOOR CARPET
58565BCLIP
BLACK,TRIM2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710217
main90467-10217
12 parts on this diagram · 4 diagrams in section
