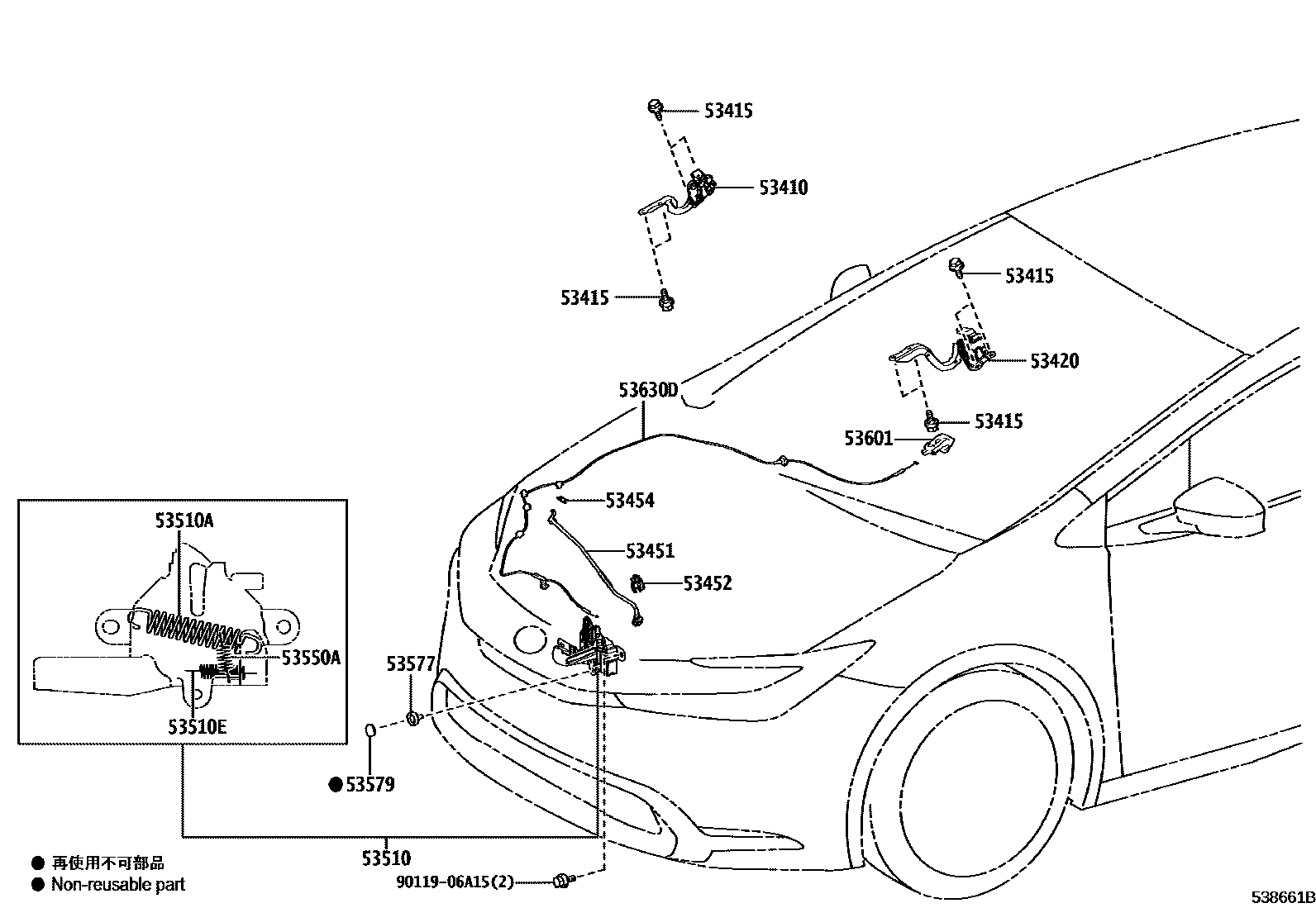

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53415BOLT, HOOD HINGE
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
MONGOLIA SPEC&
TAIWAN SPEC
53452HOLDER, HOOD STAY
53454CLIP, HOOD SUPPORT ROD
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=1.6,CW=13
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53550ASPRING, TORSION(FOR HOOD LOCK HOOK)
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM1#,2#
BLACK,TRIM2#
53630DSET, CABLE & LEVER, HOODLOCK CONTROL
PARKING SUPPORT ALT/BRK-WITHOUT
PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT
TAIWAN SPEC&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITH(*BSM & SAFE EXIT ASSIST)
TAIWAN SPEC&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITHOUT
TAIWAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITH(*BSM
TAIWAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITH(PARKING SUPPORT BRAKE)&BACK MONITOR-WITHOUT&REAR & REAR SIDE MONITOR-WITHOUT
INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR&PARKING SUPPORT ALT/BRK-WITHOUT
9011906A15
main90119-06A15
15 parts on this diagram · 2 diagrams in section
