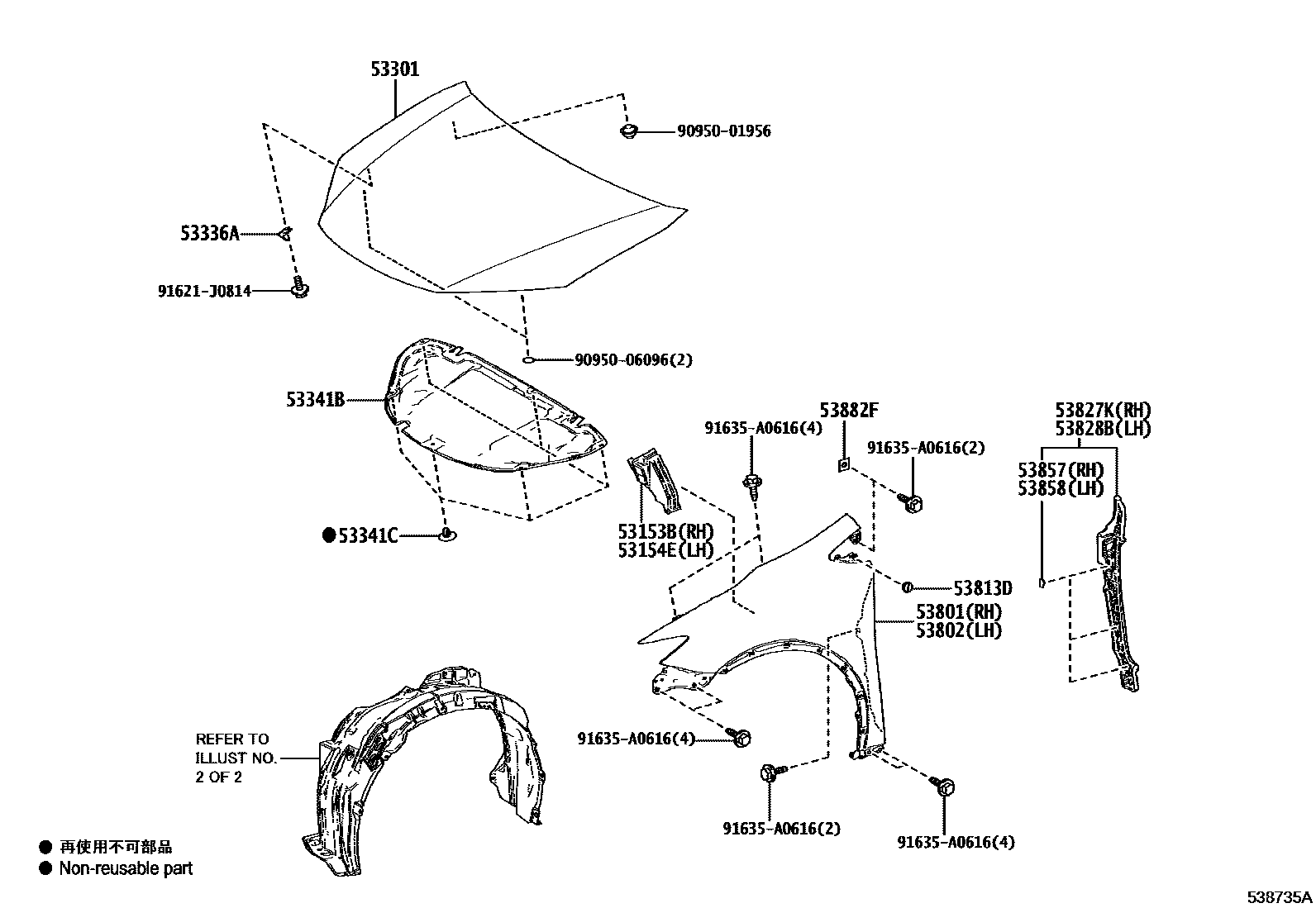

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-47030iMXWH61,ZVW60¥3,310202212

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-47030iMXWH61,ZVW60¥3,300202212

53301HOOD SUB-ASSY

main53301-47130iMXWH61,ZVW60¥48,300202212

53336ABRACKET, HOOD STAY

main53336-47030iMXWH61,ZVW60¥270202212

53341BINSULATOR, HOOD

main53341-47060iMXWH61¥6,700202303

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iMXWH61¥120202303

53801FENDER SUB-ASSY, FRONT RH

main53801-47110iMXWH61,ZVW60¥27,000202212

53802FENDER SUB-ASSY, FRONT LH

main53802-47130iMXWH61,ZVW60¥27,000202212

53813DEXTENSION, FRONT FENDER

main53813-47040iMXWH61,ZVW60¥160202212

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47060iMXWH61,ZVW60¥1,930202212

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47080iMXWH61,ZVW60¥1,930202212

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMXWH61,ZVW60¥100202212

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iMXWH61,ZVW60¥100202212

53882FSEAL, FRONT FENDER

main53882-33060iMXWH61,ZVW60¥60202212

9095001956

main90950-01956¥100

9095006096

main90950-06096¥100

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

18 parts on this diagram · 2 diagrams in section
