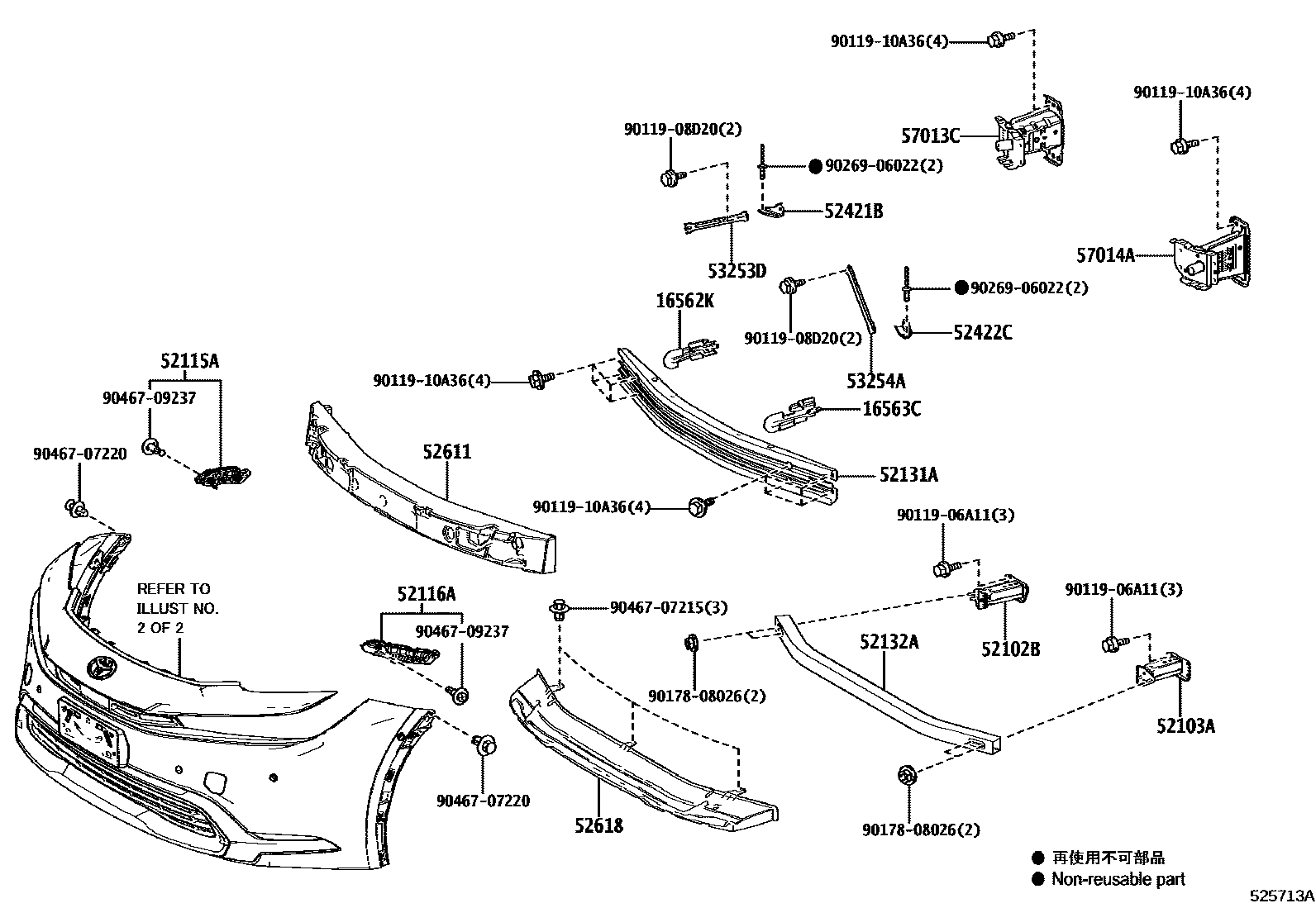

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

16562KSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37070iM20AFXS,2ZRFXE..MXWH61,ZVW60202212

16563CSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37070iM20AFXS,2ZRFXE..MXWH61,ZVW60202212

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-47050iMXWH61,ZVW60202212

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-47030iMXWH61,ZVW60202212

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-47060iMXWH61,ZVW60202212

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-47060iMXWH61,ZVW60202212

52131AREINFORCEMENT, FRONT BUMPER

main52131-47200iMXWH61,ZVW60202212

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-47020iMXWH61,ZVW60202212

52421BSPACER, FRONT BUMPER, NO.1

main52421-47020iMXWH61..H202303

52422CSPACER, FRONT BUMPER, NO.2

main52422-47040iMXWH61..H202303

52611ABSORBER, FRONT BUMPER ENERGY

main52611-47230iMXWH61,ZVW60202212

52618ABSORBER, FRONT BUMPER, LOWER

main52618-47160iMXWH61,ZVW60202212

53253DBRACKET, RADIATOR MOUNTING, UPPER RH

main53254-47010iMXWH61..H202303

53254ABRACKET, RADIATOR MOUNTING, UPPER LH

main53254-47010iMXWH61..H202303

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-47090iMXWH61,ZVW60202212

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-47060iMXWH61,ZVW60202212

9011906A11

main90119-06A11

9011908D20

main90119-08D20

9011910A36

main90119-10A36

9017808026

main90178-08026

9026906022

main90269-06022

9046707215

main90467-07215

9046707220

main90467-07220

9046709237

main90467-09237

24 parts on this diagram · 2 diagrams in section
