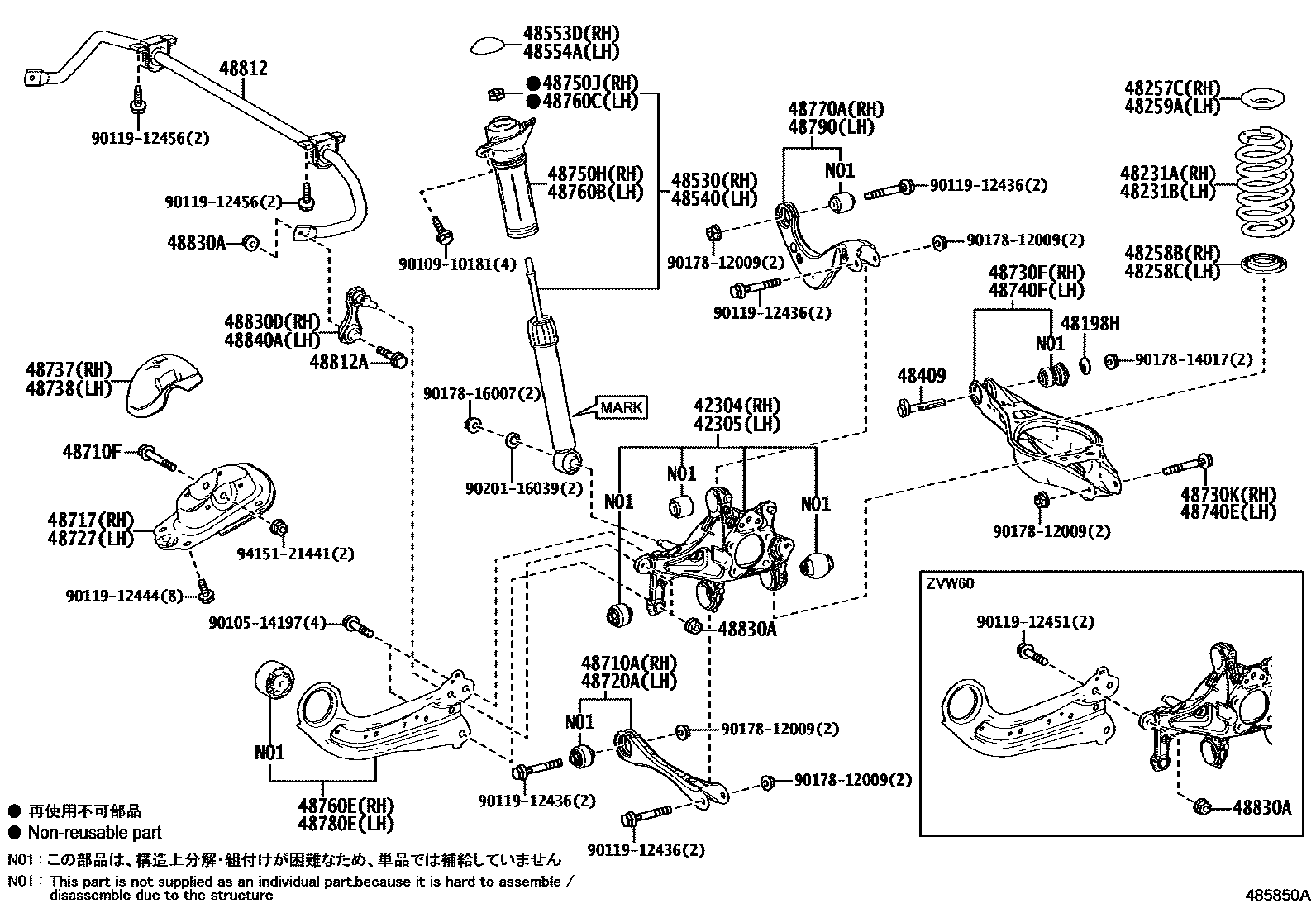

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-47090iMXWH61,ZVW60202212

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-47090iMXWH61,ZVW60202212

48198HCAM, CAMBER ADJUST, NO.2

main48198-47010×2iMXWH61,ZVW60202212

48231ASPRING, COIL, REAR RH

main48231-47680iZVW60202212

main48231-47690iMXWH61202303

48231BSPRING, COIL, REAR LH

main48231-47680iZVW60202212

main48231-47690iMXWH61202303

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-47020iMXWH61,ZVW60202212

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-47010iMXWH61,ZVW60202212

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-47010iMXWH61,ZVW60202212

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-47020iMXWH61,ZVW60202212

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-47011×2iMXWH61,ZVW60202212

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z241supersedes 48530-8Z242iMXWH61..H202303

MARK 48530-47570,TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL

main48530-8Z243iZVW60202212

MARK 48530-47580

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z241supersedes 48530-8Z242iMXWH61..H202303

MARK 48530-47570,TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL

main48530-8Z243iZVW60202212

MARK 48530-47580

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-47010iMXWH61,ZVW60202212

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-47010iMXWH61,ZVW60202212

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-47020iMXWH61,ZVW60202212

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195×2iMXWH61,ZVW60202212

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-47020iMXWH61,ZVW60202212

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-47020iMXWH61,ZVW60202212

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-47020iMXWH61,ZVW60202212

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-47020iMXWH61,ZVW60202212

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iMXWH61,ZVW60202212

48737COVER, REAR SUSPENSION ARM, RH

main48753-47010iMXWH61,ZVW60202212

48738COVER, REAR SUSPENSION ARM, LH

main48753-47020iMXWH61,ZVW60202212

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iMXWH61,ZVW60202212

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-47020iMXWH61,ZVW60202212

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-47030iMXWH61,ZVW60202212

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94130-61200iMXWH61,ZVW60202212

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-47030iMXWH61,ZVW60202212

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94130-61200iMXWH61,ZVW60202212

48760EARM ASSY, TRAILING, REAR RH

main48760-47020iMXWH61,ZVW60202212

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-47010iMXWH61,ZVW60202212

48780EARM ASSY, TRAILING, REAR LH

main48780-47020iMXWH61,ZVW60202212

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-47010iMXWH61,ZVW60202212

48812BAR, STABILIZER, REAR

main48805-47050supersedes 48805-47060iMXWH61..H202303

TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL

48812ABOLT, STABILIZER REAR BAR

main90105-12393×2iMXWH61202303

48830ANUT(FOR REAR STABILIZER LINK)

main94151-21241×2iZVW60202212

48830DLINK ASSY, REAR STABILIZER, RH

main48830-16020iMXWH61202303

48840ALINK ASSY, REAR STABILIZER, LH

main48830-16020iMXWH61202303

9010514197

main90105-14197

9010910181

main90109-10181

9011912436

main90119-12436

9011912444

main90119-12444

9011912451

main90119-12451

9011912456

main90119-12456

9017812009

main90178-12009

9017814017

main90178-14017

9017816007

main90178-16007

9020116039

main90201-16039

9415121441

main94151-21441

49 parts on this diagram · 1 diagram in section
