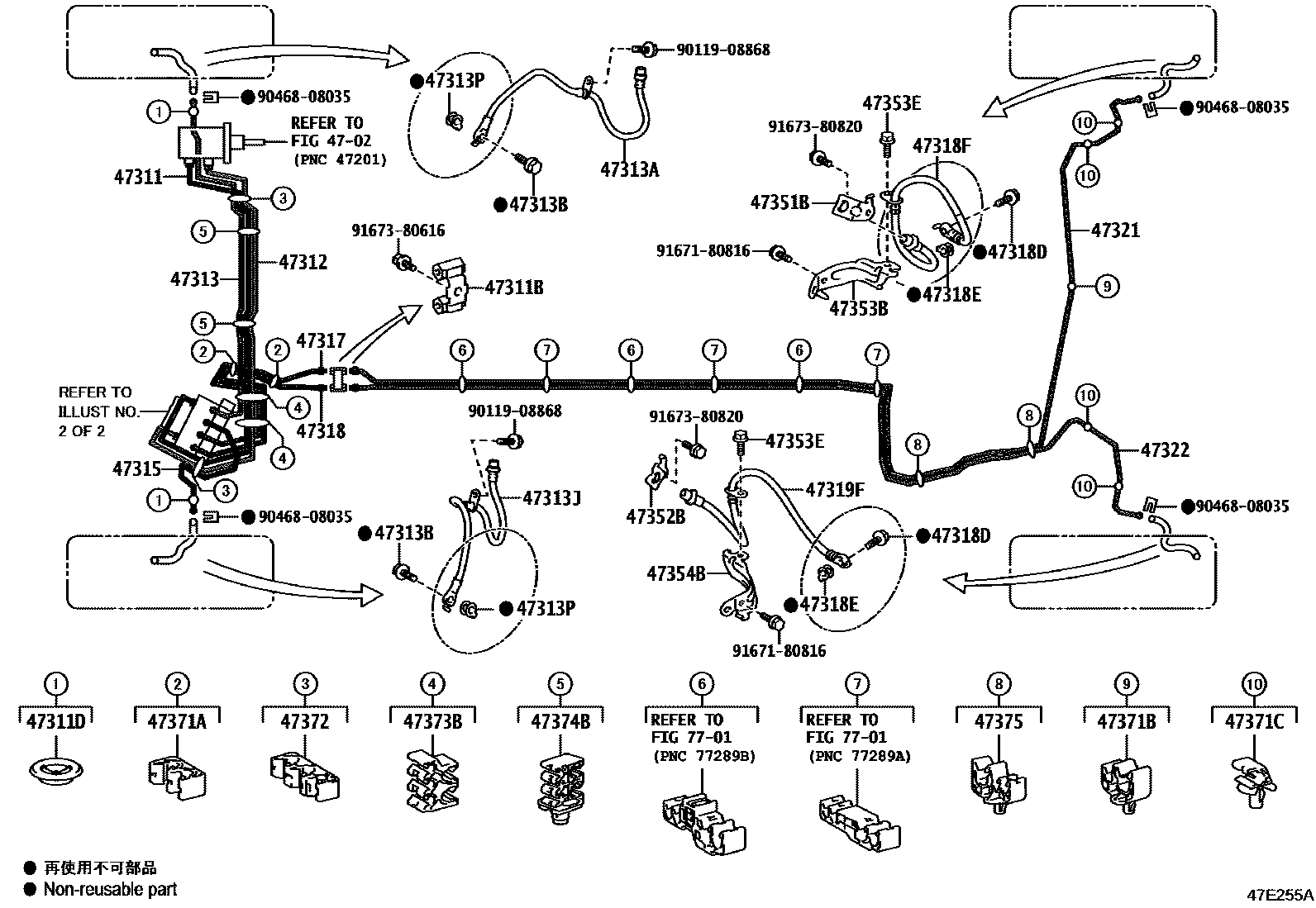

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-47110iMXWH61,ZVW60..LHD202212

main47311-47120iMXWH61,ZVW60..RHD202212

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMXWH61,ZVW60202212

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037iMXWH61,ZVW60202212

47312TUBE, FRONT BRAKE, NO.2

main47312-47090iMXWH61,ZVW60..LHD202212

main47312-47100iMXWH61,ZVW60..RHD202212

47313TUBE, FRONT BRAKE, NO.3

main47313-47090iMXWH61,ZVW60..LHD202212

main47313-47100iMXWH61,ZVW60..RHD202212

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02K97iMXWH61,ZVW60202212

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iMXWH61,ZVW60202212

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02K98iMXWH61,ZVW60202212

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iMXWH61,ZVW60202212

47315TUBE, FRONT BRAKE, NO.5

main47315-47080iMXWH61,ZVW60..LHD202212

main47315-47090iMXWH61,ZVW60..RHD202212

47317TUBE, FRONT BRAKE, NO.7

main47317-47080iMXWH61,ZVW60..LHD202212

main47317-47090iMXWH61,ZVW60..RHD202212

47318TUBE, FRONT BRAKE, NO.8

main47318-47070iMXWH61,ZVW60..LHD202212

main47318-47080iMXWH61,ZVW60..RHD202212

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iMXWH61,ZVW60202212

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iMXWH61,ZVW60202212

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H69iMXWH61,ZVW60202212-202410

main90947-02K87iMXWH61,ZVW60202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H70iMXWH61,ZVW60202212-202410

main90947-02K88iMXWH61,ZVW60202410

47321TUBE, REAR BRAKE, NO.1

main47321-47110iZVW60202212-202410

main47321-47120iMXWH61202303-202410

main47321-47130iZVW60202410

main47321-47140iMXWH61202410

47322TUBE, REAR BRAKE, NO.2

main47322-47110iZVW60202212-202410

main47322-47120iMXWH61202303-202410

main47322-47130iZVW60202410

main47322-47140iMXWH61202410

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iMXWH61,ZVW60202212

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iMXWH61,ZVW60202212

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-10110iMXWH61,ZVW60202212

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08868iMXWH61,ZVW60202212

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-10060iMXWH61,ZVW60202212

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01D91iMXWH61,ZVW60202212

47371BCLAMP, BRAKE TUBE, NO.6

main77285-12170iZVW60202212

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E10iZVW60202212

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D92iMXWH61,ZVW60..LHD202212

main90949-01E43iMXWH61,ZVW60..RHD202212

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E40iMXWH61,ZVW60..RHD202212

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E79iMXWH61,ZVW60..LHD202212

47375CLAMP, BRAKE TUBE, NO.5

main77286-12230iZVW60202212

7701

9011908868

main90119-08868

9046808035

main90468-08035

9167180816

main91671-80816

9167380616

main91673-80616

9167380820

main91673-80820

37 parts on this diagram · 6 diagrams in section
