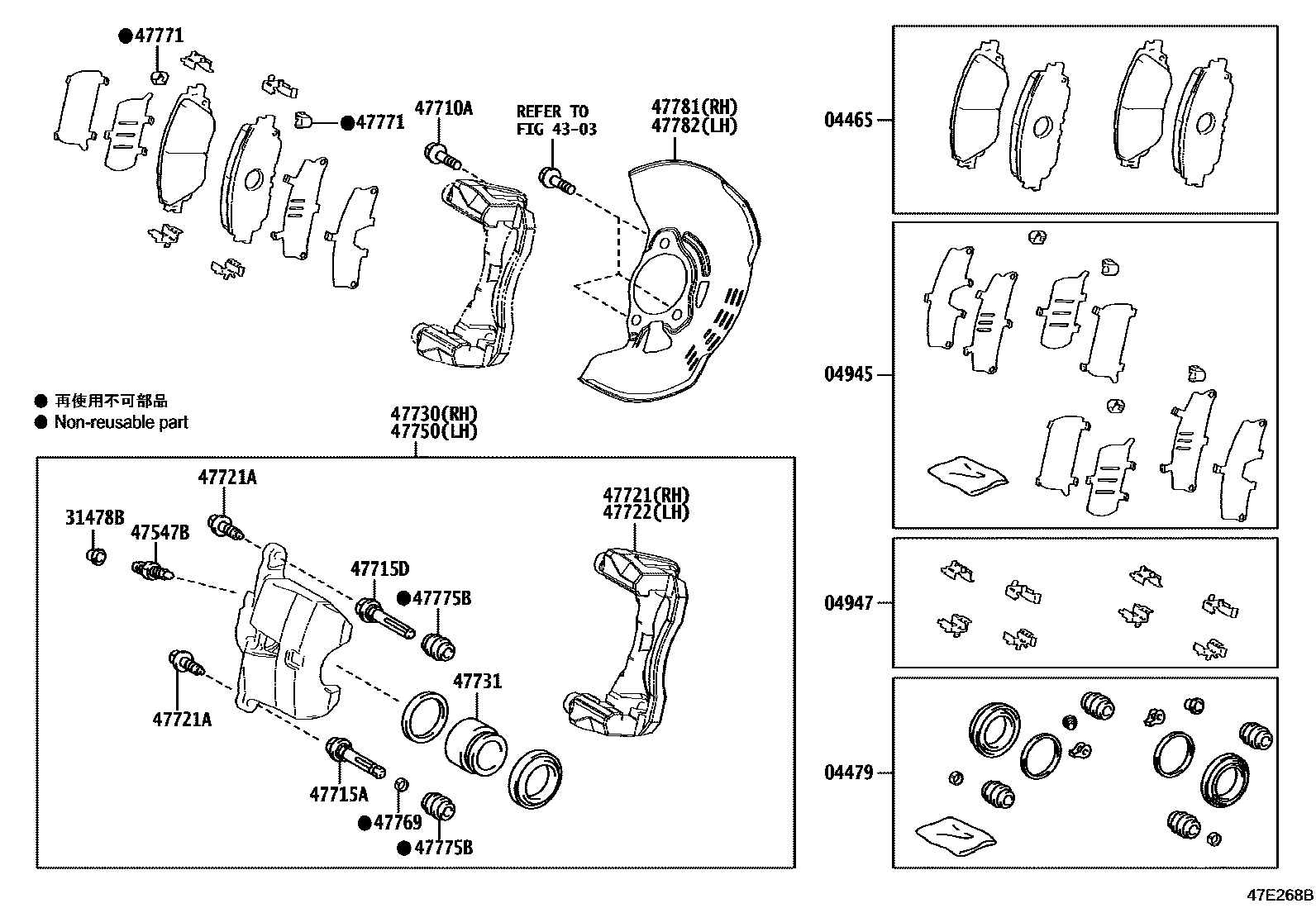

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1TAIWAN SPEC

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670iZVW60¥9,200202212

MARK ADVICS VC084H

main04465-76010iMXWH61202303

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130iZVW60¥1,800202212

main04478-33160iMXWH61¥2,200202303

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12120iZVW60¥1,850202212

main04945-76010iMXWH61¥1,850202303

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47030iZVW60¥2,080202212

main04947-76010iMXWH61202303

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iMXWH61,ZVW60¥160202212

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iMXWH61,ZVW60¥200202212

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iMXWH61,ZVW60¥160202212

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10iMXWH61,ZVW60¥360202212

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190iMXWH61,ZVW60¥360202212

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10iZVW60¥6,100202212

main47721-76010iMXWH61¥6,400202303

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iMXWH61,ZVW60¥90202212

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10iZVW60¥6,100202212

main47722-76010iMXWH61¥6,400202303

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10iZVW60¥27,900202212

main47730-76010iMXWH61¥29,700202303

47731PISTON, FRONT DISC BRAKE

main47731-12A10iMXWH61¥1,250202303

main47731-52210iZVW60¥670202212

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10iZVW60¥27,900202212

main47750-76010iMXWH61¥29,700202303

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iMXWH61,ZVW60¥50202212

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380iMXWH61,ZVW60¥200202212

47775BBOOT, BUSH DUST, NO.1

main47775-52190iMXWH61,ZVW60¥210202212

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080iMXWH61,ZVW60¥1,050202212

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080iMXWH61,ZVW60¥1,050202212

20 parts on this diagram · 3 diagrams in section
