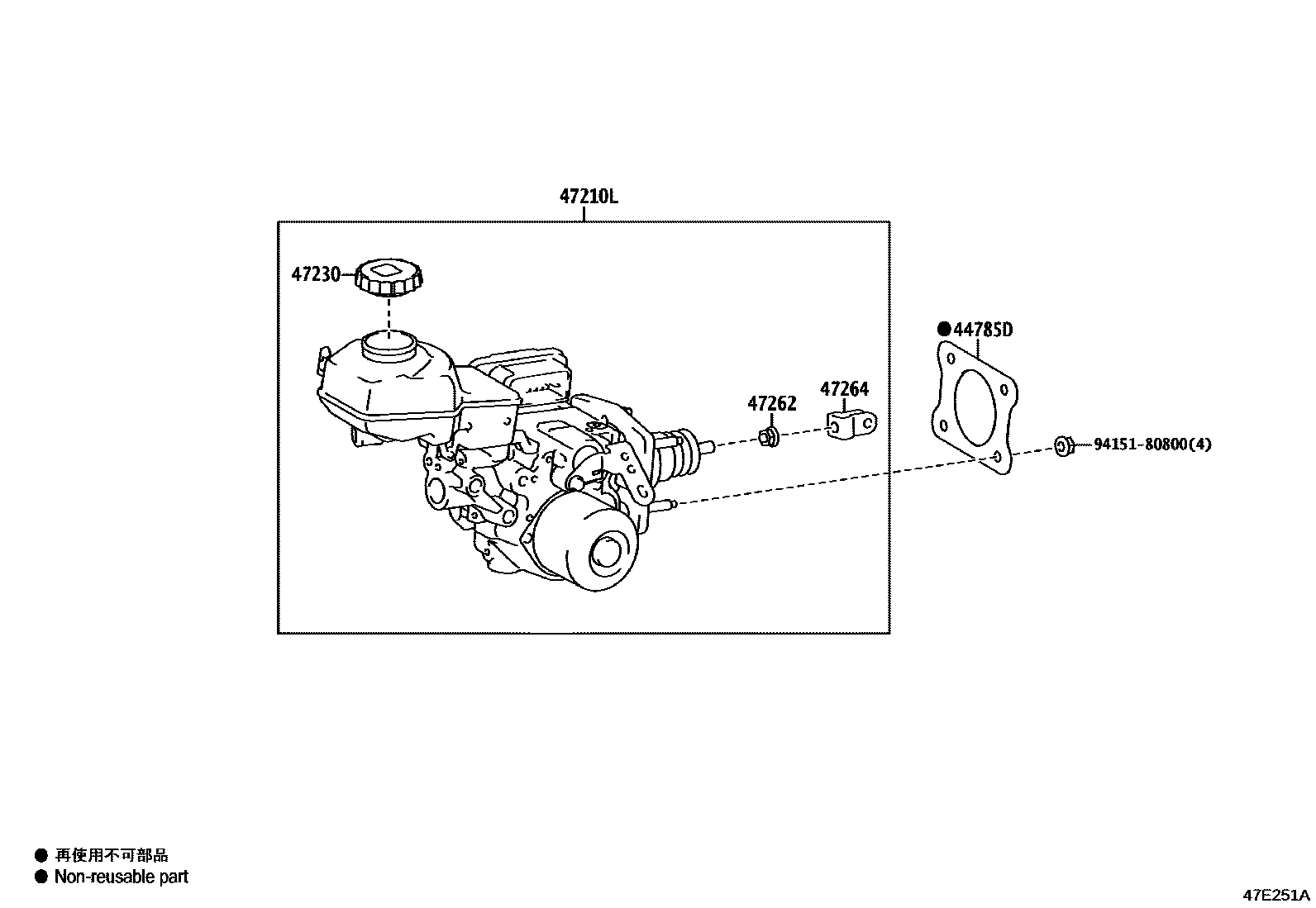

BRAKE MASTER CYLINDER

0001 1 0002 1

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iMXWH61,ZVW60202212

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47L90iMXWH61,ZVW60..LHD202212-202304

sub47050-47L91

main47050-47L91iMXWH61,ZVW60..LHD202305-202411

main47050-47L92iMXWH61,ZVW60..LHD202412

main47050-47M10iMXWH61,ZVW60..RHD202212-202304

sub47050-47M11

main47050-47M11iMXWH61,ZVW60..RHD202305-202411

main47050-47M12iMXWH61,ZVW60..RHD202412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMXWH61,ZVW60202212

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iMXWH61,ZVW60202212

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMXWH61,ZVW60202212

9415180800

main94151-80800

6 parts on this diagram · 2 diagrams in section
