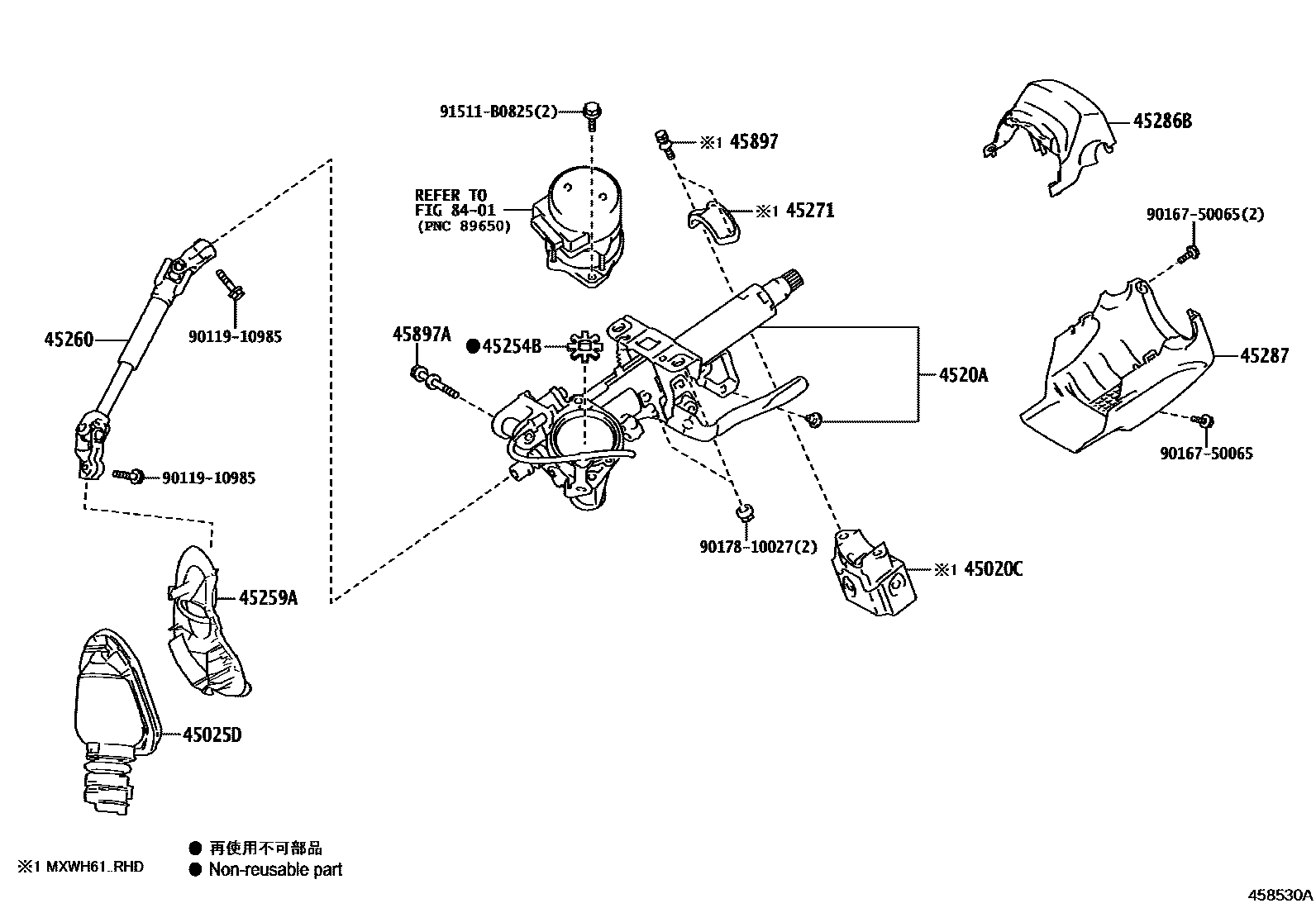

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-42280iMXWH61..RHD202303

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-47050iMXWH61,ZVW60..RHD202212

main45025-47060iMXWH61,ZVW60..LHD202212

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-47020iZVW60..RHD202212

main4520A-47030iMXWH61..RHD202303

main4520A-47080iMXWH61,ZVW60..LHD202212-202408

main4520A-47081iMXWH61,ZVW60..LHD202409

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMXWH61,ZVW60202212

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-47041iMXWH61,ZVW60..RHD202212

main45259-47051iMXWH61,ZVW60..LHD202212

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-47120iMXWH61,ZVW60..RHD202212

main45260-47140iMXWH61,ZVW60..LHD202212

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iMXWH61..RHD202303

45286BCOVER, STEERING COLUMN, UPR

main45286-47060-C0iMXWH61..E202303

BLACK,TRIM1#,2#

main45286-47060-C0iMXWH61..H202303

BLACK,TRIM2#

main45286-47070-C0iZVW60202212

BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45024-47040-C0iZVW60;MXWH61..H202212

BLACK,TRIM1#,2#

main45024-47040-C0iMXWH61..E202303

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iMXWH61..RHD202303

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMXWH61,ZVW60202212

8401

9011910985

main90119-10985

9016750065

main90167-50065

9017810027

main90178-10027

91511B0825

main91511-B0825

16 parts on this diagram · 2 diagrams in section
