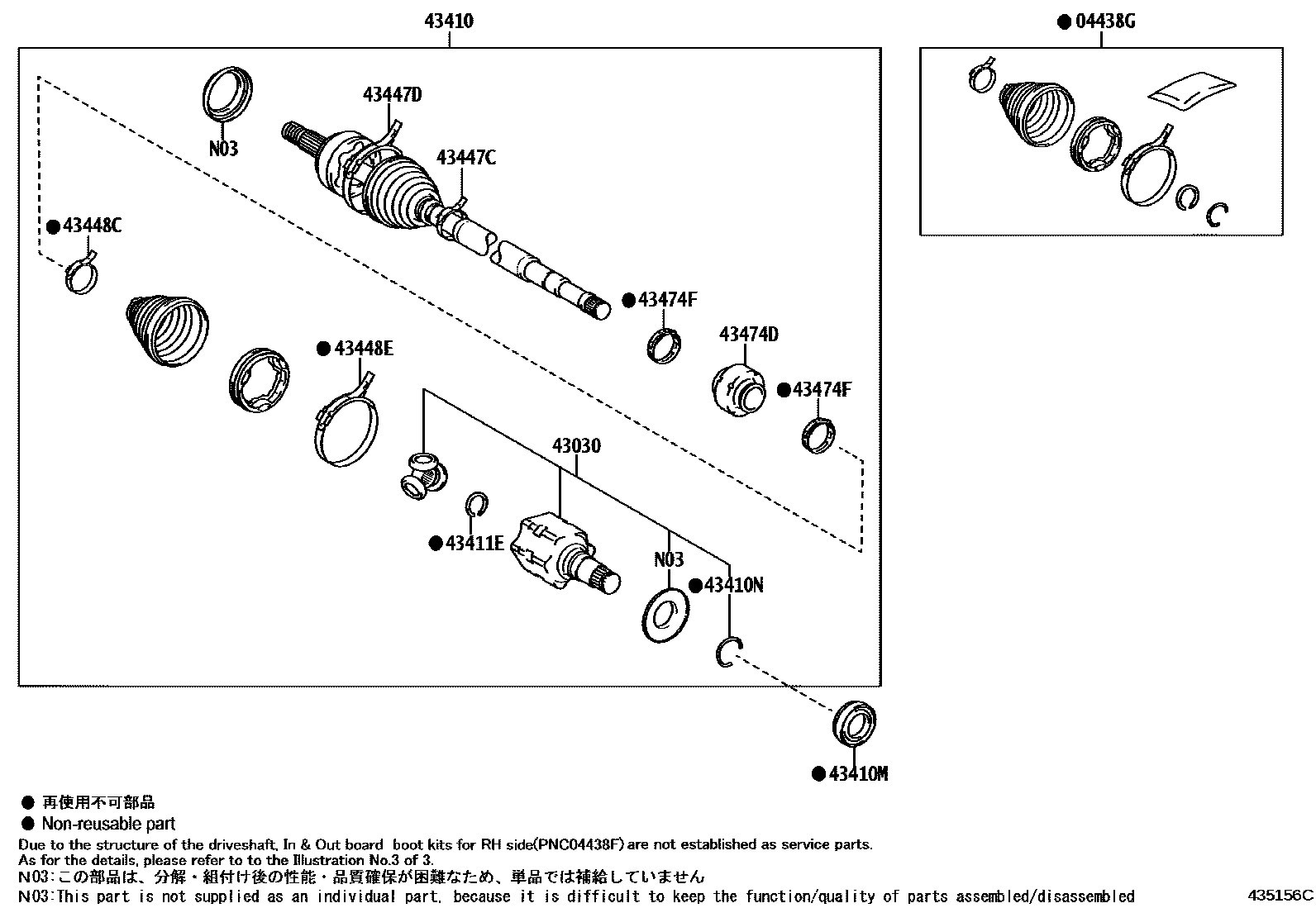

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47033iZVW60¥4,150202212-202405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-12160iMXWH61,ZVW60¥13,000202212

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-76020iMXWH61,ZVW60¥50,200202212

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40051iMXWH61,ZVW60¥470202212

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iMXWH61,ZVW60¥100202212

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iMXWH61,ZVW60¥40202212

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iMXWH61,ZVW60¥220202212

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iMXWH61,ZVW60¥340202212

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iMXWH61,ZVW60¥220202212

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iMXWH61,ZVW60¥330202212

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iMXWH61,ZVW60¥4,230202212

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iMXWH61,ZVW60¥180202212

12 parts on this diagram · 3 diagrams in section
