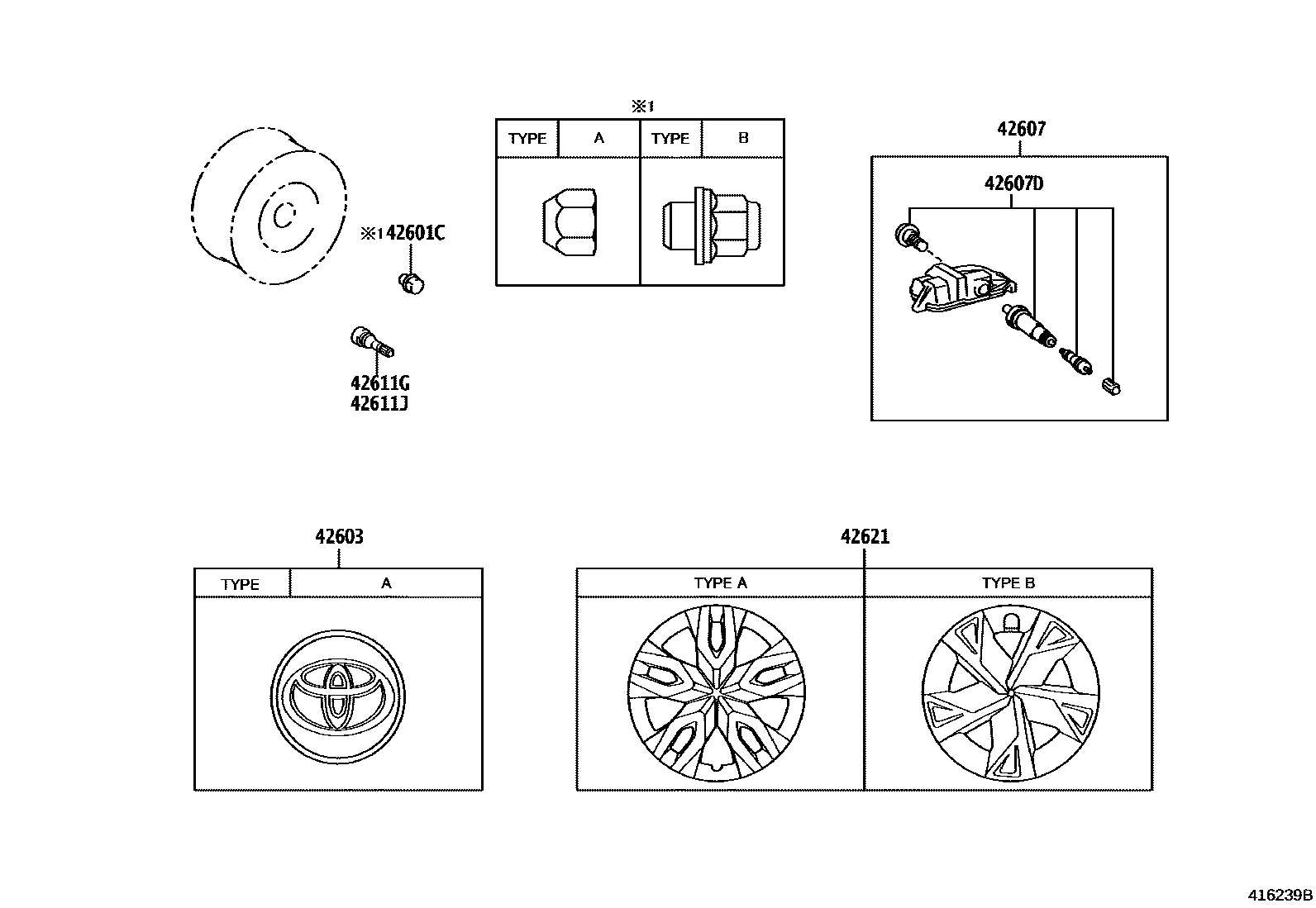

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-47641×4i202212

17X6.5J, #,TYPE C:REFER ILLUST.

main42611-47661×4supersedes 42611-47541i202303

17X6.5J, #,TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL,TYPE D:REFER ILLUST.

main42611-47381×4i202303

19X6.5J, #,TAIWAN SPEC,TYPE A:REFER ILLUST.

main42611-47651×4i202303

17X6.5J, #,ISRAEL SPEC&TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL,TYPE D:REFER ILLUST.

main42611-47701×4i202303

17X6.5J, #,TAIWAN SPEC&TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×20i202212

TYPE A:REFER ILLUST.

main90942-01131×20i202303

TYPE B:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42170×4i202303

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-47010×4i202212

main42607-47020×4i202303

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05047×4i202212

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i202212

MONGOLIA SPEC&

42611JVALVE (FOR TUBELESS TIRE SPARE)

SPARE TIRE-TEMPORARY TIRE(REINFORCEMENT)

42621CAP, WHEEL

main42602-47310×4i202212

TYPE A:REFER ILLUST.

main42602-47320×4i202303

TIRE & DISC WHEEL-195/60R17 6.5J SUMMER TIRE ALUMI WHEEL,TYPE B:REFER ILLUST.

8 parts on this diagram · 3 diagrams in section
