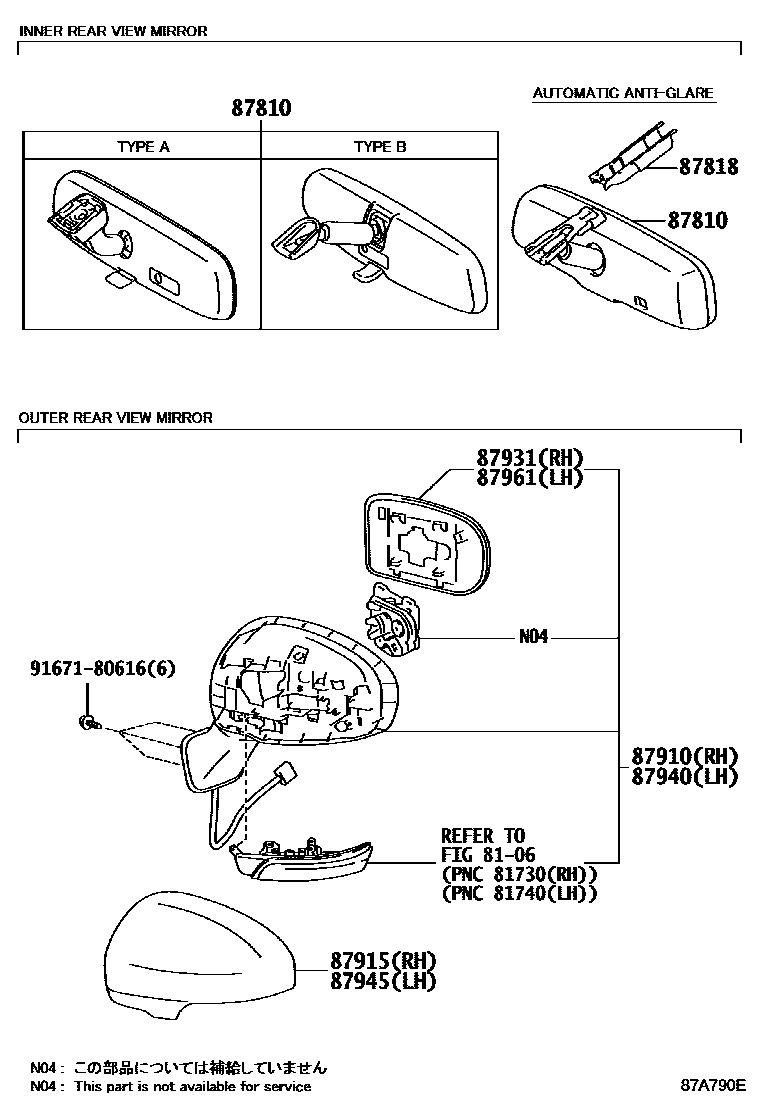

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
EXPORT UPPER PACKAGE
87818COVER, INNER RR VIEW MIRROR
EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN&AUDIO-*DA*BT USB JBL 8SPEAKER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,INDIA SPEC
NO PAINT REQ.,INDIA SPEC
87915COVER, OUTER MIRROR, RH
PAINT REQ.
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DEEP RED M.M.,3R9
BEIGE ME.,4T8
DK.BLUE MC.,8T5
ABYSS GRAY ME.,8V1
DK.BLUE MC.,8S6
87931OUTER MIRROR, RH
INDIA SPEC
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,INDIA SPEC
NO PAINT REQ.,INDIA SPEC
87945COVER, OUTER MIRROR, LH
PAINT REQ.
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK,202
RED M.M.,3R3
DEEP RED M.M.,3R9
BEIGE ME.,4T8
DK.BLUE MC.,8T5
ABYSS GRAY ME.,8V1
DK.BLUE MC.,8S6
87961MIRROR OUTER, LH
INDIA SPEC
9167180616
main91671-80616
10 parts on this diagram · 2 diagrams in section
