SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WV50×2supersedes 86160-47110iZVW30..LHD201112-201508

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86160-47110×2iZVW30..LHD200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86160-47190×2supersedes 86160-58240iZVW30..LHD201509

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

86160BSPEAKER ASSY, REAR

main86160-0WV60×2supersedes 86160-22A10iZVW30..LHD201112-201508

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

sub86150-62110

main86160-22A10×2iZVW30..ARL,EUR200904-201106

main86160-47210×2supersedes 86160-52300iZVW30..LHD201509

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86160-52300×2iZVW30..ARL,EUR201107-201112

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV70×2supersedes 86160-47100iZVW30..LHD201112-201508

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86160-47070×2iZVW30..EUR200904-201005

main86160-47100×2iZVW30..LHD200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86160-47200×2supersedes 86160-47070iZVW30..LHD201509

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86160-68070×2iZVW30..EUR201005-201112

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX10×2supersedes 86160-47130iZVW30..LHD201112-201509

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

main86160-47130×2iZVW30..LHD200904-201112

AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER

main86160-47230×2iZVW30..LHD201510-201511

AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER

90105T0014

main90105-T0014

9016840061

main90168-40061

9026905034

main90269-05034

9151560616

main91515-60616

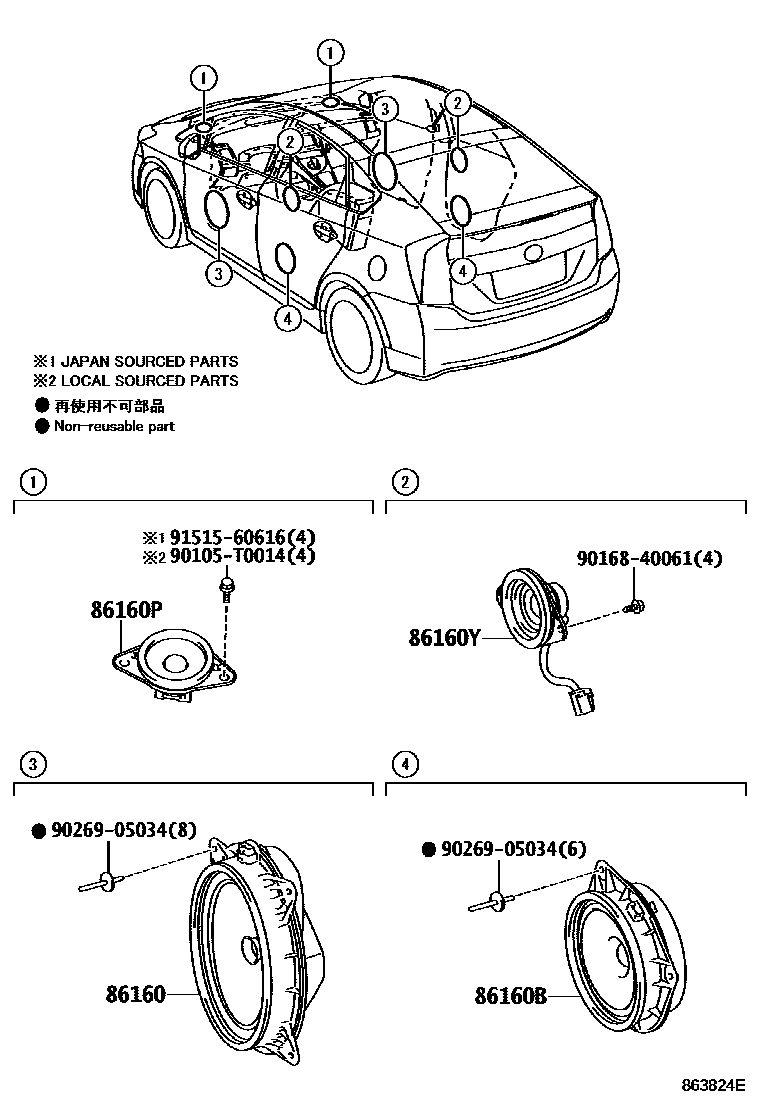

8 parts on this diagram · 1 diagram in section
