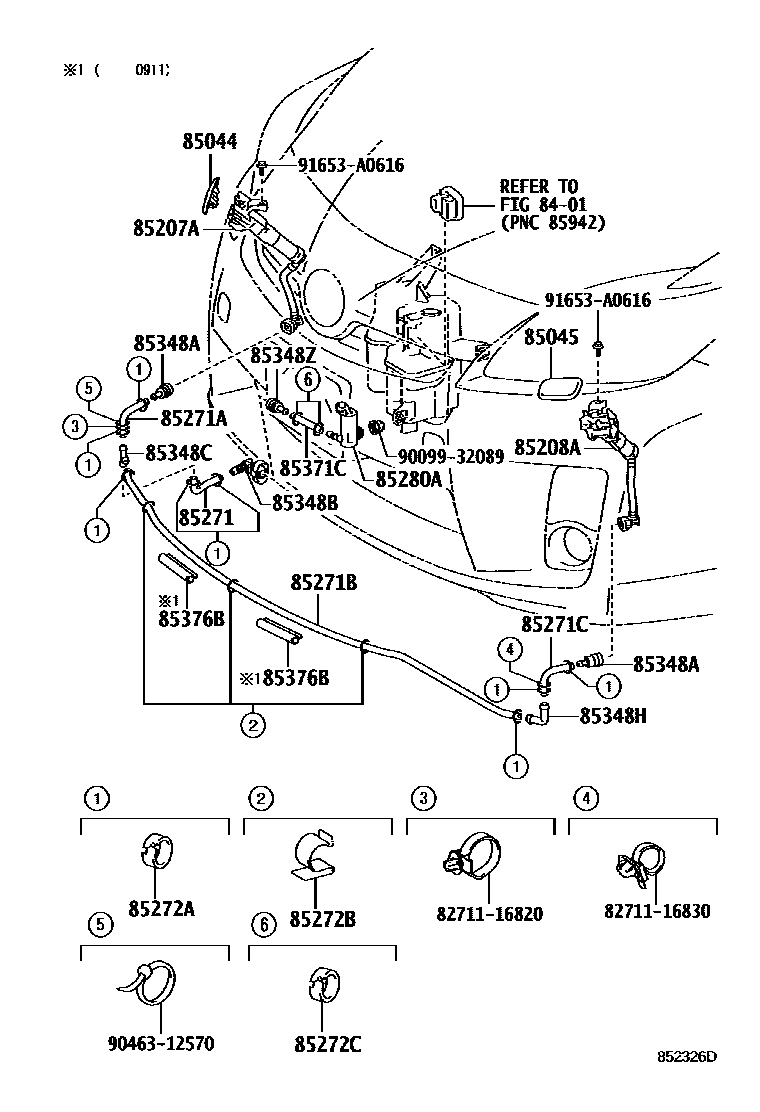

HEADLAMP CLEANER

8401

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

85271HOSE, HEADLAMP CLEANER, NO.1

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85271CHOSE, HEADLAMP CLEANER, NO.4

85272ACLAMP, HEADLAMP CLEANER, NO.1

85272BCLAMP, HEADLAMP CLEANER, NO.2

85272CCLAMP, HEADLAMP CLEANER, NO.3

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

85371CHOSE, HEADLAMP CLEANER, NO.1

85376BPROTECTOR, HEADLAMP CLEANER HOSE, NO.3

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9009932089

9046312570

91653A0616

25 parts on this diagram · 3 diagrams in section
