WINDSHIELD WIPER

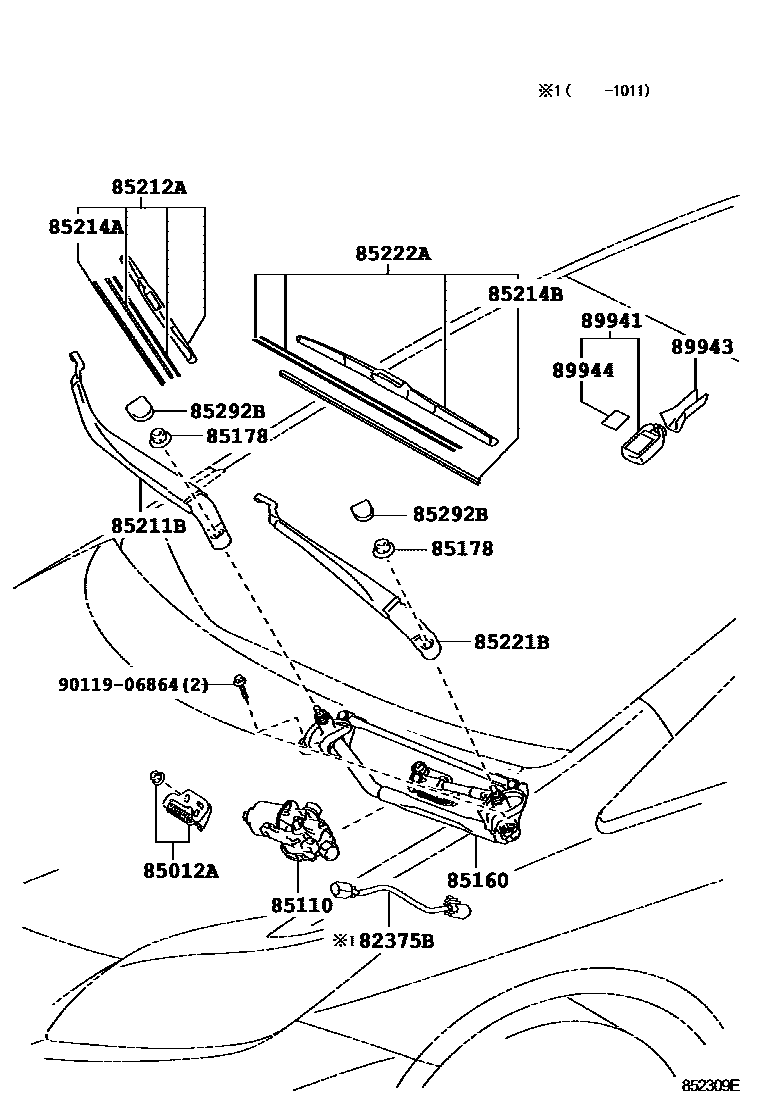

Parts diagram

82375BWIRE, WIPER MOTOR

main82375-47010i200904-201011

main82375-47020i200904-201011

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010i200904-201112

main85012-58030i200904-201112

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47100i200904-201003

main85110-47110i200904-201003

main85110-47120i200904-201003

main85110-47190i201003-201112

main85110-47200i201112

main85110-47210i201003-201112

85160LINK ASSY, WINDSHIELD WIPER

main85150-47110i200904-201011

main85150-47111i201112

main85150-47120i200904-201011

main85150-47121i201012-201204

main85150-47130i200904-201011

main85150-47131i201112

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2i201204-201207

main90182-10006×2i201207

85211BARM, FRONT WIPER, RH

main85211-47090i201112

main85211-47110i200904-201112

main85211-47120i200904-201107

main85211-47121i201204

85212ABLADE, FR WIPER, RH

main85212-47030i201112

main85212-68050i201012-201204

85214ARUBBER, WIPER, RH

main85214-28090i200904-201112

main85214-68020i201012-201204

85214BRUBBER, WIPER, LH

main85214-28090i201204

main85214-68020i200904-201112

85221BARM, FRONT WIPER, LH

main85221-47080i201112

main85221-47100i200904-201112

main85221-47101i201112

85222ABLADE, FR WIPER, LH

main85222-28180i201112

main85222-75010i200904-201010

main85222-75011i201011-201112

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2i201204

89941SENSOR, RAIN

main89941-42010i201012-201204

89943COVER, RAIN SENSOR

main89943-47010i200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER

89944TAPE, RAIN SENSOR

main89944-42010i200904-201112

WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER

9011906864

main90119-06864

16 parts on this diagram · 2 diagrams in section
