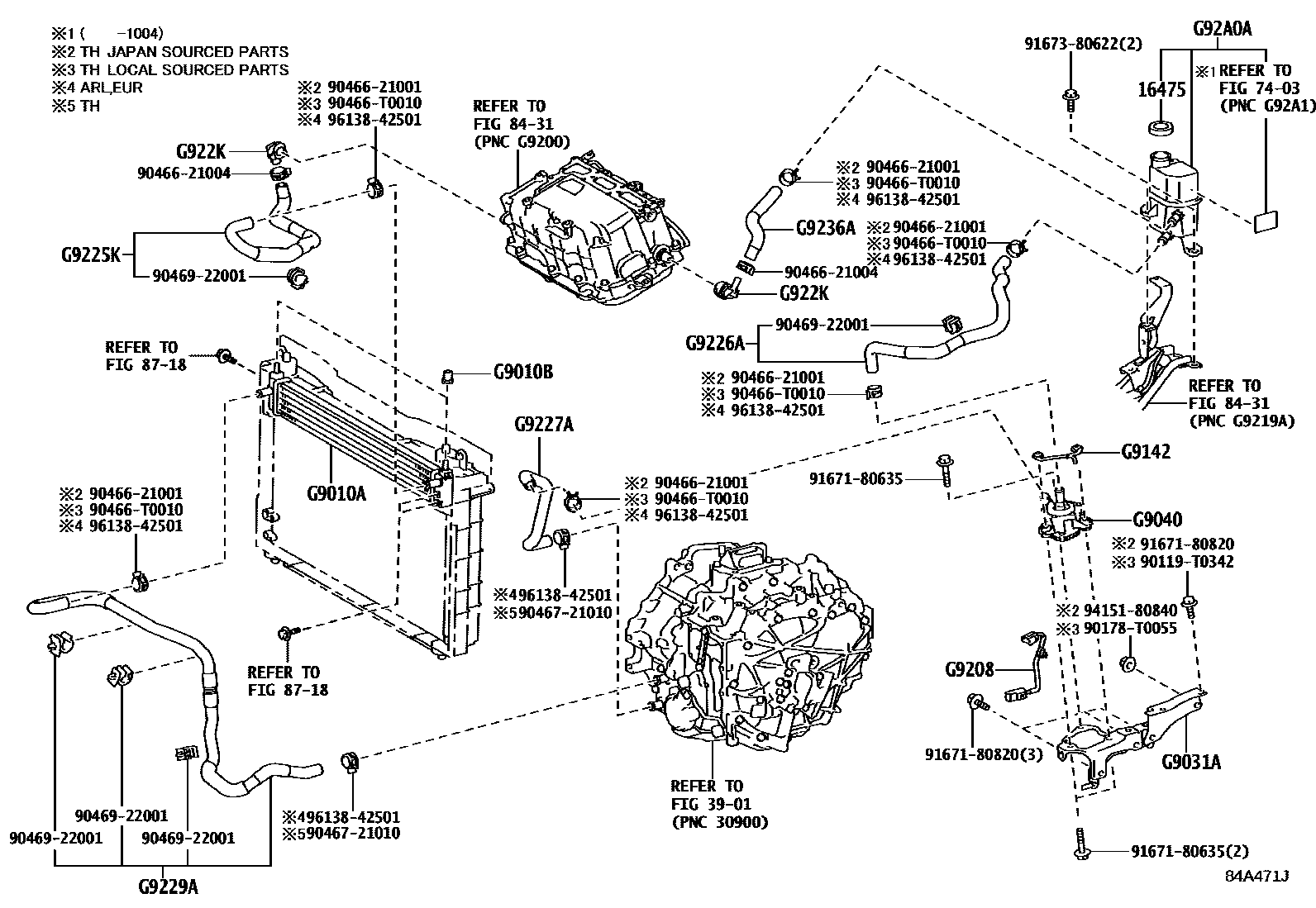

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-37010i2ZRFXE..ZVW30..ARL,EUR201112-201409

sub16475-28140

main16475-37011i2ZRFXE..ZVW30..TH201410

sub16475-28140

main16475-51010i2ZRFXE..ZVW30..ARL,EUR200904-201110

sub16475-28140

3901

7403

8431

8718

G9010ARADIATOR ASSY

mainG901047030iZVW30200904-201003

mainG901047031iZVW30..ARL,EUR201003-201112

mainG901047032iZVW30..TH201505-201510

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iZVW30..TH201012-201204

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZVW30..ARL,EUR200904-201112

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047090iZVW30..TH201108-201204

mainG904048020iZVW30..ARL,EUR200904-201102

mainG904052010iZVW30..TH201210

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZVW30..TH201204

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZVW30..ARL,EUR200904-201112

G9225KHOSE, INVERTER COOLING, NO.1

mainG92250Q010iZVW30..TH201204

mainG922547021iZVW30..ARL,EUR201112

G9226AHOSE, INVERTER COOLING, NO.2

mainG92260Q010iZVW30..TH201204

mainG922647020iZVW30..ARL,EUR200904-201112

G9227AHOSE, INVERTER COOLING, NO.3

mainG92270Q010iZVW30..TH201204-201510

mainG922747020iZVW30..ARL,EUR200904-201112

G9229AHOSE, INVERTER COOLING, NO.5

mainG92290Q010iZVW30..TH201204-201510

mainG922947020iZVW30..ARL,EUR200904-201112

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011×2iZVW30..ARL,EUR200904-201112

G9236AHOSE, INVERTER COOLING, NO.6

mainG92360Q010iZVW30..TH201204

mainG923647031iZVW30..TH201012-201204

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A047010iZVW30..ARL,EUR201112-201409

mainG92A047011iZVW30..ARL,EUR201410

90119T0342

main90119-T0342

90178T0055

main90178-T0055

9046621001

main90466-21001

9046621004

main90466-21004

90466T0010

main90466-T0010

9046721010

main90467-21010

9046922001

main90469-22001

9167180635

main91671-80635

9167180820

main91671-80820

9167380622

main91673-80622

9415180840

main94151-80840

9613842501

main96138-42501

30 parts on this diagram · 1 diagram in section
