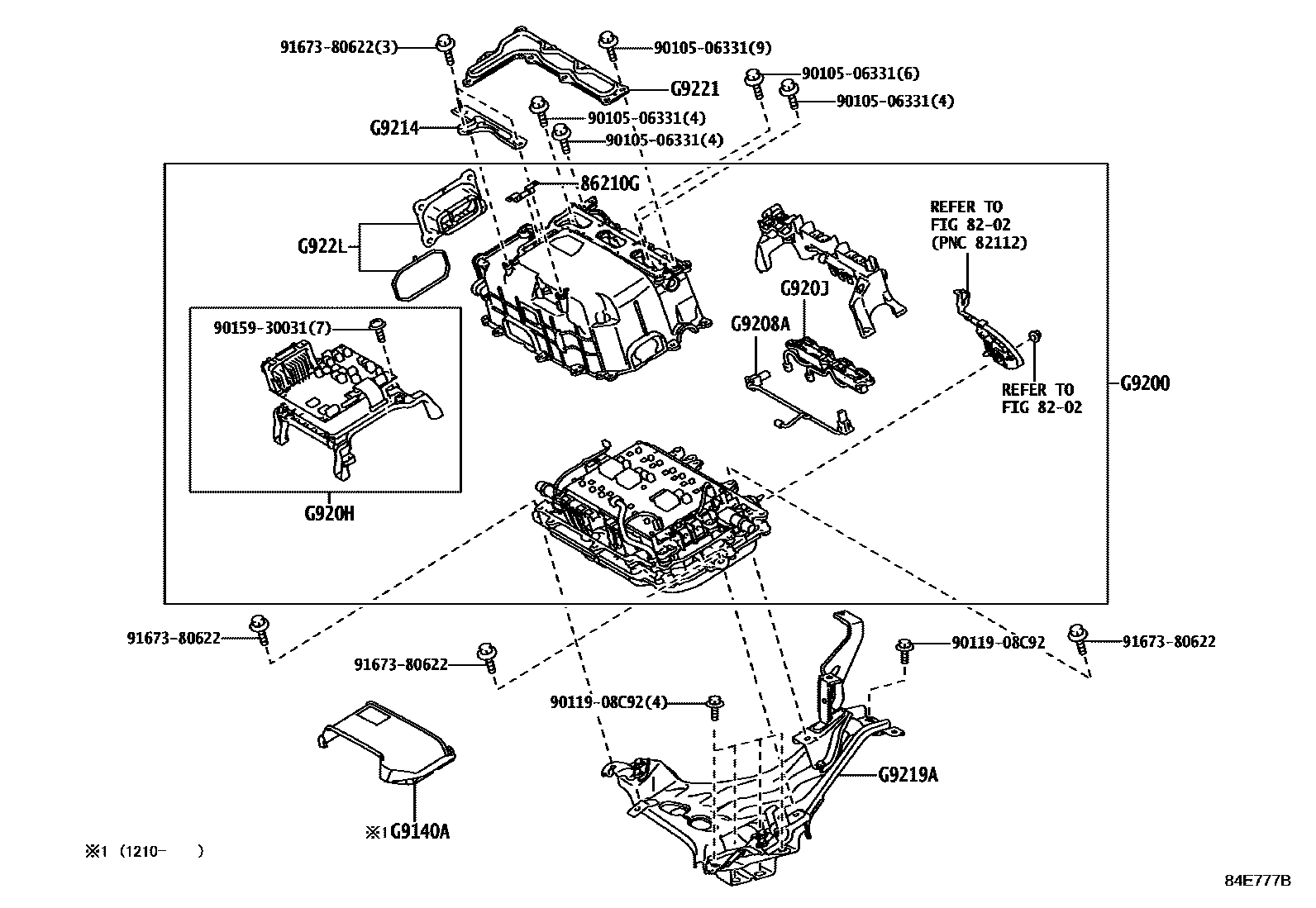

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1 0004 1

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iZVW30..ARL,EUR200904-201511

G9140ACOVER ASSY, INVERTER, LH

mainG914047010iZVW30..ARL,EUR201210

G9200INVERTER ASSY, W/CONVERTER

mainG920049025iZVW30..ARL,EUR201108-201510

mainG920049065iZVW30..ARL,EUR201401-201403

subG9200-49075

mainG920049075iZVW30..ARL,EUR201404-201511

mainG92A047030iZVW30..ARL,EUR200904-201107

subG92A0-47031

mainG92A047031iZVW30..TH201108-201209

subG9200-49015

mainG92A047040iZVW30..ARL,EUR201112-201203

subG9200-49025

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZVW30..ARL,EUR200904-201511

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZVW30..ARL,EUR200904-201511

subG920H-47150

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZVW30..ARL,EUR200904-201511

G9214BRACKET, INVERTER, NO.1

mainG921447050iZVW30..TH200904-201308

subG9214-47060

mainG921447060iZVW30..ARL,EUR201309

G9219ABRACKET, INVERTER TRAY

mainG911047010iZVW30200904-200910

subG9110-47011

mainG911047011iZVW30..ARL,EUR200911-201309

subG9110-47030

mainG911047030iZVW30..ARL,EUR201309-201511

G9221COVER, INVERTER

mainG902247041iZVW30..TH200904-201204

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZVW30..ARL,EUR200904-201511

9010506331

main90105-06331

9011908C92

main90119-08C92

9015930031

main90159-30031

9167380622

main91673-80622

15 parts on this diagram · 4 diagrams in section
