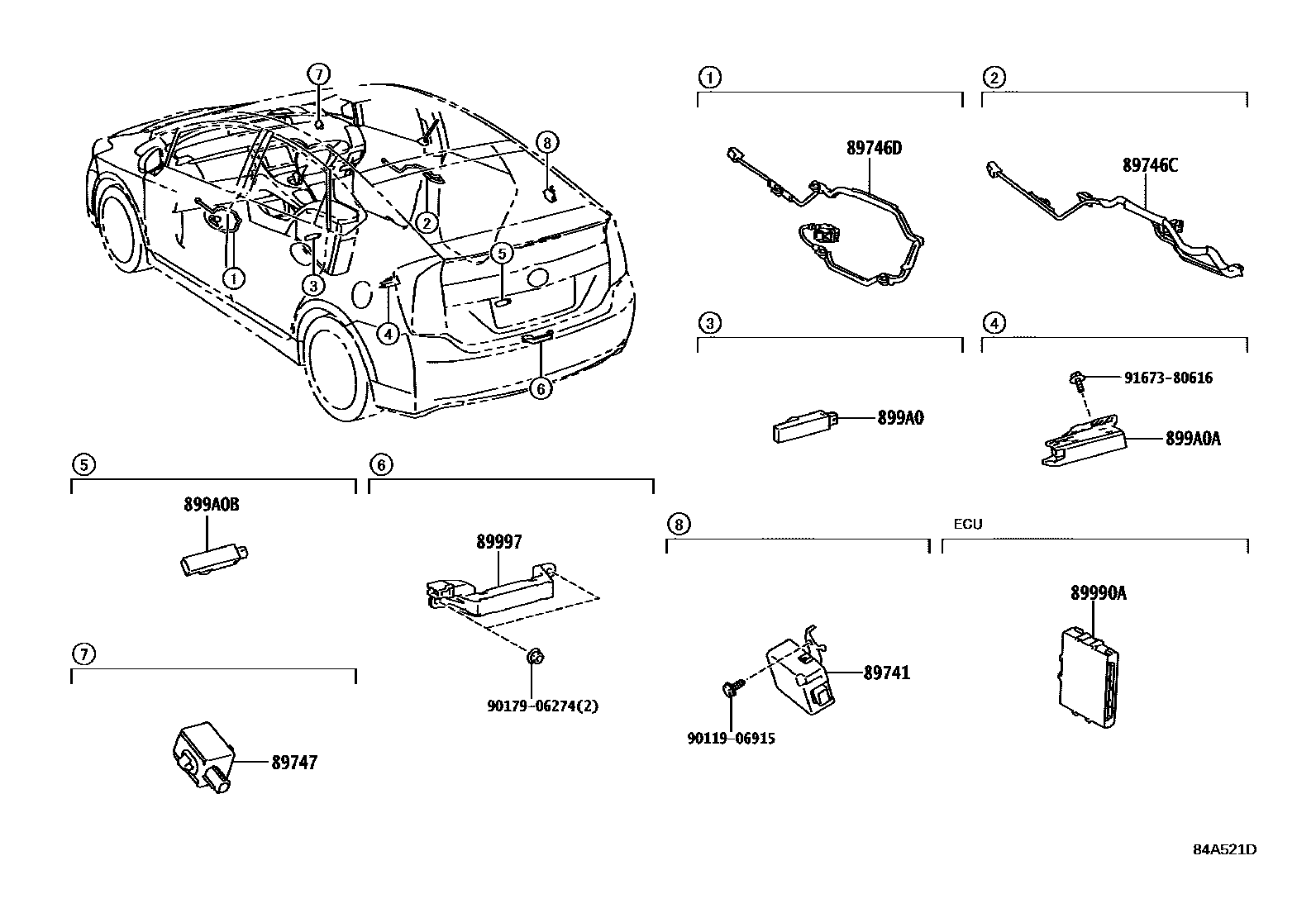

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-47030i200904-201010

main89740-47031i201204

main89740-47050i200904-201105

P/N LABEL=8974047050

sub89740-47051

main89740-47140i201105-201107

TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),P/N LABEL=8974047140

sub89740-47141

main89740-47040i201112

HONG KONG SPEC&MOON ROOF-WITH(SOLAR PANEL)&SMART ENTRY-W(FRONT & BACK DOOR)

main89740-47150i201105-201107

HONG KONG SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK),P/N LABEL=8974047150

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-47040i200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-47050i201112

SMART ENTRY-W(FRONT & BACK DOOR)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201112-201511

89990ACOMPUTER ASSY, SMART KEY

main89990-47060i201012-201105

main89990-47061i201106-201112

TAIWAN SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main89990-47062supersedes 89990-47051i201206-201510

sub89990-47063

main89990-47140i201011-201112

JORDAN SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT) FOR JORDAN

sub89990-47141

main89990-47150i201112-201511

JORDAN SPEC&SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN

sub89990-47151

89997ANTENNA, ELECTRICAL KEY

main89997-30070i200904-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010i201112

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020i201012-201204

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010i201012-201204

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
