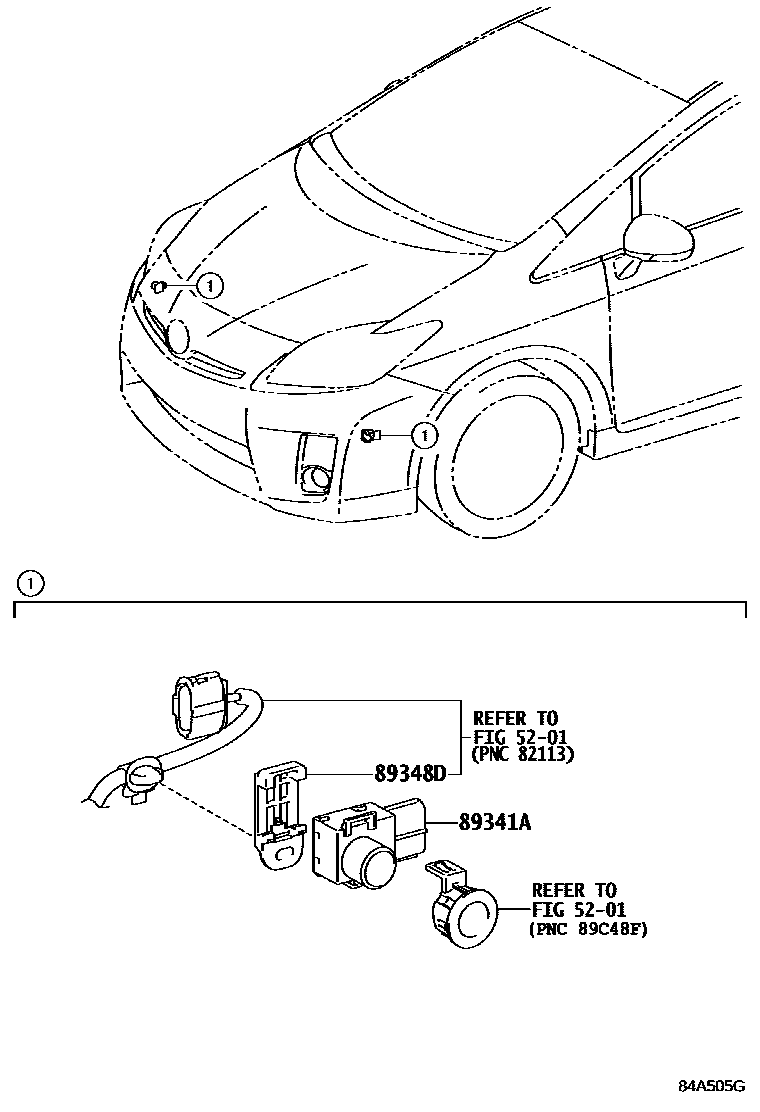

CLEARANCE & BACK SONAR

5201

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER,WHITE PEARL CS.,070

main89341-28480-A1×2i200904-201112

HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER,SUPER WHITE 2,040

main89341-28480-B1×2i201112-201511

HEADLAMP-LED&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,SILVER ME.,1F7

main89341-28480-C0×2i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER,BLACK,202

main89341-28480-D1×2i201112-201511

HEADLAMP-LED&AUDIO-AVN(FOR AUSTRALIA) *BT USB JBL 8SPEAKER,RED M.M.,3R3

main89341-28480-D3×2i201112-201511

AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,DEEP RED M.M.,3R9

main89341-28480-E1×2i200904-201112

TAIWAN SPEC&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER,BEIGE ME.,4T8

main89341-28480-J0×2i201112-201511

HEADLAMP-LED&AUDIO-AVN(FOR AUSTRALIA) *BT USB JBL 8SPEAKER,DK.BLUE MC.,8S6

main89341-28480-J2×2i200904-201112

AUDIO-AVN,BLUETOOTH,8SPEAKER,DK.BLUE MC.,8T5

main89341-28480-J4×2i201112-201511

TAIWAN SPEC&HEADLAMP-LED&AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ABYSS GRAY ME.,8V1

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2i201112-201511

TAIWAN SPEC&HEADLAMP-LED&AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN

3 parts on this diagram · 1 diagram in section
