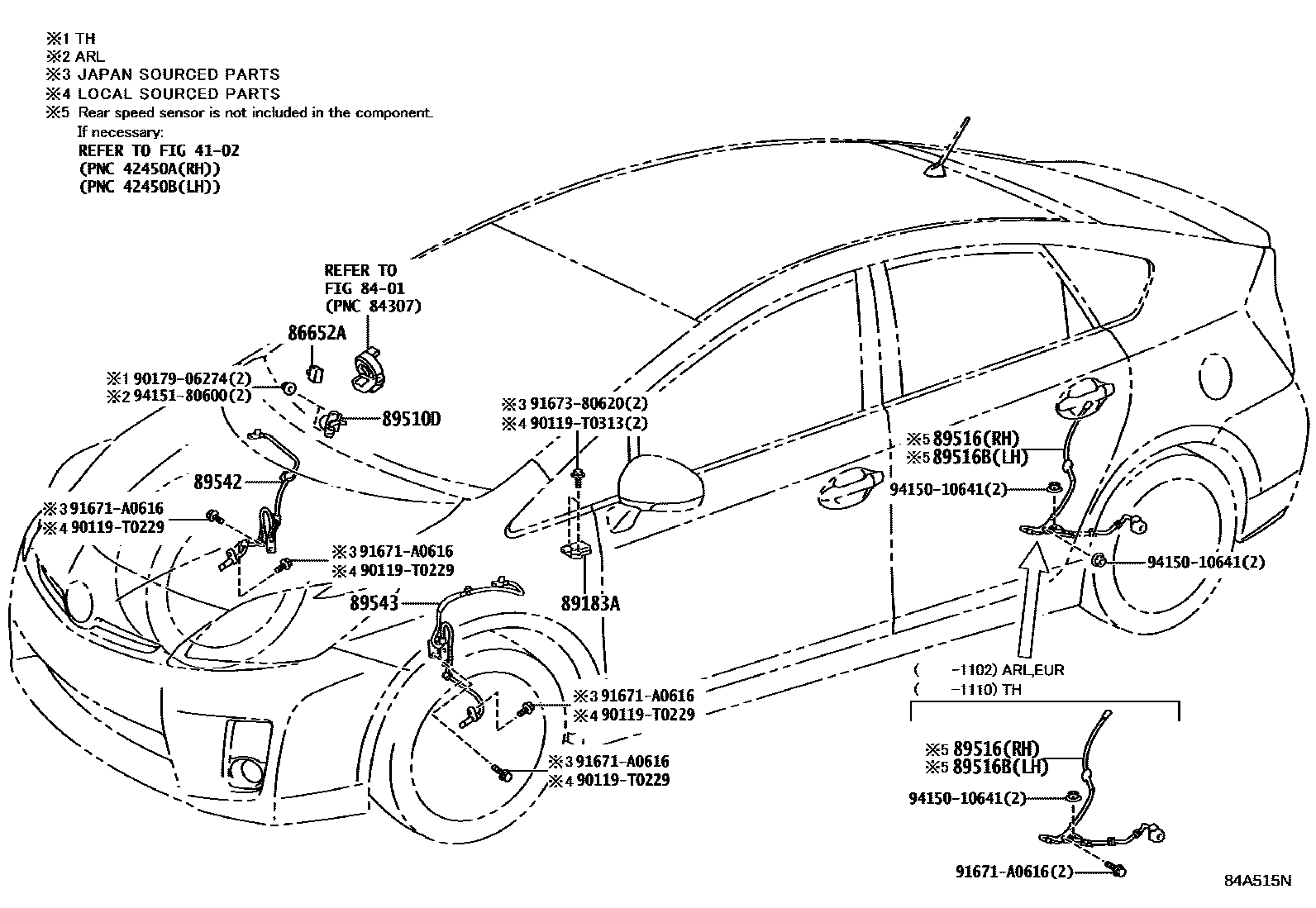

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZVW30..ARL,EUR200904-201204

89183ASENSOR, YAWRATE

main89183-48030iZVW30..ARL,EUR200904-201204

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041iZVW30..TH201112-201511

main89510-47010iZVW30..LHD200904-201112

main89510-47020iZVW30..RHD..(ARL,EUR)200904-201204

main89510-47050iZVW30..LHD201112-201511

89516WIRE, SKID CONTROL SENSOR

main89516-47070iZVW30..ARL,EUR200904-201110

main89516-47090iZVW30..ARL,EUR201102-201511

89516BWIRE, SKID CONTROL SENSOR

main89516-47080iZVW30..ARL,EUR200904-201110

main89516-47100iZVW30..ARL,EUR201102-201511

89542SENSOR, SPEED, FRONT RH

main89542-47030iZVW30..TH200904-201204

89543SENSOR, SPEED, FRONT LH

main89543-47030iZVW30..ARL,EUR200904-201204

90119T0229

main90119-T0229

90119T0313

main90119-T0313

9017906274

main90179-06274

91671A0616

main91671-A0616

9167380620

main91673-80620

9415010641

main94150-10641

9415180600

main94151-80600

16 parts on this diagram · 2 diagrams in section
