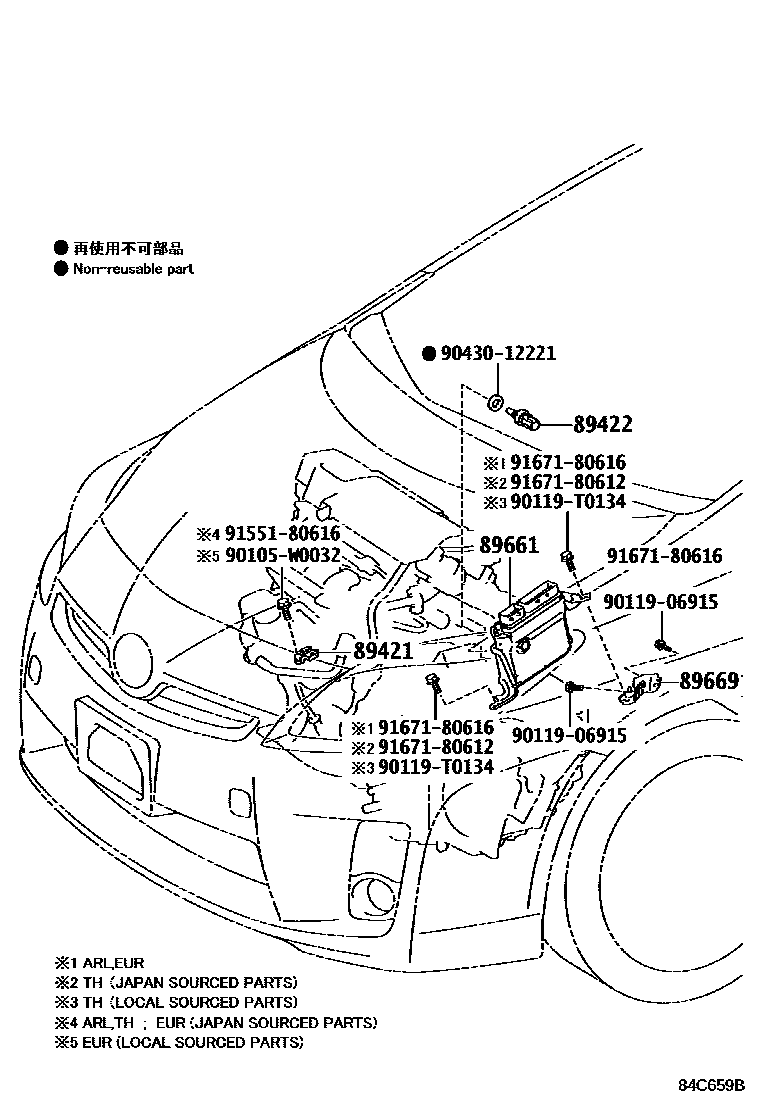

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW30..ARL,EUR200911-201204

main89421-52010iZVW30200904-200910

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW30..ARL,EUR200904-201204

89661COMPUTER, ENGINE CONTROL

main89660-47320iZVW30200904-201011

main89660-47450iZVW30..ARL,EUR201011-201112

main89660-47460iZVW30..TH201012-201204

sub89660-47461

main89660-47530iZVW30..ARL,EUR201112-201304

sub89660-47670

main89660-47640iZVW30..TH201204-201305

sub89660-47641

main89660-47641iZVW30..TH201306

sub89660-47642

main89660-47670iZVW30..ARL,EUR201305

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW30..ARL,EUR200904-201204

90105W0032

main90105-W0032

9011906915

main90119-06915

90119T0134

main90119-T0134

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9167180616

main91671-80616

11 parts on this diagram · 1 diagram in section
