SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0004 1ENGINE ROOM 0006 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0010 1COWL 0012 1COWL 0013 1COWL 0015 1COWL 0016 1INSTRUMENT PANEL 0018 1INSTRUMENT PANEL 0019 1INSTRUMENT PANEL 0021 1INSTRUMENT PANEL 0022 1STEERING 0023 1DOOR,ROOF,FLOOR & BACK DOOR 0024 1DOOR,ROOF,FLOOR & BACK DOOR

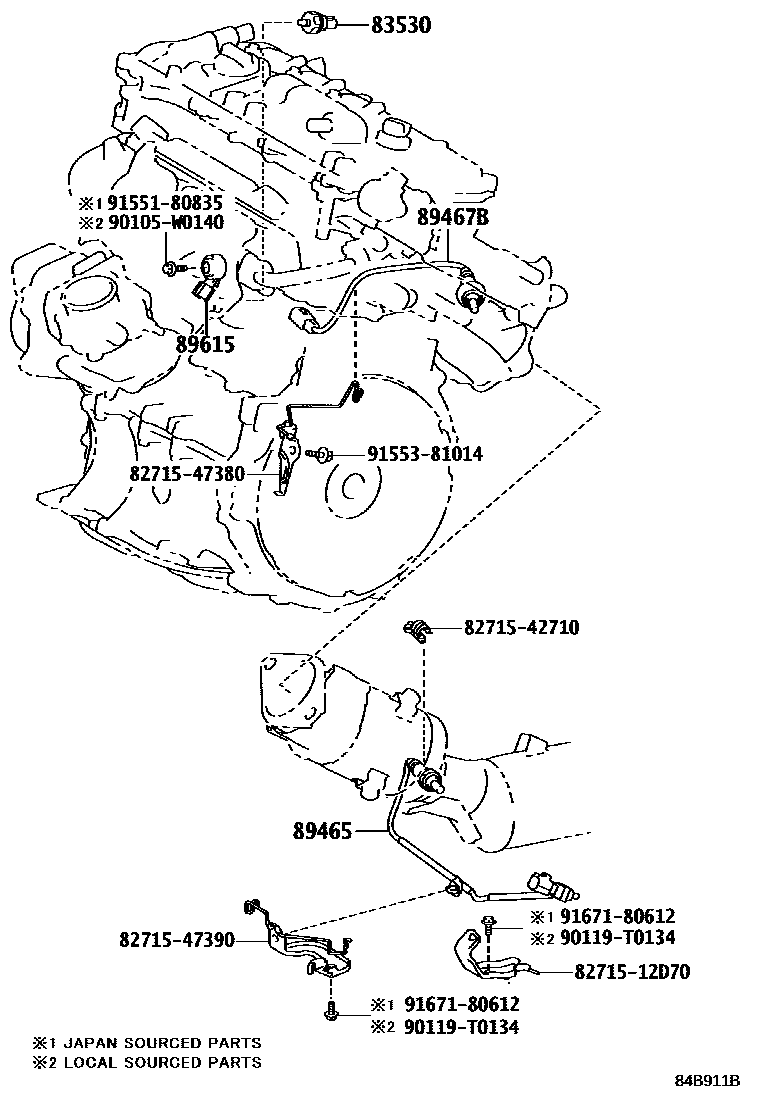

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZVW30..TH201310-201402

YAZAKI

main83530-12060iZVW30..ARL,EUR201402

YAZAKI

main83530-12070iZVW30..ARL,EUR201402

DENSO

main83530-28020iZVW30..TH201204

ENGINE-2ZR-FXE(MADE IN UK),(J)

main83530-60020iZVW30..TH201204-201310

YAZAKI

main83530-05010iZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(L)

89465SENSOR, OXYGEN

main89465-47080iZVW30..TH201204

89467BSENSOR, AIR FUEL RATIO

main89467-47020iZVW30200904-201011

main89467-52060iZVW30..TH201012-201204

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW30..ARL,EUR200904-201112

main89615-02020iZVW30..EUR201204

ENGINE-2ZR-FXE(MADE IN UK),(L)

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

90105W0140

main90105-W0140

90119T0134

main90119-T0134

9155180835

main91551-80835

9155381014

main91553-81014

9167180612

main91671-80612

13 parts on this diagram · 16 diagrams in section
