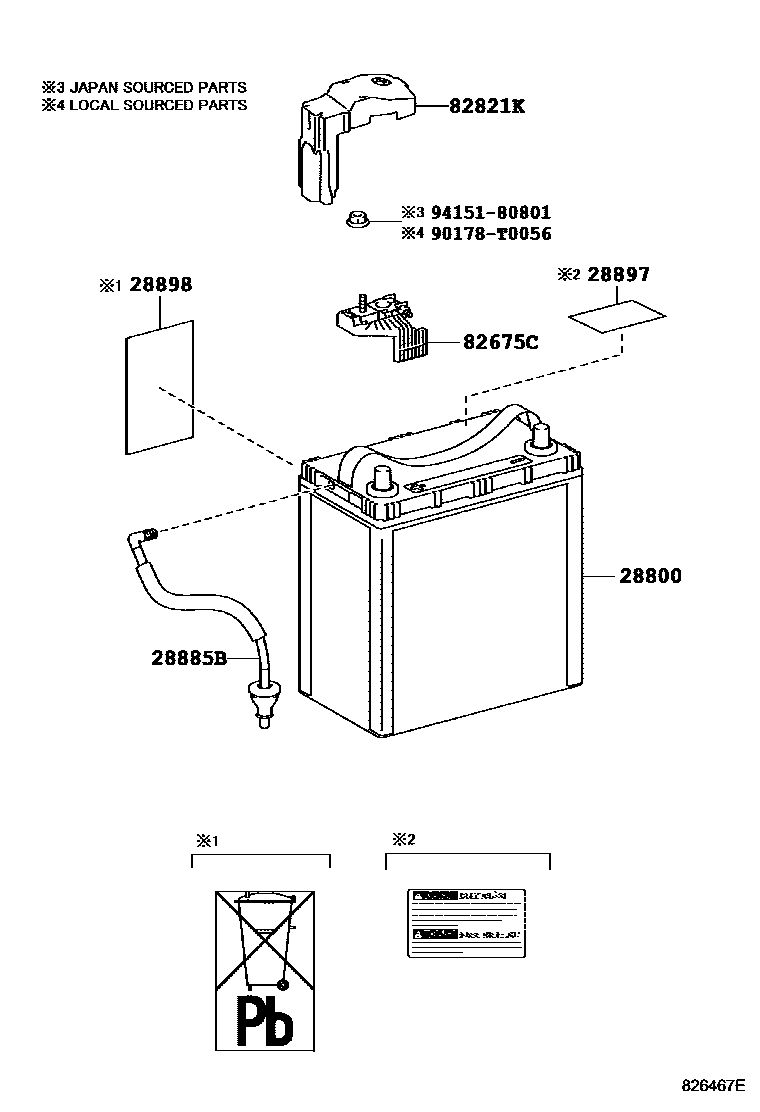

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY

28800BATTERY

main28800-21170i2ZRFXE..ZVW30..ARL,EUR200904-201101

S46B24R

main28800-21171i2ZRFXE..ZVW30..ARL,EUR201102-201112

S46B24R

sub28800-21172

main28800-28240i2ZRFXE..ZVW30..LHD201407-201409

S46B24R,BRAZIL SPEC,GS YUASA

main28800-28241i2ZRFXE..ZVW30..LHD201409-201511

S46B24R,BRAZIL SPEC

sub28800-28242

28885BHOSE, BATTERY

main28885-37010i2ZRFXE..ZVW30..ARL,EUR200904-201112

main28885-37060i2ZRFXE..ZVW30..ARL,EUR201205

28897PLATE, BATTERY CAUTION

main28897-31040i2ZRFXE..ZVW30..LHD201112

RUSSIA SPEC

28898PLATE, BATTERY

main28898-16020i2ZRFXE..ZVW30..EUR200904-201112

82675CTERMINAL, JUNCTION

main82675-47160iZVW30..ARL,EUR200904-201112

82821KCOVER, CONNECTOR

main82821-47110iZVW30..ARL,EUR201112

90178T0056

main90178-T0056

9415180801

main94151-80801

8 parts on this diagram · 4 diagrams in section
