INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
SMART ENTRY-W(FRONT & BACK DOOR)FOR JORDAN/PAKISTAN
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#,2#,6#
MOON ROOF-WITH(SOLAR PANEL)&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER,LT.GRAY,TRIM1#,6#
MOON ROOF-WITH(SOLAR PANEL),LT.GRAY,TRIM1#,6#
ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AVN,BLUETOOTH,8SPEAKER,LT.GRAY,TRIM1#,6#
ENGLAND SPEC&AUDIO-CD,BLUETOOTH,8SPEAKER,LT.GRAY,TRIM1#,6#
MOON ROOF-WITH(SOLAR PANEL)&AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER,LT.GRAY,TRIM1#,2#,6#
ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL),LT.GRAY,TRIM1#,6#
ENGLAND SPEC,LT.GRAY,TRIM1#,6#
81260CBULB(FOR MAP LAMP)
12V 5W
81265CLENS, MAP LAMP, NO.1
ENGLAND SPEC&MOON ROOF-WITH(SOLAR PANEL)&AUDIO-CD,BLUETOOTH,8SPEAKER
81266DLENS, MAP LAMP, NO.2
MOON ROOF-WITH(SOLAR PANEL)
81340LAMP ASSY, VANITY
LT.GRAY,TRIM1#,6#
81340BBULB (FOR VANITY LAMP)
12V 8W
8202
8424
8603
8615
9046709240
main90467-09240
9046710161
main90467-10161

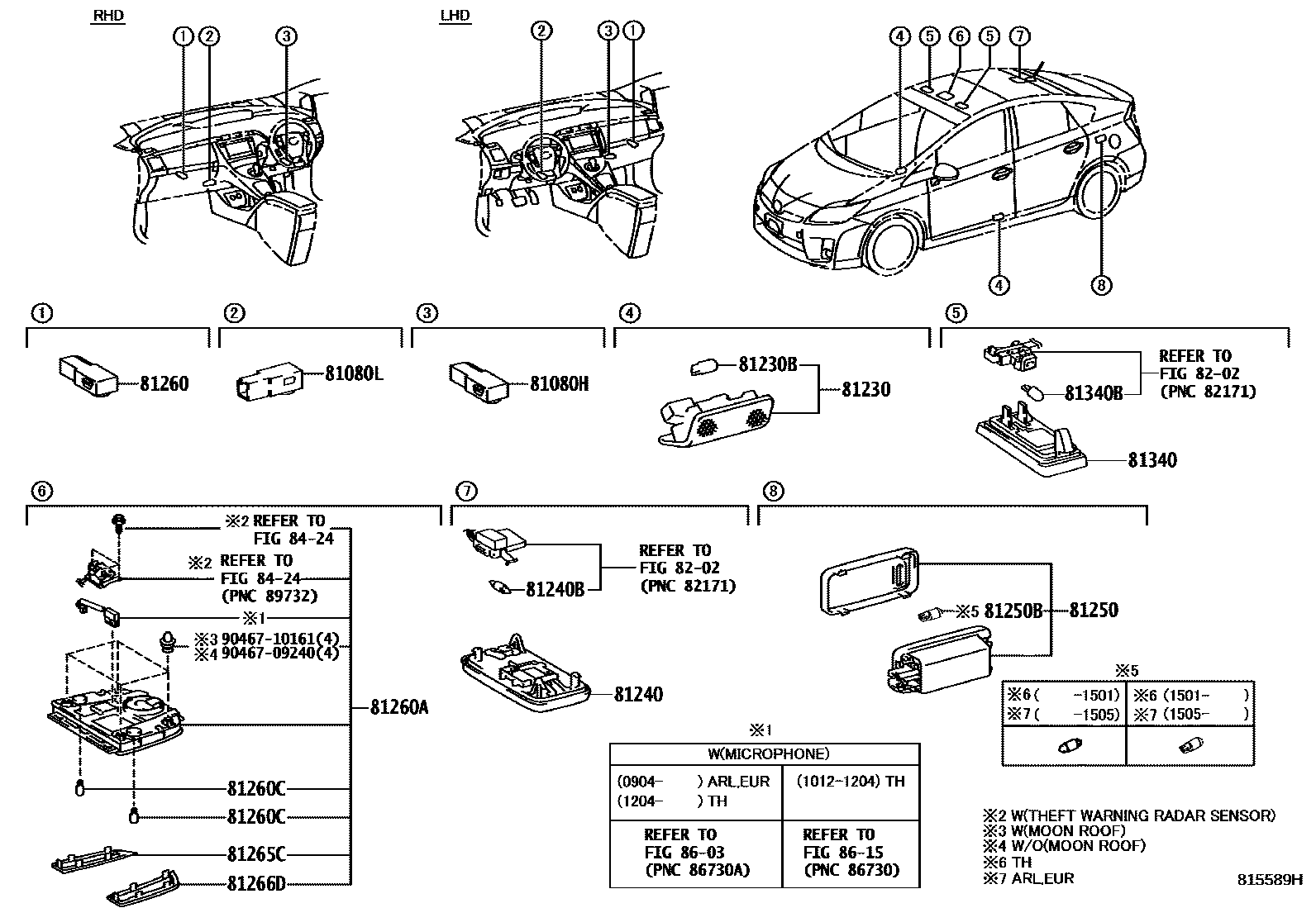

21 parts on this diagram · 1 diagram in section
