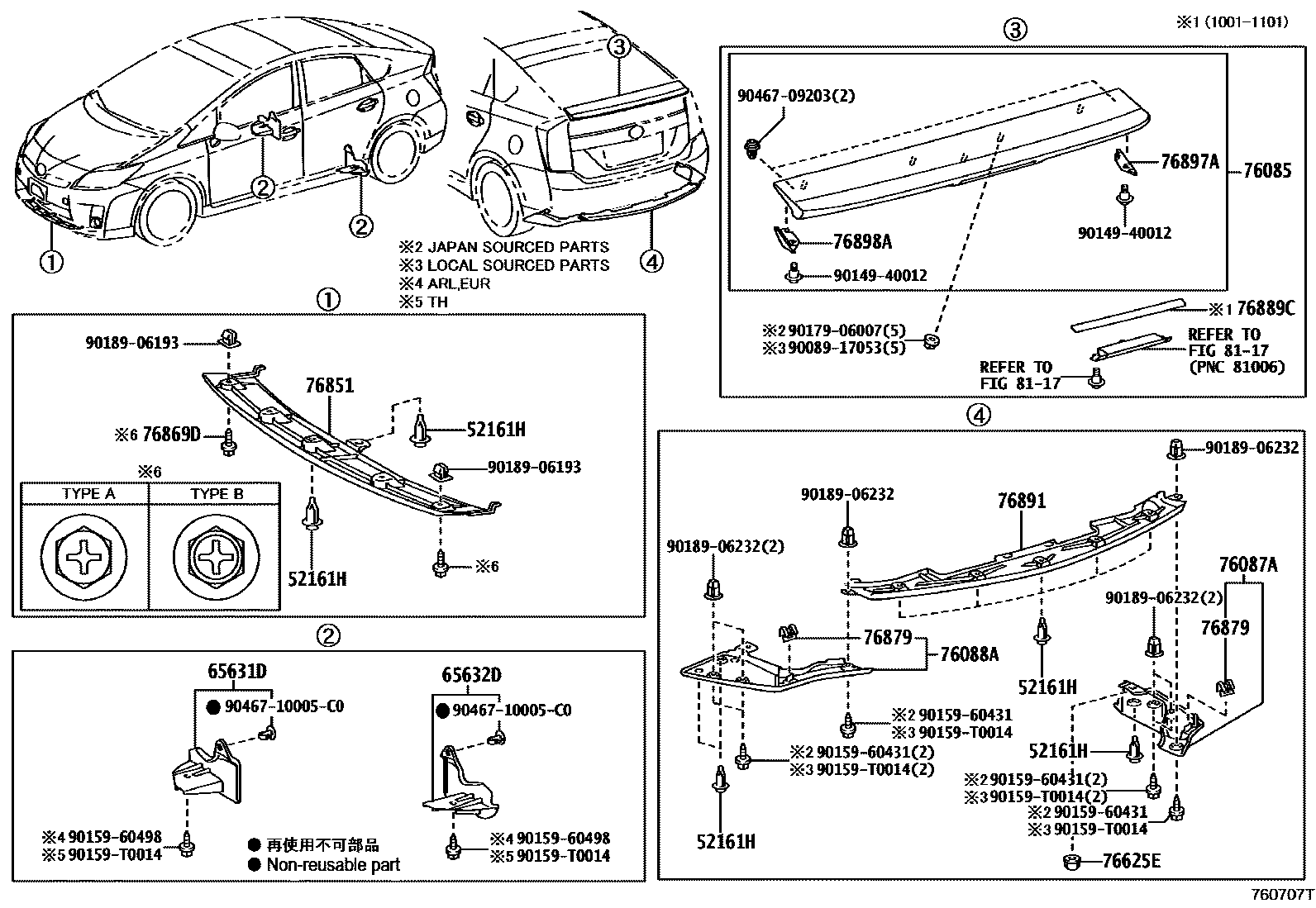

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
NO PAINT REQ.
NO PAINT REQ.
76087ASPOILER SUB-ASSY, REAR SIDE
76088ASPOILER SUB-ASSY, REAR SIDE
76851COVER, FRONT SPOILER
RUSSIA SPEC
ROUGH ROAD AREA SPEC
76869DSCREW, NO.2
RUSSIA SPEC
ROUGH ROAD AREA SPEC
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
76879CLIP, REAR SPOILER, NO.1
76889CADHESIVE, REAR SPOILER
76891SPOILER, REAR NO.1
76897ASPOILER,REAR SIDE RH
76898ASPOILER,REAR SIDE LH
8117
9008917053
main90089-17053
9014940012
main90149-40012
9015960431
main90159-60431
9015960498
main90159-60498
90159T0014
main90159-T0014
9017906007
main90179-06007
9018906193
main90189-06193
9018906232
main90189-06232
9046709203
main90467-09203
9046710005C0
main90467-10005C0
25 parts on this diagram · 1 diagram in section
