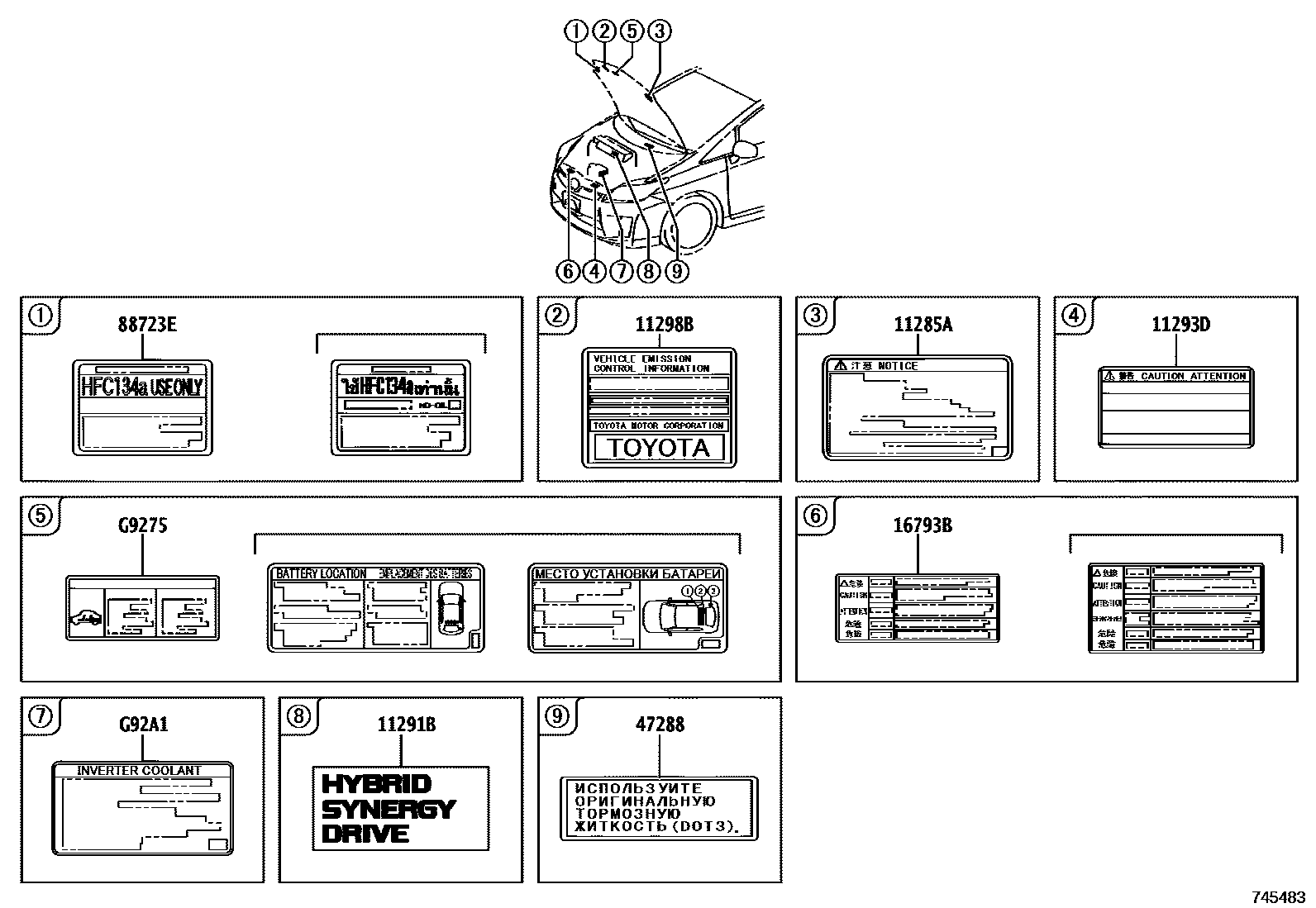

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR (1/2) 0003 1EXTERIOR (2/2) 0004 1INTERIOR 0005 1TURKEY SPEC

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-37040i2ZRFXE..ZVW30..ARL,EUR200904-201105

main11285-37060i2ZRFXE..ZVW30..TH201106-201204

11291BPLATE, ENGINE NAME

main11291-37060i2ZRFXE..ZVW30..ARL,EUR201112-201511

11293DLABEL, ENGINE CAUTION

main11293-21080i2ZRFXE..ZVW30200904-201010

main11293-21081i2ZRFXE..ZVW30..ARL,EUR201011-201112

main11293-36070i2ZRFXE..ZVW30..TH201405-201510

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-37260i2ZRFXE..ZVW30..LHD200904-201112

PHILIPPINE SPEC

16793BLABEL, COOLING FAN INFORMATION

main16793-28020i2ZRFXE..ZVW30..ARL,EUR200904-201105

sub16793-36040

main16793-31040i2ZRFXE..ZVW30..TH201106-201204

47288LABEL, BRAKE FLUID NOTICE

main47288-33010iZVW30..LHD201112

RUSSIA SPEC

88723ELABEL, COOLER SERVICE CAUTION

main88723-06100iZVW30..TH201204

main88723-47070iZVW30..ARL,EUR200904-201112

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547030iZVW30200904-201010

mainG927576020iZVW30..ARL,EUR201011-201112

mainG927576040iZVW30..LHD201405

KAZAKHSTAN SPEC

subG9275-76050

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A148010iZVW30200904-201004

9 parts on this diagram · 5 diagrams in section
