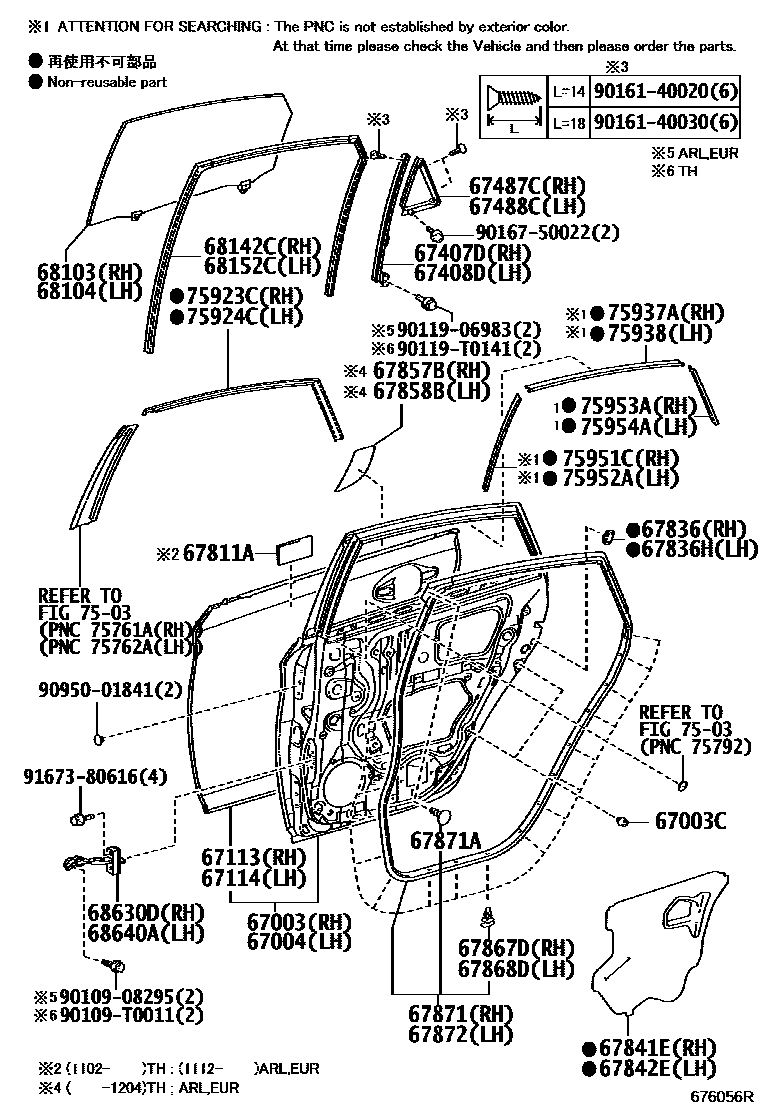

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67811APAD, REAR DOOR SILENCER
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,GREEN
*UVCT,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,GREEN
*UVCT,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
75937ATAPE, BLACK OUT, INNER UPPER RH
REFER TO ILLUST.
REFER TO ILLUST.
75938TAPE, BLACK OUT, INNER UPPER LH
REFER TO ILLUST.
REFER TO ILLUST.
75951CTAPE, BLACK OUT, INNER FRONT RH
REFER TO ILLUST.
REFER TO ILLUST.
75952ATAPE, BLACK OUT, INNER FRONT LH
REFER TO ILLUST.
REFER TO ILLUST.
75953ATAPE, BLACK OUT, INNER REAR RH
REFER TO ILLUST.
REFER TO ILLUST.
75954ATAPE, BLACK OUT, INNER REAR LH
REFER TO ILLUST.
REFER TO ILLUST.
9010908295
90109T0011
main90109-T0011
9011906983
90119T0141
main90119-T0141
9016140020
9016140030
9016750022
9095001841
9167380616
45 parts on this diagram · 2 diagrams in section
