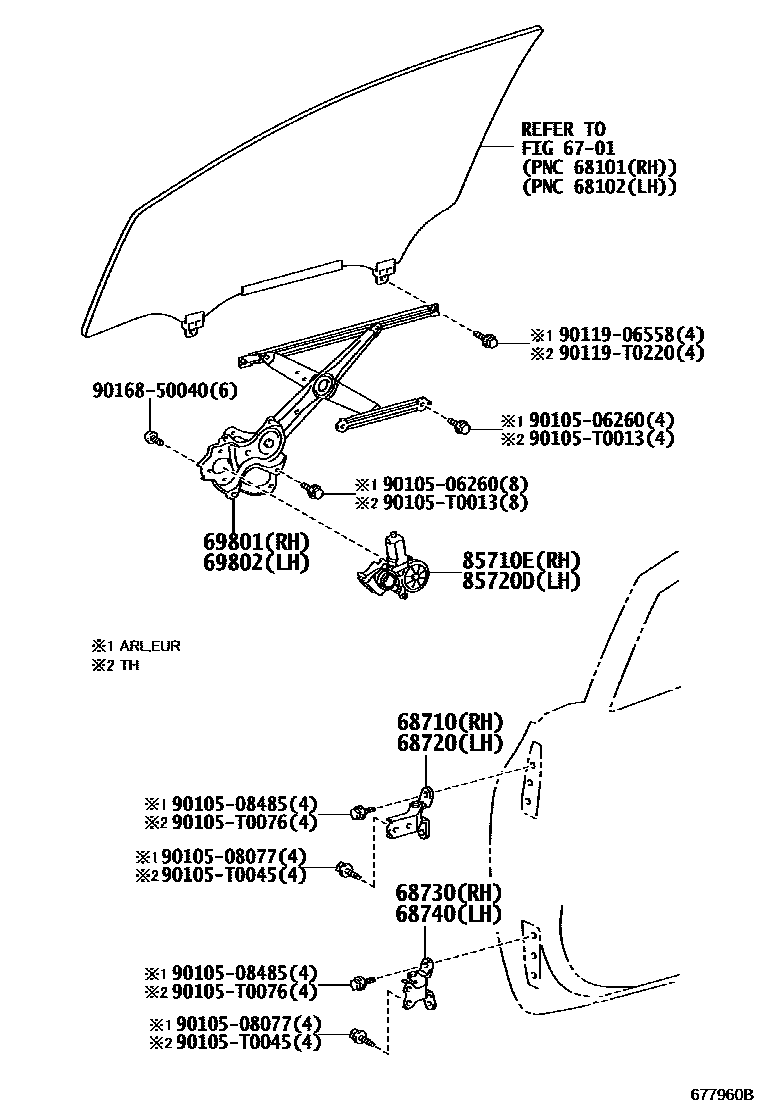

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iZVW30..TH201012-201204

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZVW30..ARL,EUR200904-201112

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iZVW30..ARL,EUR200904-201112

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iZVW30..ARL,EUR200904-201112

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070iZVW30..ARL,EUR200904-201112

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070iZVW30..ARL,EUR200904-201112

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12460iZVW30..EUR201112-201204

main85710-30400iZVW30..TH201012-201103

sub85710-12490

main85710-47040iZVW30..TH201104-201204

sub85710-12490

main85710-47100iZVW30..EUR201204-201208

main85710-47110iZVW30..TH201209

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12460iZVW30..EUR201112-201204

main85720-30340iZVW30..TH201012-201103

sub85720-12490

main85720-47040iZVW30..ARL,EUR201104-201112

sub85720-12490

main85720-47100iZVW30..EUR201204-201208

main85720-47110iZVW30..TH201209

9010506260

main90105-06260

9010508077

main90105-08077

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0045

main90105-T0045

90105T0076

main90105-T0076

9011906558

main90119-06558

90119T0220

main90119-T0220

9016850040

main90168-50040

18 parts on this diagram · 1 diagram in section
