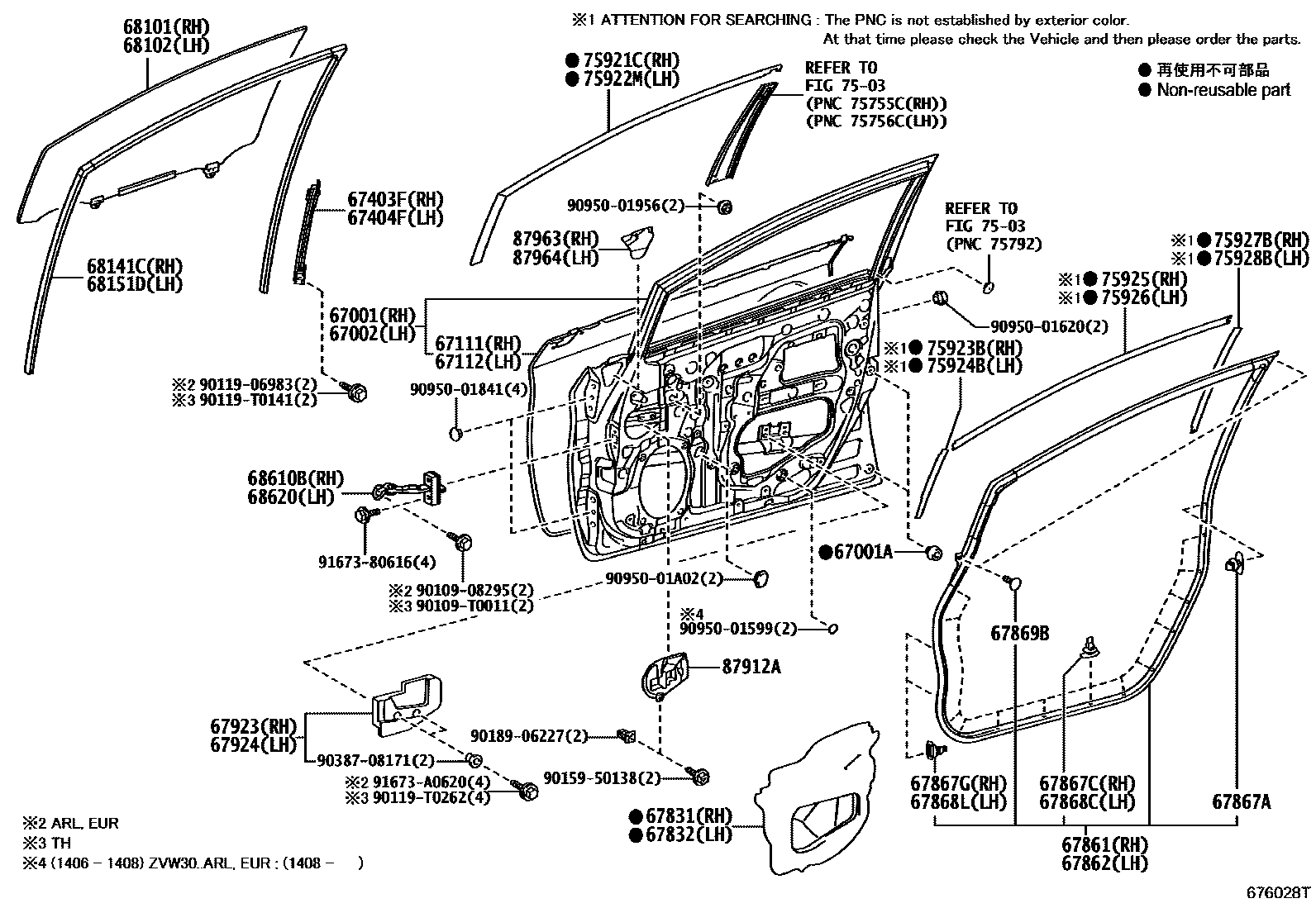

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-47070iZVW30..ARL,EUR200904-201112

main67001-47071iZVW30..TH201408

67001ACUSHION, FRONT DOOR PANEL

main90541-09117×4iZVW30200904-200910

main90541-09124×4iZVW30..ARL,EUR201105-201112

main90541-09138×4iZVW30..TH201012-201104

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-47070iZVW30..ARL,EUR200904-201112

main67002-47071iZVW30..TH201408

67111PANEL, FRONT DOOR, OUTER RH

main67111-47030iZVW30..ARL,EUR201112-201511

67112PANEL, FRONT DOOR, OUTER LH

main67112-47030iZVW30..ARL,EUR200904-201112

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-47030iZVW30..ARL,EUR201112

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-47030iZVW30..ARL,EUR201112

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-47070iZVW30..TH201012-201204

main67831-47071iZVW30..ARL,EUR201406

main67831-47130iZVW30..ARL,EUR201112-201310

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-47060iZVW30..ARL,EUR201310-201405

main67832-47061iZVW30..TH201408

main67832-47110iZVW30..ARL,EUR201112-201310

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0Q020iZVW30..TH201204

main67861-47030iZVW30..TH201012-201204

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0Q020iZVW30..TH201204

main67862-47030iZVW30..ARL,EUR200904-201112

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-04034×2iZVW30..TH201204

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×13iZVW30..TH201204

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-52030×2iZVW30..ARL,EUR201112

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×13iZVW30..ARL,EUR201112

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-52030×2iZVW30..ARL,EUR200904-201112

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-05017-C0×4iZVW30..ARL,EUR200904-201112

BLACK

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-47040iZVW30..TH201012-201204

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-47030iZVW30..ARL,EUR201112

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0Q041supersedes 68101-47131iZVW30..TH201204-201510

*TEM,T=3.5,GREEN,EXPORT UPPER PACKAGE

sub68101-0Q042

main68101-47080supersedes 68101-47072iZVW30..EUR200904-200905

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68101-47081supersedes 68101-47072iZVW30..EUR200906-201107

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68101-47082supersedes 68101-47072iZVW30..LHD201112-201511

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68101-47090iZVW30..RHD..EUR200904-200906

*UVCT,T=3.5,GREEN,INDONESIA SPEC

sub68101-47071

main68101-47100iZVW30..RHD..EUR200904-200906

*UVCT,T=3.5,GREEN,INDONESIA SPEC&EXPORT UPPER PACKAGE

main68101-47140supersedes 68101-47131iZVW30..TH201012-201107

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68101-47141supersedes 68101-47131iZVW30..TH201108-201204

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68101-47180iZVW30..LHD201112-201511

*UVCT,T=3.5,GREEN,BRAZIL SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0Q041supersedes 68102-47131iZVW30..TH201204-201510

*TEM,T=3.5,GREEN,EXPORT UPPER PACKAGE

sub68102-0Q042

main68102-47080supersedes 68102-47072iZVW30..EUR200904-200905

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68102-47081supersedes 68102-47072iZVW30..EUR200906-201107

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68102-47082supersedes 68102-47072iZVW30..EUR201108-201112

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68102-47090iZVW30..RHD..EUR200904-200906

*UVCT,T=3.5,GREEN,INDONESIA SPEC

sub68102-47071

main68102-47100iZVW30..RHD..EUR200904-200906

*UVCT,T=3.5,GREEN,INDONESIA SPEC&EXPORT UPPER PACKAGE

main68102-47140supersedes 68102-47131iZVW30..TH201012-201107

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68102-47141supersedes 68102-47131iZVW30..TH201108-201204

*UVCT,T=3.5,GREEN,EXPORT UPPER PACKAGE

main68102-47180iZVW30..LHD201112-201511

*UVCT,T=3.5,GREEN,BRAZIL SPEC

68141CRUN, FRONT DOOR GLASS, RH

main68141-47030iZVW30..ARL,EUR201112

68151DRUN, FRONT DOOR GLASS, LH

main68151-47030iZVW30..TH201012-201204

68610BCHECK ASSY, FRONT DOOR, RH

main68610-47020iZVW30..ARL,EUR200904-201106

main68610-47021iZVW30..TH201204

68620CHECK ASSY, FRONT DOOR, LH

main68610-47020iZVW30..ARL,EUR200904-201106

main68610-47021iZVW30..ARL,EUR201106-201112

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0Q020iZVW30..TH201204-201510

main75921-47020iZVW30..ARL,EUR200904-201112

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0Q020iZVW30..TH201204-201510

main75922-47020iZVW30..ARL,EUR200904-201112

75923BTAPE, BLACK OUT, NO.2 RH

main75975-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75975-47020iZVW30..TH201012-201204

REFER TO ILLUST.

75924BTAPE, BLACK OUT, NO.2 LH

main75976-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75976-47020iZVW30..ARL,EUR201112

REFER TO ILLUST.

75925TAPE, BLACK OUT, NO.3 RH

main75985-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75985-47020iZVW30..TH201012-201204

REFER TO ILLUST.

75926TAPE, BLACK OUT, NO.3 LH

main75986-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75986-47020iZVW30..ARL,EUR201112

REFER TO ILLUST.

75927BTAPE, BLACK OUT, NO.4 RH

main75965-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75965-47010iZVW30..ARL,EUR201112

REFER TO ILLUST.

75928BTAPE, BLACK OUT, NO.4 LH

main75966-0Q020iZVW30..TH201204

REFER TO ILLUST.

main75966-47010iZVW30..ARL,EUR201112

REFER TO ILLUST.

87912APROTECTOR, OUTER MIRROR

main87912-47010iZVW30..ARL,EUR201112

RH

main87912-47020iZVW30..TH201012-201204

LH

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-47010iZVW30..TH201204

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-47010iZVW30..ARL,EUR201112

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9015950138

main90159-50138

9018906227

main90189-06227

9038708171

main90387-08171

9095001599

main90950-01599

9095001620

main90950-01620

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

91673A0620

main91673-A0620

52 parts on this diagram · 2 diagrams in section
