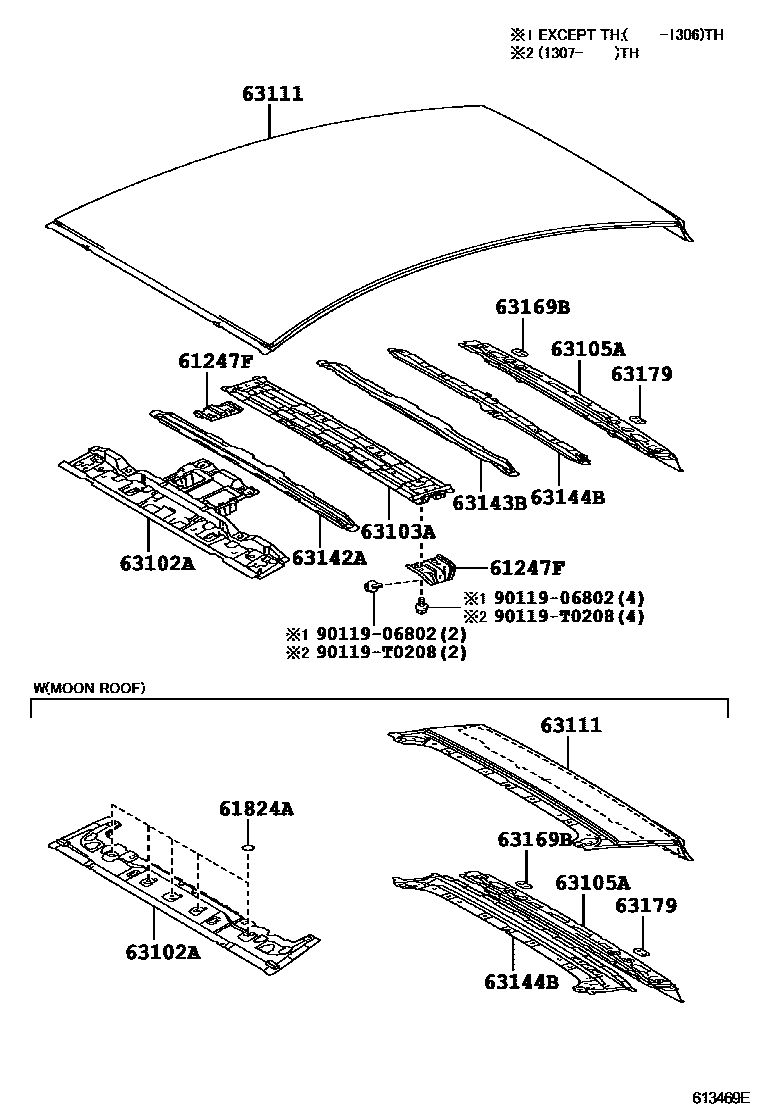

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-47020iZVW30..ARL,EUR200904-201204

61824APLATE, NOISE CONTROL, NO.1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47900iZVW30..ARL,EUR200904-201204

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47010iZVW30..ARL,EUR200904-201204

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-47020iZVW30..ARL,EUR200904-201204

63111PANEL, ROOF

main63111-47030iZVW30..ARL,EUR200904-201204

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-47020iZVW30..ARL,EUR200904-201204

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47030iZVW30..ARL,EUR200904-201204

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-47020iZVW30..ARL,EUR200904-201204

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iZVW30..ARL,EUR200904-201204

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iZVW30..ARL,EUR200904-201204

9011906802

main90119-06802

90119T0208

main90119-T0208

13 parts on this diagram · 2 diagrams in section
