MAT & CARPET

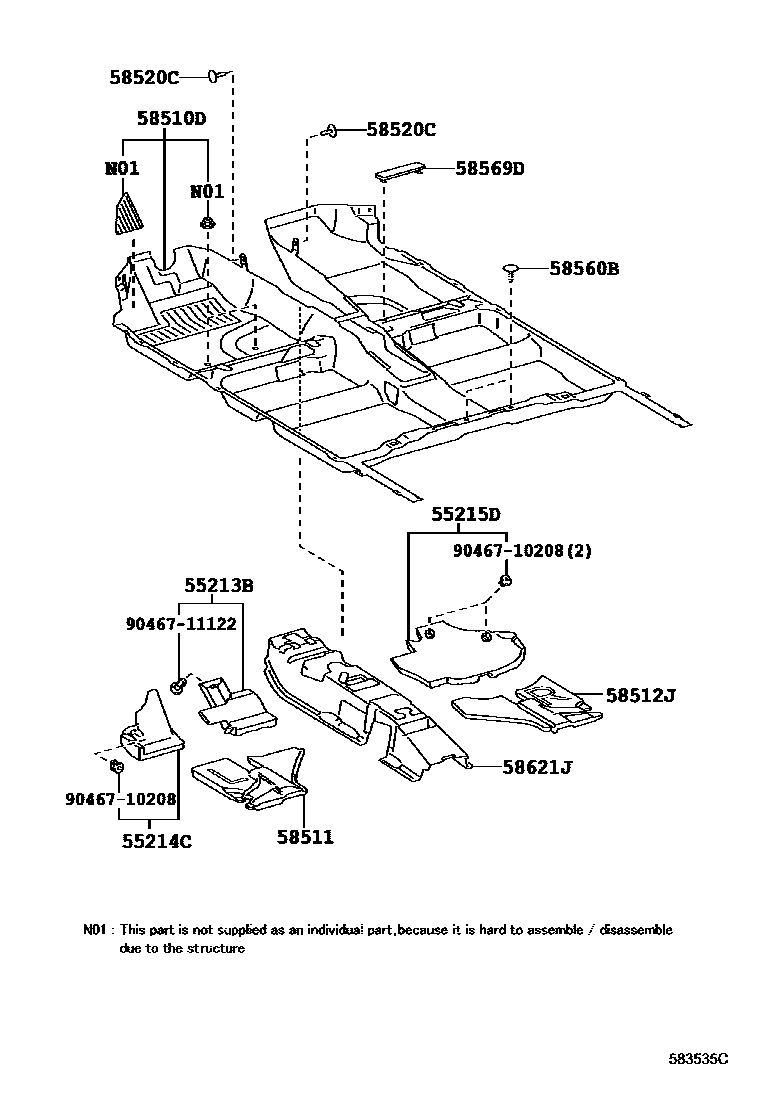

Parts diagram

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-21040i201112

main55213-47080i200904-201112

main55213-47090i201012-201112

main55213-47110i201112-201112

main55213-47120i201112

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-47030i201112-201310

main55214-47040i201012-201204

main55214-47050i201310

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-47030i200904-201104

main55215-47040i201112

main55215-47050i201112

58510DCARPET ASSY, FLOOR, FRONT

main58510-47220-B1i200904-201112

MD.GRAY,TRIM1#

main58510-47220-G1i200904-201112

AQUA,TRIM6#

main58510-47221-B2i201112-201310

DK. GREY,TRIM2#,6#

main58510-47230-B1i200904-201112

MD.GRAY,TRIM1#

main58510-47230-G1i200904-201112

AQUA,TRIM6#

main58510-47231-B1i201112-201204

MD.GRAY,TRIM1#

main58510-47231-B2i201204

DK. GREY,TRIM2#,6#

main58510-47460-B0i201310-201511

DK. GREY,TRIM2#,6#

58511MAT, FLOOR, FRONT

main58511-12620i201012-201204

main58511-12621i201305

58512JMAT, FLOOR, NO.2

main58512-12200i201112-201304

main58512-12201i201305

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2i201112-201204

DK.GRAY

main90467-05164-C0×2i201012-201112

BLACK

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07049-B7×2i201112-201511

DK.GRAY

main90467-07049-E5×2i201112-201511

GREGE

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-12010-B2i201012-201204

MD.GRAY,TRIM1#

main58569-12010-C0i201112-201511

BLACK,TRIM2#,6#

main58569-12010-G0i200904-201112

AQUA,TRIM6#

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47020i201112

9046710208

main90467-10208

9046711122

main90467-11122

12 parts on this diagram · 4 diagrams in section
