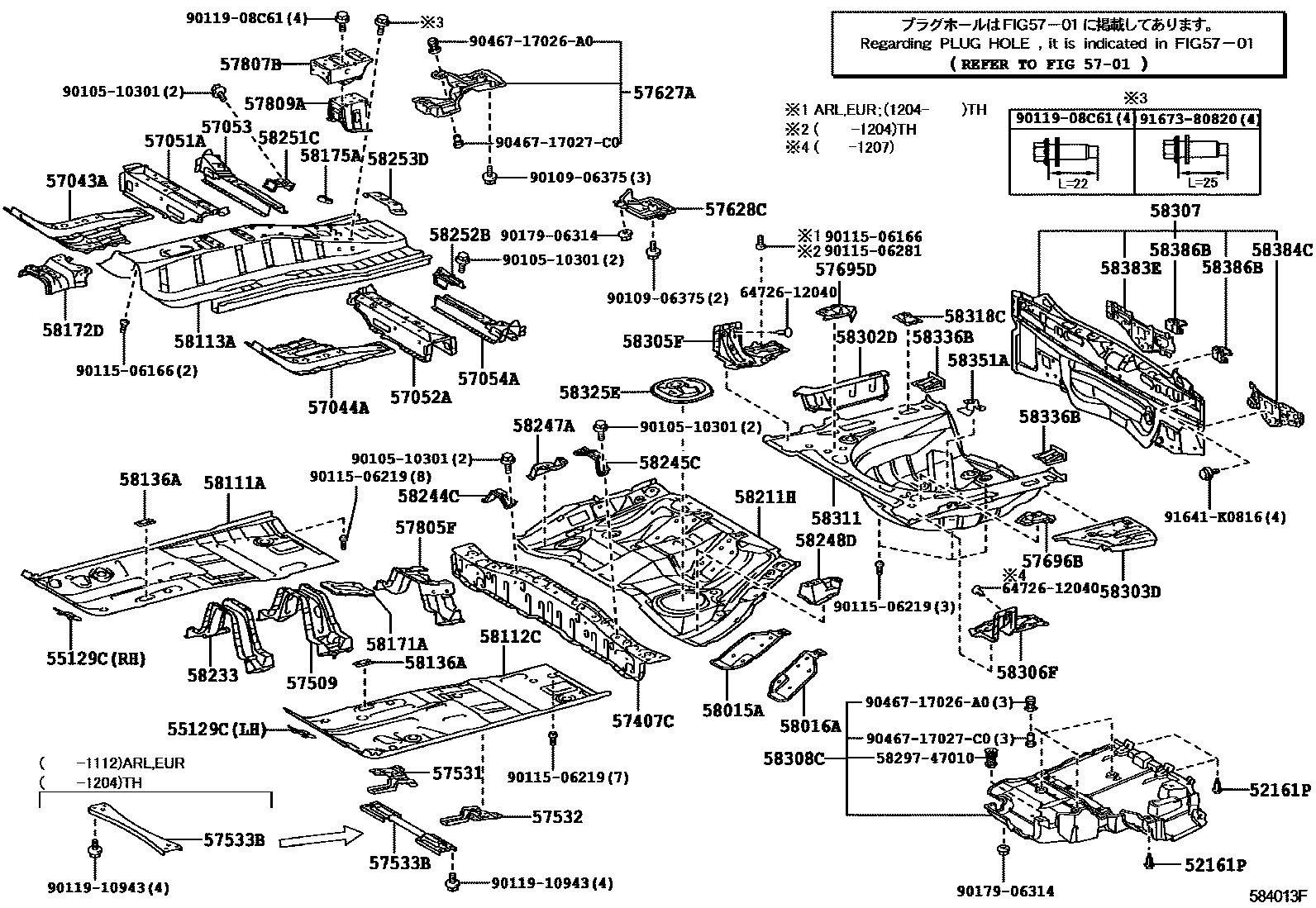

FLOOR PAN & LOWER BACK PANEL

52161PPIECE, REAR BUMPER

main52161-16010×3iZVW30..TH201204

sub52161-0K040

55129CCOVER, DASH PANEL HOLE

main55129-12040iZVW30..TH201012-201204

RH

main55139-12050iZVW30..TH201204

LH

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-12020iZVW30..ARL,EUR201112

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-12020iZVW30..ARL,EUR200904-201112

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-12060iZVW30..ARL,EUR200904-201112

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-12010iZVW30..ARL,EUR200904-201112

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12010iZVW30..TH201012-201204

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12010iZVW30..TH201012-201204

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-12101iZVW30..ARL,EUR201112-201502

main57407-12103iZVW30..ARL,EUR201503

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-12061iZVW30200904-201008

main58161-12231iZVW30..ARL,EUR201008-201112

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-12010iZVW30..ARL,EUR200904-201112

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-12010iZVW30..ARL,EUR200904-201112

57533BBRACE, FRONT FLOOR, CENTER

main57501-12020iZVW30..ARL,EUR201112

main57533-12010iZVW30..TH201012-201204

57627ACOVER, REAR FLOOR SIDE MEMBER, RH

main57627-47010iZVW30..TH201012-201204

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-12130iZVW30..ARL,EUR200904-201112

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-47030iZVW30..ARL,EUR200904-201112

57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH

main57696-47030iZVW30..ARL,EUR201112

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-12150iZVW30..ARL,EUR201112-201207

main57805-12151iZVW30..TH201208

57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2

main57807-47010iZVW30..ARL,EUR200904-201112

57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3

main57809-47010iZVW30..ARL,EUR200904-201112

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-47041iZVW30..ARL,EUR201112-201311

main58015-47042iZVW30..TH201312

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-47031iZVW30..ARL,EUR200904-201112

58111APAN, FRONT FLOOR, RH

main58111-47903iZVW30..ARL,EUR200904-201112

58112CPAN, FRONT FLOOR, LH

main58112-47900iZVW30..ARL,EUR200904-201112

58113APANEL, FRONT FLOOR, CENTER

main58113-47900iZVW30..ARL,EUR200904-201112

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12040×2iZVW30..TH201204

58171AREINFORCE, PARKING BRAKE BASE

main58171-12120iZVW30..ARL,EUR201112

58172DBRACKET, COMPUTER MOUNTING, NO.4

main58173-72010iZVW30..ARL,EUR200904-201112

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58176-12020iZVW30..ARL,EUR200904-201112

58211HPAN, CENTER FLOOR

main58211-47050iZVW30..TH201012-201204

main58211-47070iZVW30..TH201211

sub90950-01944

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-12070iZVW30..TH201012-201204

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-47010iZVW30..ARL,EUR200904-201112

58245CBRACKET, REAR SEAT CUSHION MOUNTING, LH

main58245-47010iZVW30..TH201204

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-47010iZVW30..ARL,EUR201112-201211

main58247-47011iZVW30..ARL,EUR201211

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-47010iZVW30..ARL,EUR200904-201112

main58248-47011iZVW30..TH201211

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12040iZVW30..ARL,EUR200904-201112

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12040iZVW30..ARL,EUR200904-201112

58253DBRACKET, PARKING BRAKE CABLE

main58253-12060iZVW30..ARL,EUR200904-201112

58302DPANEL SUB-ASSY, REAR FLOOR, FRONT

main58302-47030iZVW30..TH201012-201204

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-47030iZVW30200904-201006

main58303-47031iZVW30..ARL,EUR201112-201511

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-12040iZVW30..ARL,EUR200904-201112

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-12030iZVW30..ARL,EUR200904-201112

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-47060iZVW30..ARL,EUR200904-201112

58308CCOVER SUB-ASSY, REAR FLOOR STEP UNDER

main58308-47011iZVW30..ARL,EUR200904-201112

58311PAN, REAR FLOOR

main58311-47070iZVW30..ARL,EUR200904-201112

main58311-47071iZVW30..ARL,EUR201205

58318CBRACKET, REAR FLOOR CROSSMEMBER

main58318-47030iZVW30..ARL,EUR200904-201112

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12140iZVW30..ARL,EUR200904-201112

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12090×2iZVW30..ARL,EUR200904-201112

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12060iZVW30..ARL,EUR200904-201112

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-47010iZVW30..ARL,EUR200904-201112

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-47020iZVW30..ARL,EUR200904-201112

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-12020×2iZVW30..ARL,EUR200904-201112

5829747010RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR

main58297-47010

6472612040PAD, HOUSING SPARE WHEEL SILENCER, FRONT

main64726-12040

9010510301

main90105-10301

9010906375

main90109-06375

9011506166

main90115-06166

9011506219

main90115-06219

9011506281

main90115-06281

9011908C61

main90119-08C61

9011910943

main90119-10943

9017906314

main90179-06314

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

91641K0816

main91641-K0816

9167380820

main91673-80820

67 parts on this diagram · 1 diagram in section
