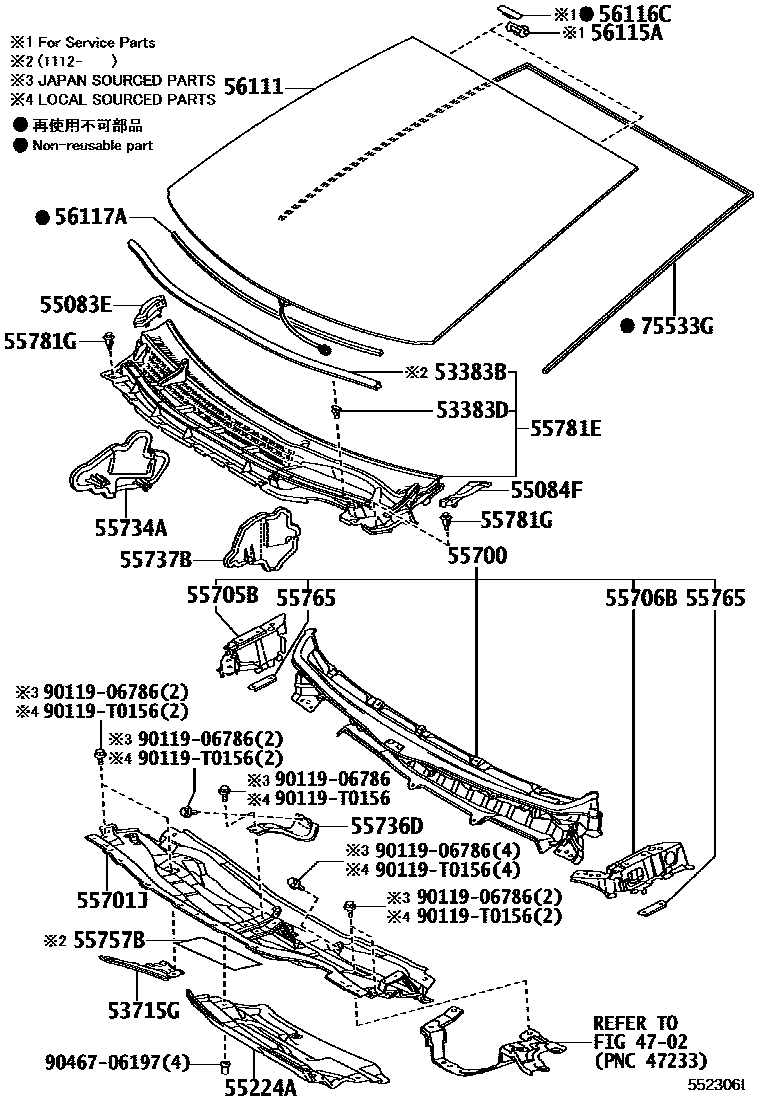

COWL PANEL & WINDSHIELD GLASS
4702
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
55083EVENTILATOR SUB-ASSY, COWL SIDE, RH
55084FVENTILATOR SUB-ASSY, COWL SIDE, LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55757BSHEET COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
COLD AREA SPEC
55781GCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E906
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD-CHANGER,8SPEAKER
sub56101-4E909
*LAM,T=4.56,GREEN,WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT & BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
sub56101-4E905
*LAM,T=4.56,GREEN,EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY:FRONT &BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-AVN,BLUETOOTH,8SPEAKER
*LAM,T=4.56,GREEN,INDONESIA SPEC&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT& BACK)&AUDIO-CD,BLUETOOTH,8SPEAKER
*LAM,T=4.56,GREEN,INDONESIA SPEC&EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC)& W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-A
*LAM,T=4.56,GREEN,EXPORT UPPER PACKAGE&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-CD,BLUETOOTH,8SP
*LAM,T=4.76,GREEN,WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)&AUDIO-AV,BLUETOOTH,8SPEAKER
*LAM,T=4.56,GREEN,EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-AVN(FOR ASIA) *BT USB JBL 8SPEAKER
*LAM,T=4.56,GREEN,EXPORT UPPER PACKAGE
sub56101-4F940
*LAM,T=4.56,GREEN,CHILE SPEC&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56101-4F946
*LAM,T=4.56,GREEN,LATIN AMERICA SPEC(EXCEPT CHILE&MEXICO)&EXPORT UPPER PACKAGE&SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
BRAZIL SPEC&SMART ENTRY-W(FRONT & BACK DOOR,W/PANIC BUTTON)&AUDIO-*DA *BT USB JBL8SPEAKER
sub56103-47984
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
L=1227,SMART ENTRY-W(FRONT & BACK DOOR)&AUDIO-*DA *BT USB JBL 8SPEAKER
sub56117-50140
75533GMOULDING, WINDSHIELD, OUTSIDE
9011906786
main90119-06786
90119T0156
main90119-T0156
9046706197
main90467-06197
26 parts on this diagram · 2 diagrams in section
