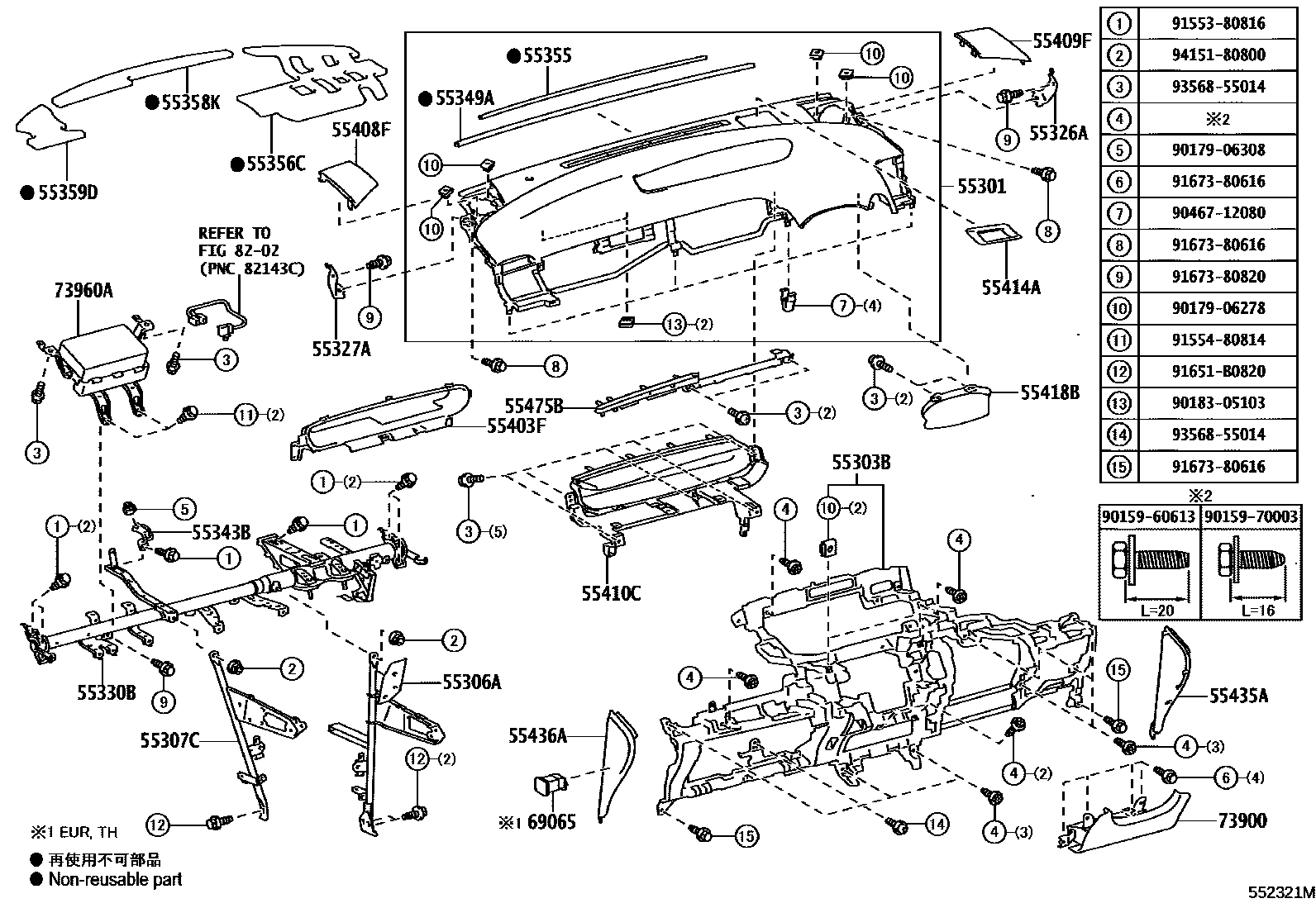

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1DRIVER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1CENTER 0011 1PASSENGER SIDE 0012 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47070-B0iZVW30..RHD..(ARL,EUR)200904-201112

MIST GRAY,TRIM6#

main55300-47070-C0iZVW30..RHD..(ARL,EUR)200904-201112

BLACK,TRIM1#

main55300-47080-B0iZVW30..LHD200904-201112

MIST GRAY,TRIM6#

main55300-47080-C0iZVW30..LHD200904-201112

BLACK,TRIM1#

main55300-47210-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM1#,2#,6#

main55300-47220-C0iZVW30..LHD201112-201310

BLACK,TRIM1#,2#,6#

main55300-47300-C0iZVW30..LHD201310-201511

BLACK,TRIM2#,6#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47040-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main55303-47040-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM2#

main55303-47040-G0iZVW30..RHD..(ARL,EUR)201112-201511

AQUA,TRIM6#

main55303-47050-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main55303-47050-C0iZVW30..LHD201112-201310

BLACK,TRIM2#

main55303-47050-G0iZVW30..LHD201112-201310

AQUA,TRIM6#

main55303-47070-C0iZVW30..LHD201310-201511

BLACK,TRIM2#

main55303-47070-G0iZVW30..LHD201310-201511

AQUA,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47060iZVW30..TH201204

main55306-47070iZVW30..LHD201112

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47010iZVW30..TH201204

main55307-47020iZVW30..LHD201112

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-47030iZVW30..ARL,EUR201112

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-47030iZVW30..ARL,EUR201112

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47080iZVW30..RHD..(ARL,EUR)200904-201112

main55330-47081iZVW30..RHD..(ARL,EUR)201112-201206

main55330-47082iZVW30..RHD..(ARL,EUR)201207-201511

main55330-47090iZVW30..LHD200904-201112

main55330-47091iZVW30..LHD201112-201206

main55330-47092iZVW30..LHD201207-201304

sub55330-47180

main55330-47093iZVW30..LHD201304-201310

sub55330-47180

main55330-47094iZVW30..LHD201310-201511

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-47020iZVW30..RHD..(ARL,EUR)201112

main55343-47030iZVW30..LHD201112

55349ACUSHION, INSTRUMENT PANEL

main55349-47070iZVW30..ARL,EUR200904-201112

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47040iZVW30..ARL,EUR200904-201112

main55355-47080iZVW30..ARL,EUR201112

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47030iZVW30..ARL,EUR200904-201112

main55356-47070iZVW30..ARL,EUR201112

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47050iZVW30..ARL,EUR200904-201112

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-47020iZVW30..ARL,EUR200904-201112

main55359-47030iZVW30..TH201204

55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH

main55403-47030iZVW30..RHD..(ARL,EUR)200904-201112

main55403-47040iZVW30..LHD200904-201112

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-47020-B0iZVW30..ARL,EUR200904-201112

MIST GRAY,TRIM6#

main55472-47020-C0iZVW30..TH201012-201204

BLACK,TRIM1#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-47010-B0iZVW30..ARL,EUR200904-201112

MIST GRAY,TRIM6#

main55473-47010-C0iZVW30..ARL,EUR200904-201112

BLACK,TRIM1#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-47080iZVW30..TH201204

main55410-47090iZVW30..LHD201112

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-47030-B0iZVW30..RHD..(ARL,EUR)200904-201110

MIST GRAY,TRIM6#

main55414-47030-C0iZVW30..TH201012-201109

BLACK,TRIM1#

main55414-47031-B0iZVW30..RHD..(ARL,EUR)201110-201112

MIST GRAY,TRIM6#

main55414-47031-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM2#,6#

main55414-47040-B0iZVW30..LHD200904-201110

MIST GRAY,TRIM6#

main55414-47040-C0iZVW30..LHD200904-201110

BLACK,TRIM1#

main55414-47041-B0iZVW30..LHD201110-201112

MIST GRAY,TRIM6#

main55414-47041-C0iZVW30..LHD201110-201112

BLACK,TRIM1#

55418BSPACER,METER HOOD

main55418-47010iZVW30..RHD..(ARL,EUR)200904-201112

main55418-47020iZVW30..LHD201112

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47010-B0iZVW30..RHD..(ARL,EUR)200904-201112

MD.GRAY,TRIM1#

sub55435-47011

main55435-47010-C0iZVW30..RHD..(ARL,EUR)201112-201511

BLACK,TRIM2#

sub55435-47011

main55435-47010-G0iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

sub55435-47011

main55435-47020-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main55435-47020-C0iZVW30..LHD201112-201511

BLACK,TRIM2#

main55435-47020-G0iZVW30..LHD201112-201511

AQUA,TRIM6#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47010-B0iZVW30..LHD;ZVW30..ARL200904-201112

MD.GRAY,TRIM1#

main55436-47010-C0iZVW30..LHD;ZVW30..ARL201112-201511

BLACK,TRIM2#

main55436-47010-G0iZVW30..LHD;ZVW30..ARL201112-201511

AQUA,TRIM6#

main55436-47020-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main55436-47020-C0iZVW30..TH201204

BLACK,TRIM2#

main55436-47020-G0iZVW30..RHD..EUR201112-201511

AQUA,TRIM6#

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-47050iZVW30..RHD..(ARL,EUR)200904-201112

main55475-47060iZVW30..LHD200904-201112

main55475-47100iZVW30..RHD..(ARL,EUR)201112

main55475-47110iZVW30..LHD201112

69065CYLINDER SUB-ASSY, AIRBAG CUT OFF SW

main69065-12460iZVW30..TH201207

main69065-47040iZVW30..EUR200907-201112

main69065-52030iZVW30..EUR200904-200906

main69065-52050iZVW30..TH201204-201206

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-47010-B0iZVW30..TH201012-201204

MD.GRAY,TRIM1#

main73900-47010-C0iZVW30..TH201204

BLACK,TRIM2#

main73900-47010-G0iZVW30..RHD..(ARL,EUR)200904-201112

AQUA,TRIM6#

main73900-47020-B0iZVW30..LHD200904-201112

MD.GRAY,TRIM1#

main73900-47020-C0iZVW30..LHD201112-201511

BLACK,TRIM2#

main73900-47020-G0iZVW30..LHD200904-201112

AQUA,TRIM6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47050iZVW30..TH201204

main73960-47070iZVW30..LHD201112

8202

9015960613

main90159-60613

9015970003

main90159-70003

9017906278

main90179-06278

9017906308

main90179-06308

9018305103

main90183-05103

9046712080

main90467-12080

9155380816

main91553-80816

9155480814

main91554-80814

91651B0820

main91651-B0820

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

39 parts on this diagram · 11 diagrams in section
