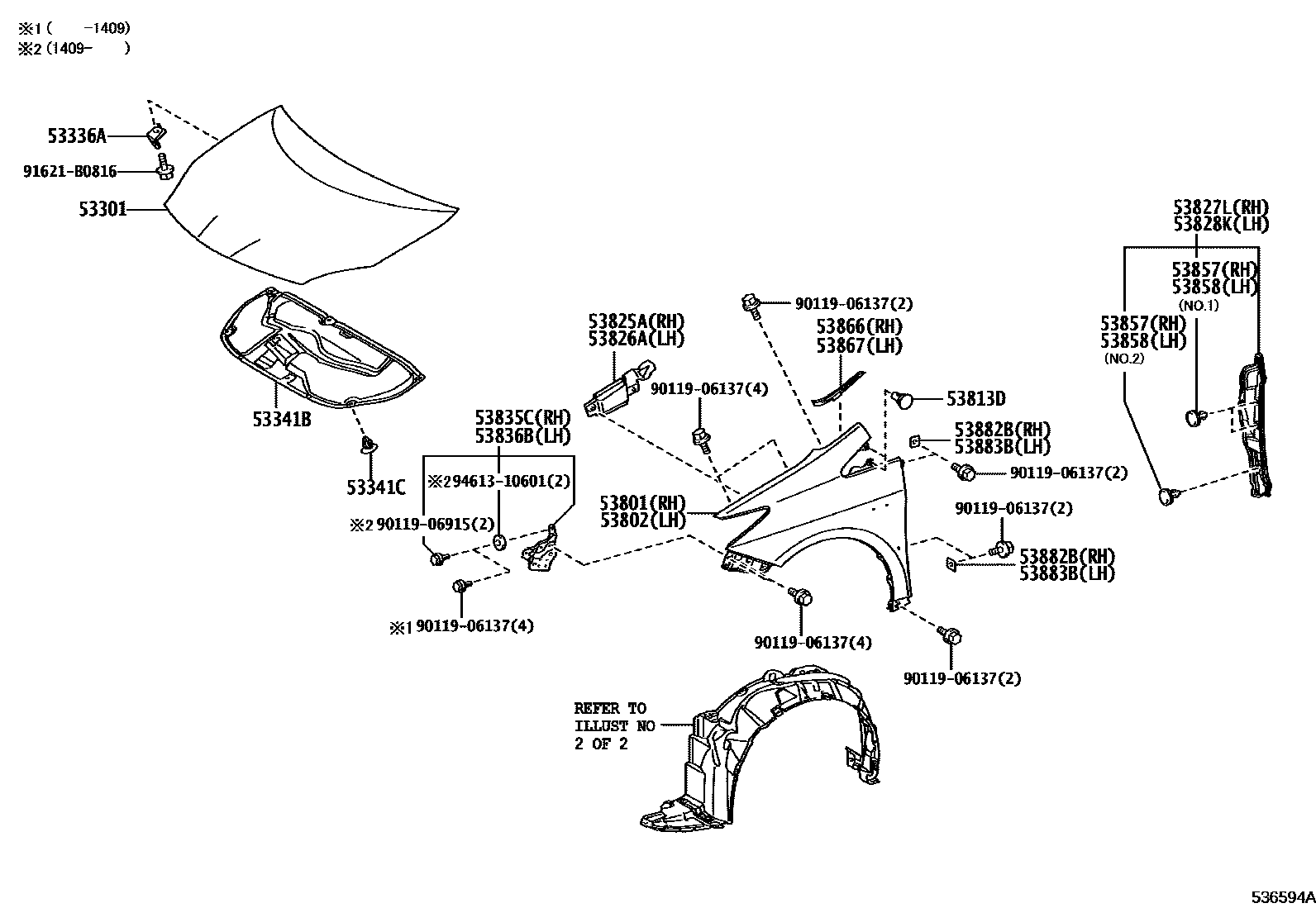

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER 0003 1 0004 1FENDER LINER

53301HOOD SUB-ASSY

main53301-47060iZVW30..ARL,EUR¥60,000200904-201511

53336ABRACKET, HOOD STAY

main53336-47010iZVW30..ARL,EUR¥270200904-201204

53341BINSULATOR, HOOD

main53341-47020iZVW30..ARL,EUR¥10,800200904-201204

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW30..ARL,EUR¥120200904-201204

main90467-T0014iZVW30..TH201204

53801FENDER SUB-ASSY, FRONT RH

main53801-47050iZVW30..ARL,EUR¥39,800200904-201511

53802FENDER SUB-ASSY, FRONT LH

main53802-47050iZVW30..TH¥39,800200904-201511

53813DEXTENSION, FRONT FENDER

main53813-47040iZVW30..ARL,EUR¥160200904-201511

main53813-48011iZVW30..TH¥80201012-201206

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-47010iZVW30..TH¥1,750200904-201204

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-47010iZVW30..ARL,EUR¥1,750200904-201204

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47030iZVW30..TH¥4,330200904-201204

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47030iZVW30..TH¥4,330200904-201309

sub53828-47060¥4,330

main53828-47060iZVW30..TH¥4,330201308

53835CBRACKET, FRONT SIDE PANEL, RH

main53803-47020iZVW30..ARL,EUR¥1,690201409-201511

main53835-47010iZVW30..ARL,EUR¥1,690200904-201409

sub53803-47020¥1,690

53836BBRACKET, FRONT SIDE PANEL, LH

main53804-47020iZVW30..TH¥1,690201409-201511

main53836-47010iZVW30..ARL,EUR¥1,690200904-201409

sub53804-47020¥1,690

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZVW30..ARL,EUR¥60200904-201204

NO.2

main53857-47020iZVW30..ARL,EUR¥70200904-201204

NO.1

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZVW30..ARL,EUR¥60200904-201204

NO.2

main53857-47020iZVW30..ARL,EUR¥70200904-201204

NO.1

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47020iZVW30..ARL,EUR¥590200904-201204

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47030iZVW30..ARL,EUR¥590200904-201204

53882BSEAL, FRONT FENDER, RH

main53882-16030iZVW30..TH¥60200904-201204

53883BSEAL, FRONT FENDER, LH

main53882-16030iZVW30..ARL,EUR¥60200904-201204

9011906137

main90119-06137¥70

9011906915

main90119-06915¥60

91621B0816

main91621-B0816¥90

9461310601

main94613-10601¥70

23 parts on this diagram · 4 diagrams in section
