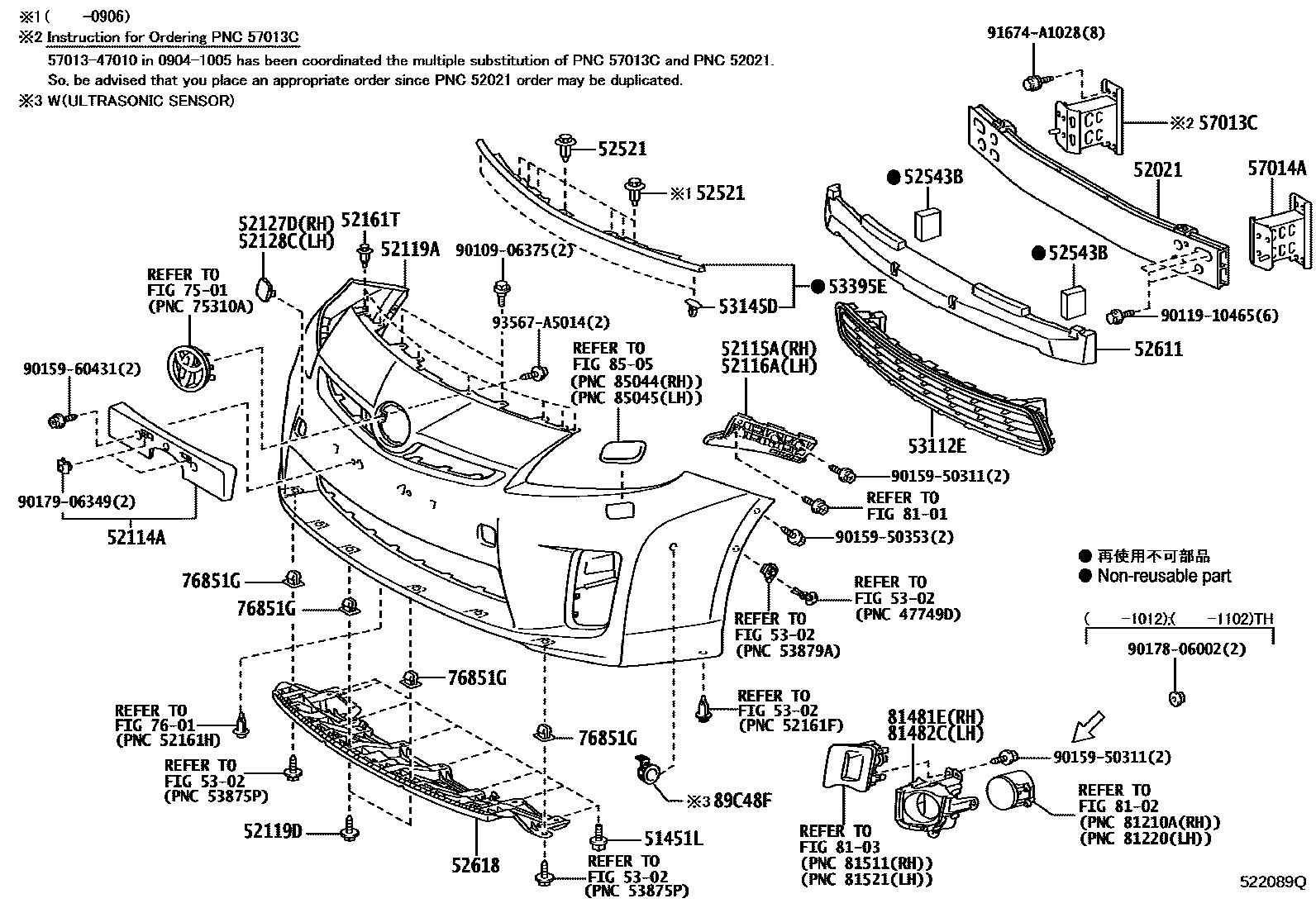

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,AUDIO-AVN,BLUETOOTH,8SPEAKER
PAINT REQ.,RUSSIA SPEC&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-CD-CHANGER,BLUETOOTH,8SPEAKER
PAINT REQ.,PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER
PAINT REQ.,AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER
PAINT REQ.,SOUTH AFRICA SPEC&HEADLAMP-LED&AUDIO-AVN(FOR S.AFRICA) *BT USB JBL 8SPEAKER
sub52119-47967
PAINT REQ.,HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
sub52119-47968
52119DSCREW, NO.1
TYPE B:REFER ILLUST.
52161TPIECE, FRONT BUMPER
52521RETAINER, FRONT BUMPER, UPPER CENTER
BLACK
52543BSEAL, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53145DCLIP, RADIATOR GRILLE
53395ESEAL, HOOD TO FRONT END PANEL
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7501
7601
76851GGROMMET, SCREW, NO.1
8101
8102
8103
81481ECOVER, FOG LAMP, RH
sub81481-47900
81482CCOVER, FOG LAMP, LH
sub81482-47900
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
HEADLAMP-LED&AUDIO-AVN,BLUETOOTH,8SPEAKER,SUPER WHITE 2,040
sub89348-33040
HEADLAMP-LED&AUDIO-AVN(FOR AUSTRALIA) *BT USB JBL 8SPEAKER,WHITE PEARL CS.,070
sub89348-33040
AUDIO-AVN,BLUETOOTH,8SPEAKER,SILVER ME.,1F7
sub89348-33040
HEADLAMP-LED&AUDIO-AVN(FOR AUSTRALIA) *BT USB JBL 8SPEAKER,BLACK,202
sub89348-33040
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,RED M.M.,3R3
sub89348-33040
HEADLAMP-LED&AUDIO-AVN(FOR RUSSIA) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,DEEP RED M.M.,3R9
sub89348-33040
TAIWAN SPEC&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER,BEIGE ME.,4T8
sub89348-33040
TAIWAN SPEC&HEADLAMP-LED&AUDIO-AVN(FOR TAIWAN) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,DK.BLUE MC.,8S6
sub89348-33040
TAIWAN SPEC&HEADLAMP-LED&AUDIO-AV,BLUETOOTH,8SPEAKER,DK.BLUE MC.,8T5
sub89348-33040
AUDIO-AVN(FOR EURO) *BT USB JBL 8SPEAKER&EMV & NAVIGATION SYSTEM-AVN,ABYSS GRAY ME.,8V1
sub89348-33040
9010906375
main90109-06375
9011910465
main90119-10465
9015950311
main90159-50311
9015950353
main90159-50353
9015960431
main90159-60431
9017806002
main90178-06002
9017906349
main90179-06349
91674A1028
main91674-A1028
93567A5014
main93567-A5014
38 parts on this diagram · 2 diagrams in section
