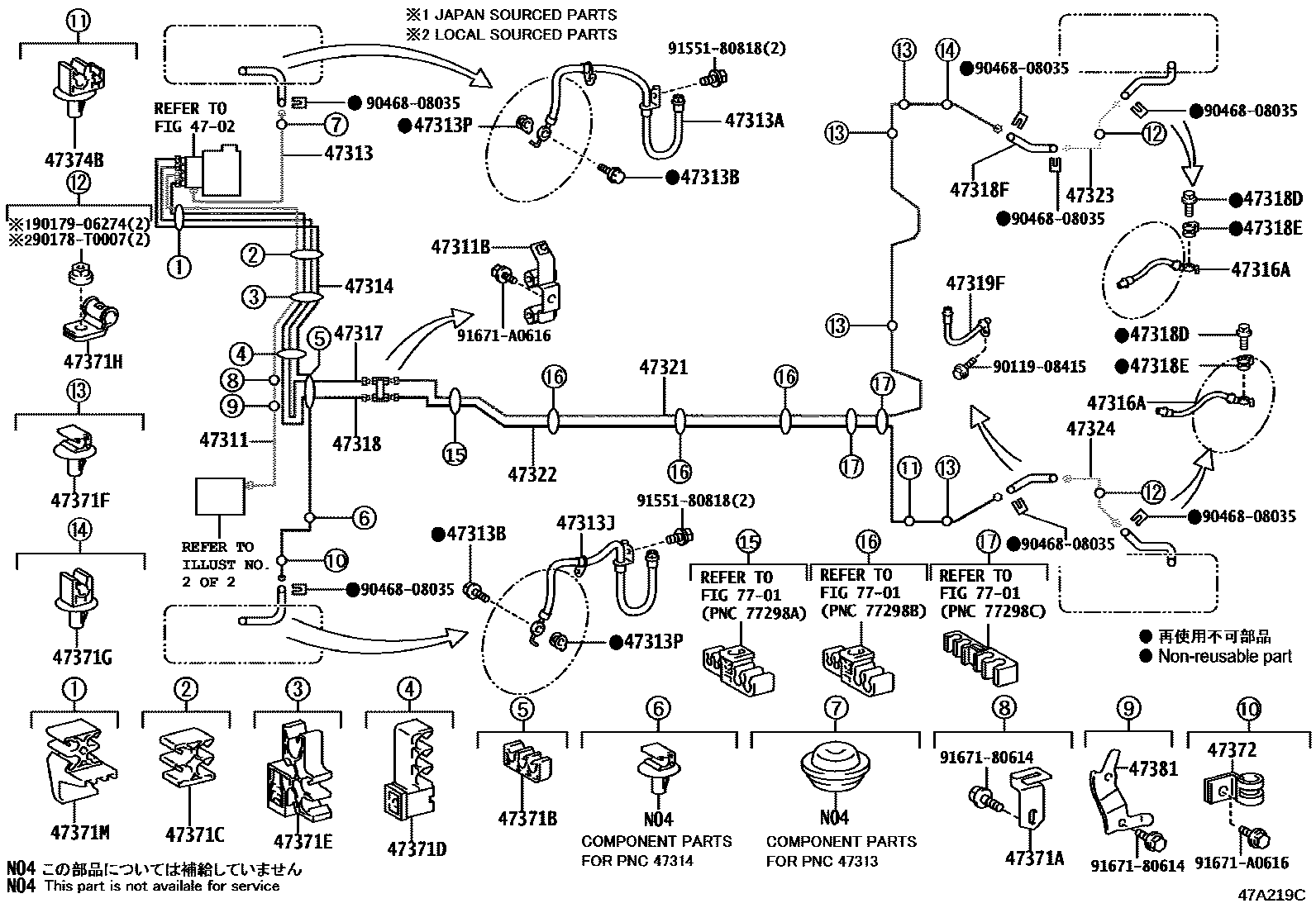

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-75010iZVW30..TH200904-201204

main47311-75020iZVW30..LHD200904-201112

sub47311-76020

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10279iZVW30..ARL,EUR200904-201204

47313TUBE, FRONT BRAKE, NO.3

main47313-0Q020iZVW30..TH201204

main47313-75010iZVW30..RHD..(ARL,EUR)200904-201204

main47313-75020iZVW30..LHD200904-201112

sub47313-75021

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F83iZVW30..ARL,EUR200904-201204

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW30..TH200904-201204

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F84iZVW30..ARL,EUR200904-201204

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZVW30..ARL,EUR200904-201204

47314TUBE, FRONT BRAKE, NO.4

main47314-0Q020iZVW30..TH201204

main47314-75010iZVW30..TH200904-201204

main47314-75020iZVW30..LHD200904-201112

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02F87iZVW30..TH200904-201204

47317TUBE, FRONT BRAKE, NO.7

main47317-75010iZVW30..RHD..(ARL,EUR)200904-201204

main47317-75020iZVW30..LHD200904-201112

47318TUBE, FRONT BRAKE, NO.8

main47318-75010iZVW30..RHD..(ARL,EUR)200904-201204

main47318-75020iZVW30..LHD200904-201112

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW30..ARL,EUR200904-201204

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZVW30..ARL,EUR200904-201204

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F85iZVW30..ARL,EUR200904-201204

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F86iZVW30..ARL,EUR200904-201204

47321TUBE, REAR BRAKE, NO.1

main47321-47040iZVW30..ARL,EUR200904-201511

47322TUBE, REAR BRAKE, NO.2

main47322-47040iZVW30..ARL,EUR200904-201511

47323TUBE, REAR BRAKE, NO.3

main47323-0Q020iZVW30..TH201204

main47323-12230iZVW30..TH200904-201204

sub47323-47050

47324TUBE, REAR BRAKE, NO.4

main47324-0Q020iZVW30..TH201204

main47324-12190iZVW30..ARL,EUR200904-201204

sub47324-47050

47371ACLAMP, BRAKE TUBE, NO.1

main47371-47060iZVW30..ARL,EUR200904-201204

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00857iZVW30..RHD..(ARL,EUR)200904-201204

main90464-00904iZVW30..LHD200904-201112

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00883iZVW30..RHD..(ARL,EUR)200904-201204

main90949-01972iZVW30..LHD200904-201112

47371DCLAMP, BRAKE TUBE, NO.8

main90461-10840iZVW30..LHD200904-201112

main90949-01D08iZVW30..TH200904-201204

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01D63iZVW30..RHD..(ARL,EUR)200904-201510

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iZVW30..ARL,EUR200904-201511

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iZVW30..ARL,EUR200904-201511

47371HCLAMP, BRAKE TUBE, NO.12

main90461-10837iZVW30..ARL,EUR200904-201510

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D77iZVW30..RHD..(ARL,EUR)200904-201204

47372CLAMP, BRAKE TUBE, NO.2

main90461-10781iZVW30..ARL,EUR200904-201204

47374BCLAMP, BRAKE TUBE, NO.4

main77286-75020iZVW30..ARL,EUR200904-201511

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-75010iZVW30..ARL,EUR200904-201204

7701

9011908415

main90119-08415

90178T0007

main90178-T0007

9017906274

main90179-06274

9046808035

main90468-08035

9155180818

main91551-80818

9167180614

main91671-80614

91671A0616

main91671-A0616

40 parts on this diagram · 4 diagrams in section
