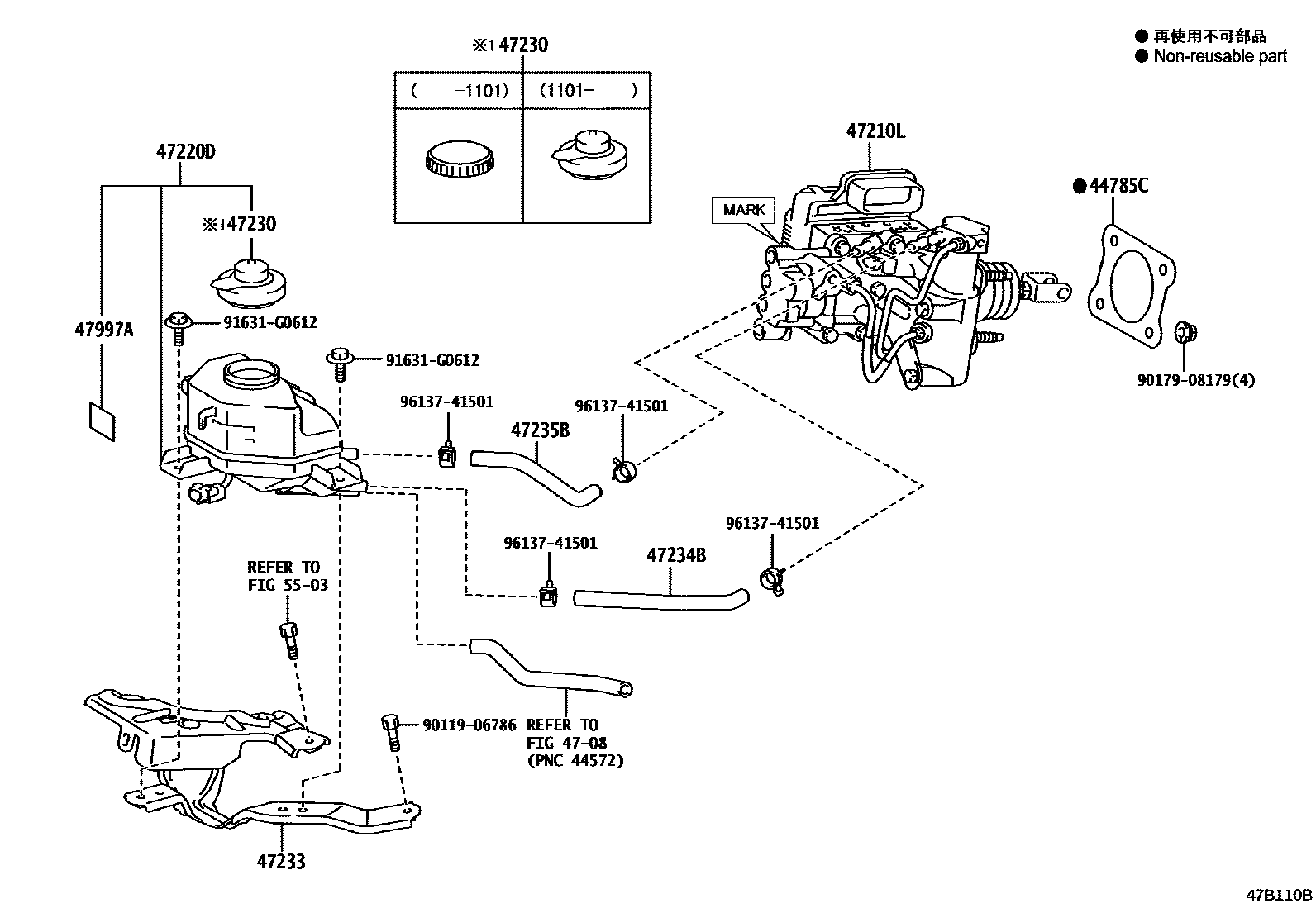

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iZVW30..ARL,EUR200904-201204

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47050iZVW30..RHD200904-201006

MARK=47210-47200

sub47050-47130

main47050-47070iZVW30..LHD200904-201006

MARK=47210-47150

sub47050-47150

main47050-47130iZVW30..RHD..(ARL,EUR)201007-201112

MARK=47210-47300

main47050-47130iZVW30..TH201012-201204

main47050-47150iZVW30..LHD201007-201112

MARK=47210-47320

main47050-47170iZVW30..TH201204

main47050-47170iZVW30..RHD..(ARL,EUR)201112-201310

MARK=47210-47340

main47050-47190iZVW30..LHD201112-201310

MARK=47210-47360

main47050-47300iZVW30..RHD..(ARL,EUR)201310

MARK=47210-47460

main47050-47320iZVW30..LHD201310

MARK=47210-47480

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47050iZVW30..RHD200904-201012

main47220-47060iZVW30..LHD200904-201004

sub47220-47080

main47220-47070iZVW30..RHD..(ARL,EUR)201012-201511

main47220-47080iZVW30..LHD201005-201511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iZVW30..TH201005-201204

main47230-58010iZVW30..LHD200904-201101

sub47230-11010

47233BRACKET, RESERVOIR

main47233-47040iZVW30..RHD..(ARL,EUR)200904-201510

main47233-47050iZVW30..LHD200904-201112

47234BTUBE, RESERVOIR, NO.1

main47234-47050iZVW30..TH200904-201204

main47234-47060iZVW30..LHD200904-201112

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-47050iZVW30..RHD..(ARL,EUR)200904-201204

main47235-47060iZVW30..LHD200904-201112

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-47020iZVW30..LHD200904-201101

sub47997-76010

main47997-47030iZVW30..LHD200912-201103

sub47997-76010

main47997-76010iZVW30..ARL,EUR201101-201204

5503

9011906786

main90119-06786

9017908179

main90179-08179

91631G0612

main91631-G0612

9613741501

main96137-41501

14 parts on this diagram · 2 diagrams in section
