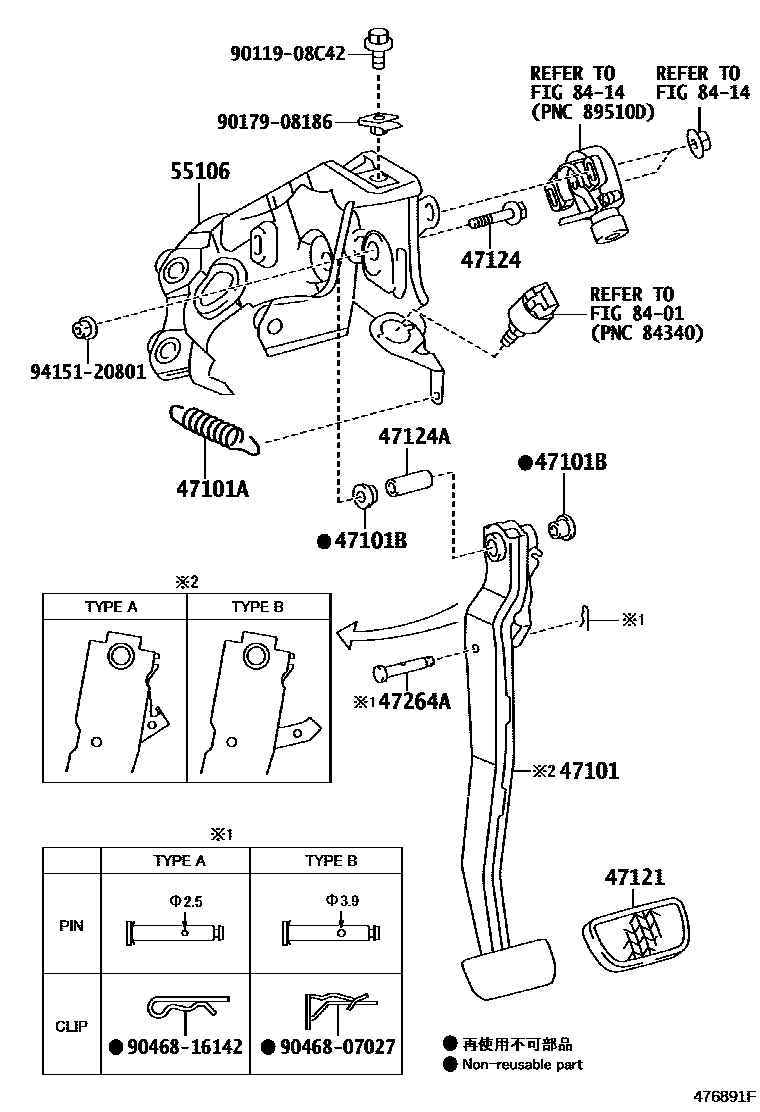

BRAKE PEDAL & BRACKET

0001 1 0003 1 0004 1 0006 1

47101PEDAL SUB-ASSY, BRAKE

main47101-75011iZVW30..RHD200904-200909

main47101-75011iZVW30..TH200909-201108

TYPE A:REFER ILLUST.

main47101-75012iZVW30..RHD..(ARL,EUR)201107-201204

TYPE B:REFER ILLUST.

main47101-75021iZVW30..LHD200904-201108

main47101-75022iZVW30..LHD201108-201112

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZVW30..ARL,EUR200904-201204

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZVW30..TH200904-201204

47121PAD, BRAKE PEDAL

main47121-42010iZVW30..ARL,EUR200904-201204

main47121-50020iZVW30..TH201112

47124SHAFT, BRAKE PEDAL

main47124-47010iZVW30..TH200904-201204

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-47010iZVW30..ARL,EUR200904-201204

47264APIN(FOR PUSH ROD)

main47148-47020iZVW30..TH200904-201112

TYPE A:REFER ILLUST.

main47148-47020iZVW30..TH201012-201204

main47148-47030iZVW30..ARL,EUR200904-201112

TYPE B:REFER ILLUST.

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-75010iZVW30..RHD200904-200908

sub55106-75011

main55106-75011iZVW30..RHD..(ARL,EUR)200909-201108

PNC 47101=TYPE A

main55106-75020iZVW30..LHD200904-200908

sub55106-75021

main55106-75021iZVW30..LHD200909-201108

main55106-76010iZVW30..RHD..(ARL,EUR)201107-201204

PNC 47101=TYPE B

main55106-76020iZVW30..LHD201108-201112

8401

8414

9011908C42

main90119-08C42

9017908186

main90179-08186

9046807027

main90468-07027

9046816142

main90468-16142

9415120801

main94151-20801

15 parts on this diagram · 4 diagrams in section
