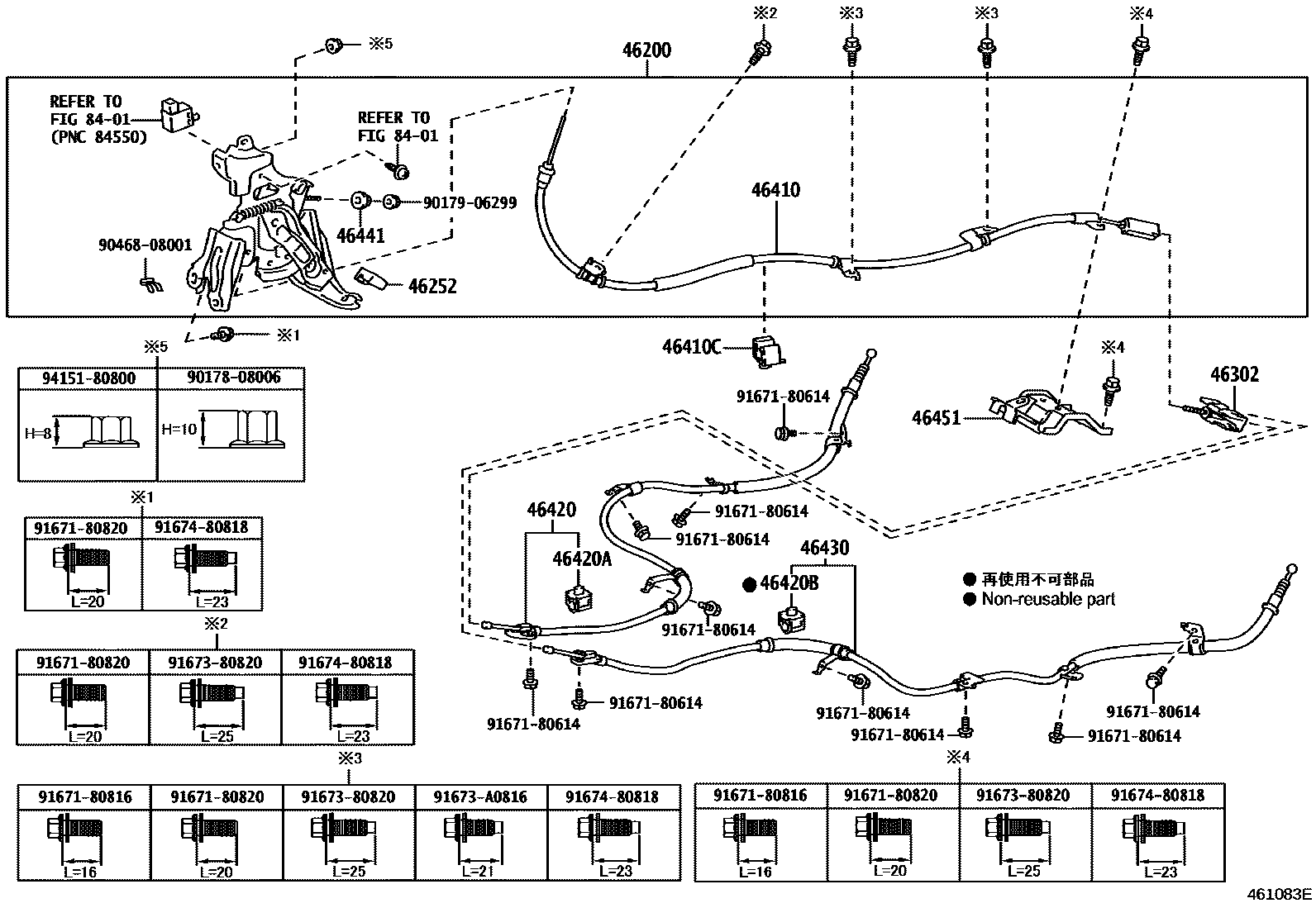

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-47070iZVW30..LHD200904-201112

main46200-47090iZVW30..RHD..(ARL,EUR)200904-201510

46252PAD, PARKING PEDAL

main46252-22010iZVW30..LHD200904-201204

main46252-47010iZVW30..LHD200912-201112

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-47020iZVW30..ARL,EUR200904-201204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47070iZVW30..LHD200904-201112

main46410-47090iZVW30..TH200904-201204

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-47020iZVW30..ARL,EUR200904-201204

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47080iZVW30..ARL,EUR200904-201204

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZVW30..ARL,EUR200904-201204

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46402-12030iZVW30..ARL,EUR200904-201204

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47080iZVW30..ARL,EUR200904-201204

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZVW30..ARL,EUR200904-201204

46451BRACKET, CABLE SUPPORT

main46451-47010iZVW30..ARL,EUR200904-201204

8401

9017808006

main90178-08006

9017906299

main90179-06299

9046808001

main90468-08001

9167180614

main91671-80614

9167180816

main91671-80816

9167180820

main91671-80820

9167380820

main91673-80820

91673A0816

main91673-A0816

9167480818

main91674-80818

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
