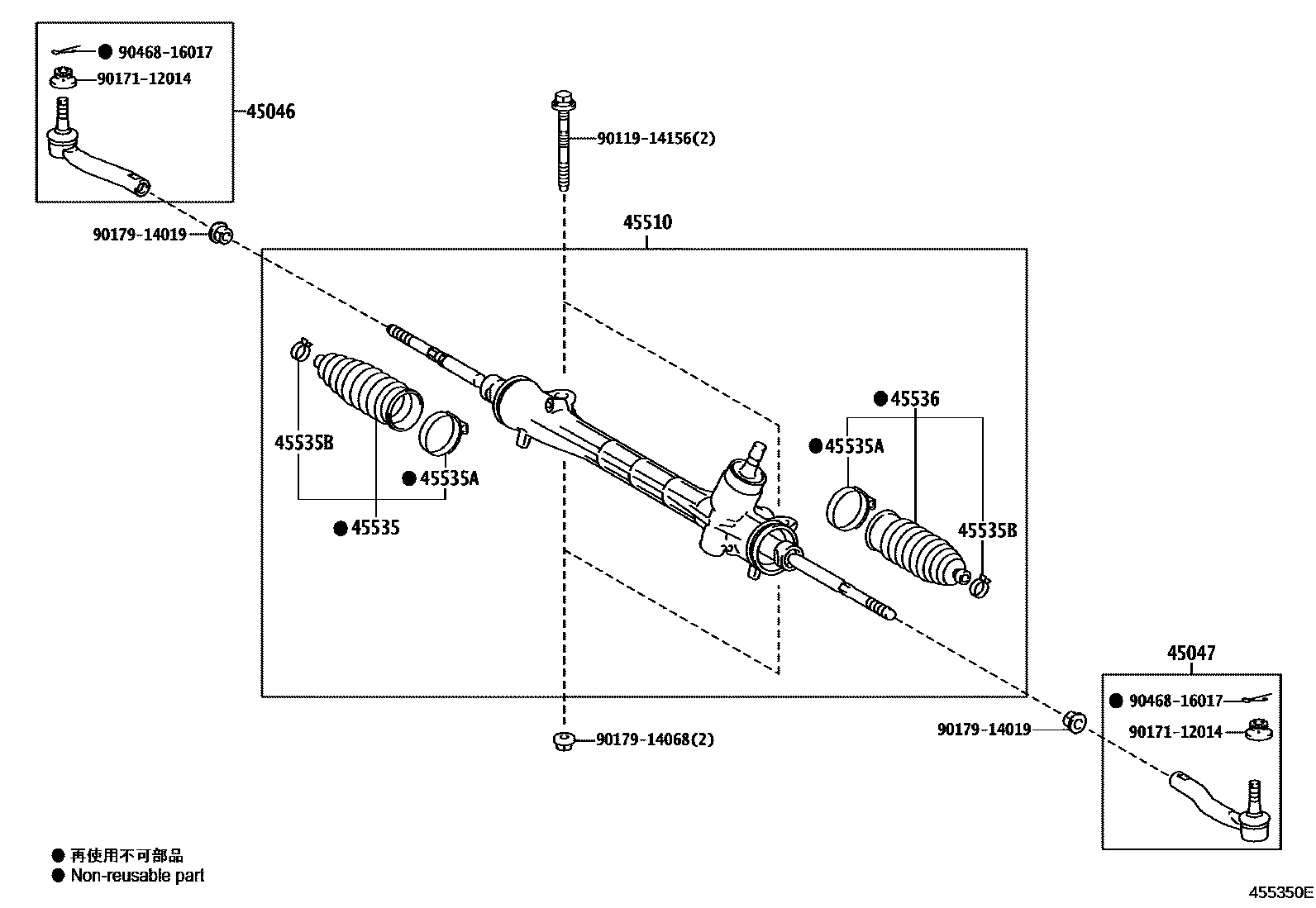

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZVW30..TH200904-201204

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZVW30..TH200904-201204

45510GEAR ASSY, STEERING

main45510-47050iZVW30..LHD200904-201112

main45510-47070iZVW30..TH200904-201204

main45510-47120iZVW30..LHD201207

BRAZIL SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW30..ARL,EUR200904-201204

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010iZVW30..ARL,EUR200904-201204

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZVW30..ARL,EUR200904-201204

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW30..ARL,EUR200904-201204

9011914156

main90119-14156

9017112014

main90171-12014

9017914019

main90179-14019

9017914068

main90179-14068

9046816017

main90468-16017

12 parts on this diagram · 2 diagrams in section
