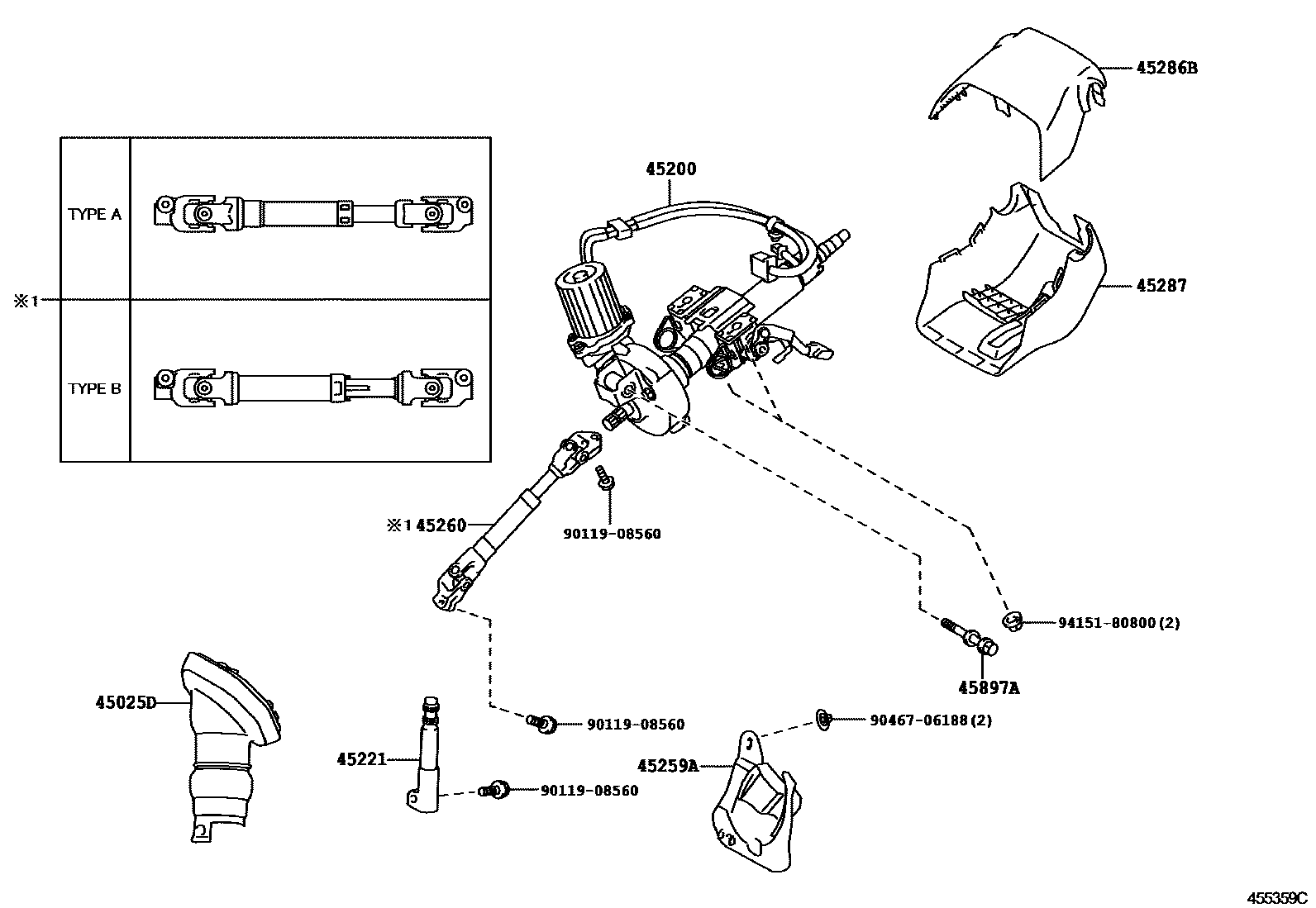

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45200POST ASSY, STEERING
45221SHAFT, STEERING INTERMEDIATE
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
(L),T/P B:REF.ILLUST
TYPE B:REFER ILLUST.
(J),T/P B:REF.ILLUST
sub45260-12710
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9046706188
main90467-06188
9415180800
main94151-80800
11 parts on this diagram · 2 diagrams in section
