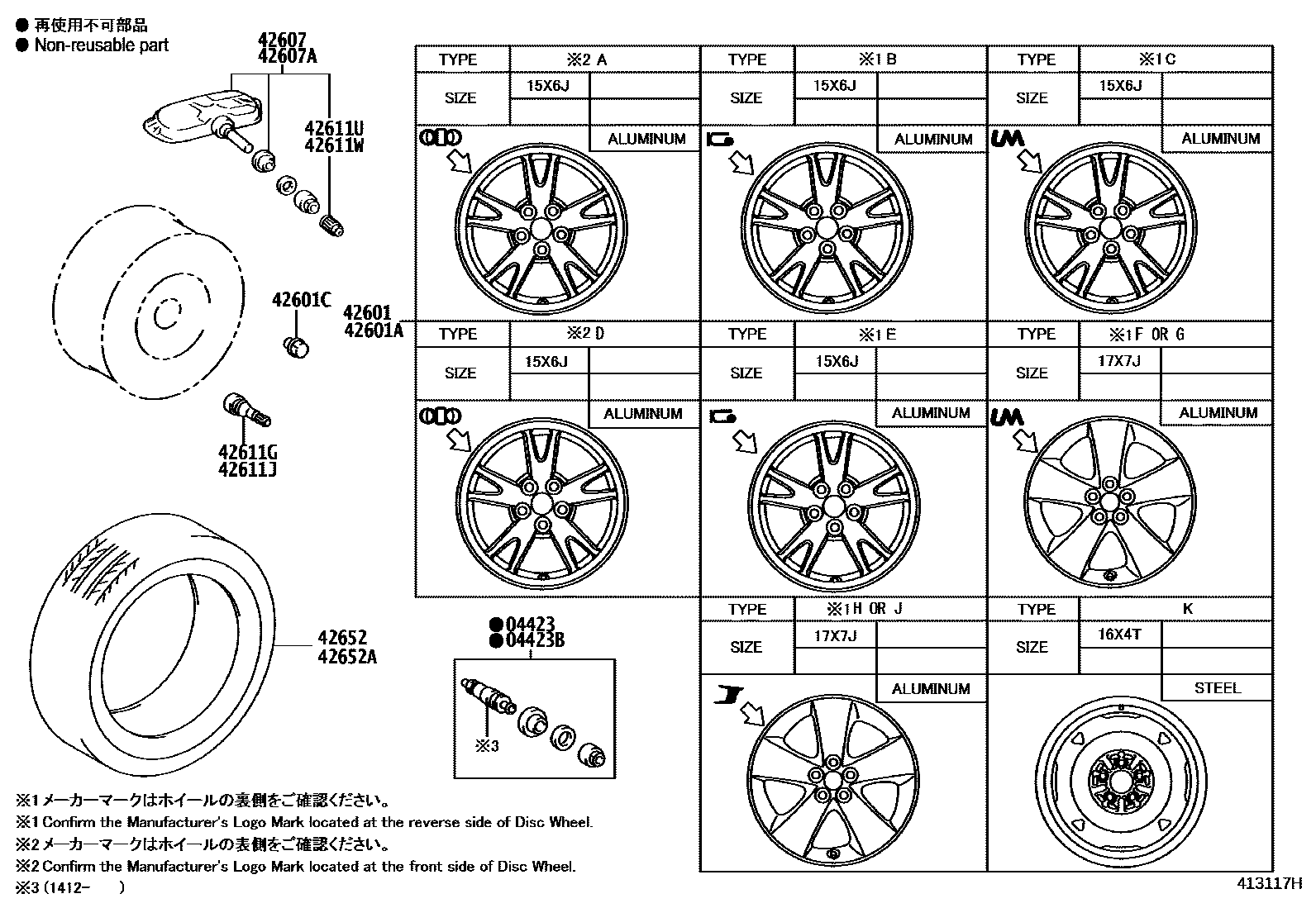

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY
TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY
42601WHEEL, DISC
15X6J, #,(L),T/P B:REF.ILLUST
15X6J, #,SYRIA SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARETIRE-195/65R15 6J ALMINUM GENERAL COUNTRY,TYPE A:REFER ILLUST.
15X6J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,(J),T/P B:REF.ILLUST
17X7J, #,MIDDLE S.AMERICA SPEC W/O(CHILE&MECICO)&SPARE TIRE-REPAIR KIT,TYPE F:REFER ILLUST.
17X7J, #,HONG KONG SPEC&SPARE TIRE-REPAIR KIT,TYPE H:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM,TYPE H:REFER ILLUST.
sub42611-47211
15X6J, #,FRANCE OR SPAIN SPEC&TIRE & DISC WHEEL-195/65R15 6J ALMINUM EUROPE,TYPE A:REFER ILLUST.
15X6J, #,FRANCE OR SPAIN SPEC&TIRE & DISC WHEEL-195/65R15 6J ALMINUM EUROPE,TYPE A:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY,TYPE B:REFER ILLUST.
15X6J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-19
42601AWHEEL, DISC (FOR SPARE)
15X6J, #,(L),T/P B:REF.ILLUST
16X4T,TYPE K:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
15X6J, #,(J),T/P B:REF.ILLUST
15X6J, #,HONG KONG SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY,TYPE A:REFER ILLUST.
15X6J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&HONG KONG SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE
15X6J, #,THAILAND SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
15X6J, #,EGYPT SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST.
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE D:REFER ILLUST.
sub42611-47141
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST.
sub42611-47141
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY,TYPE A:REFER ILLUST.
15X6J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J A
15X6J, #,TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY,TYPE B:REFER ILLUST.
15X6J, #,REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&BRAZIL SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-19
42601CNUT, HUB (FOR AXLE)
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
TIRE & DISC WHEEL-195/65R15 6J ALUMINUM INDIA&SPARE TIRE-195/65R15 6J ALMINUM INDIA
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY&SPARE TIRE-195/65R15 6J ALMINUM GENERAL COUNTRY
42652TIRE
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
195/65R15,GOODYEAR,TAIWAN SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
sub42652-12C51
195/65R15,*Y/H,CHILE SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
sub42652-12C71
215/45R17,*B/S,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
215/45R17,*B/S,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
215/45R17,MICHELIN,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
215/45R17,*T/Y,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
215/45R17,*T/Y,TIRE & DISC WHEEL-215/45R17 7J ALUMINUM
42652ATIRE (FOR SPARE)
195/65R15,GOODYEAR
195/65R15,GOODYEAR
195/65R15,*Y/H
195/65R15,*Y/H
T135/80D16,*D/L
T135/80D16,*Y/H
T135/80D16,*B/S
195/65R15,GOODYEAR,TAIWAN SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
sub42652-12C51
195/65R15,*Y/H,CHILE SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES&SPARE TIRE-GROUND TIRE
sub42652-12C71
13 parts on this diagram · 3 diagrams in section
