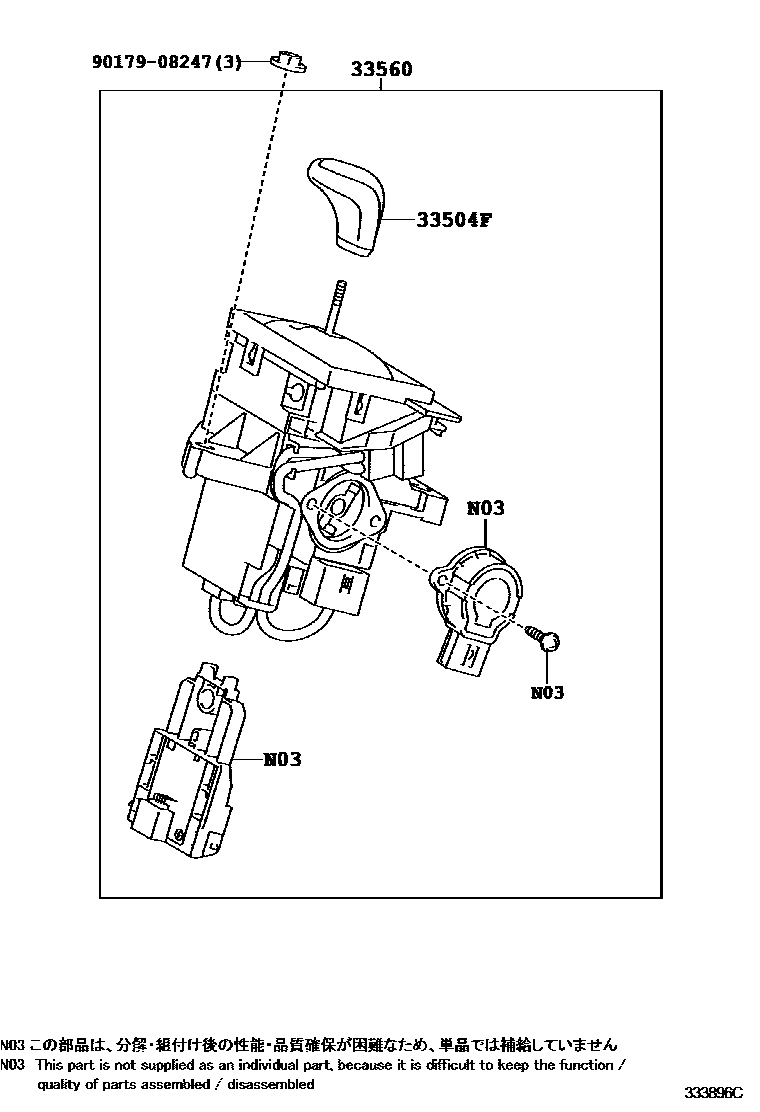

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-49005-B0iZVW30..RHD..(ARL,EUR)201112-201511

ORNAMENT SILVER,TRIM2#,6#

main33504-49005-B3iZVW30..TH201012-201204

SILVER ME.11SV09,TRIM1#

main33504-49006-B0iZVW30..LHD201112-201511

ORNAMENT SILVER,TRIM2#,6#

main33504-49006-B3iZVW30..LHD200904-201112

SILVER ME.11SV09,TRIM1#,6#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33550-47041iZVW30..RHD200904-201006

main33550-47041-B0iZVW30..RHD201006-201012

SILVER ME.11SV09,TRIM1#,6#

main33550-47042-B0iZVW30..TH201101-201204

SILVER ME.11SV09,TRIM1#

main33550-47043-B2iZVW30..RHD..(ARL,EUR)201112-201511

ORNAMENT SILVER,TRIM2#,6#

main33550-47051iZVW30..LHD200904-201006

main33550-47051-B0iZVW30..LHD201006-201012

SILVER ME.11SV09,TRIM1#,6#

main33550-47052-B0iZVW30..LHD201101-201112

SILVER ME.11SV09,TRIM1#,6#

main33550-47053-B1iZVW30..LHD201112-201511

ORNAMENT SILVER,TRIM2#,6#

9017908247

main90179-08247

3 parts on this diagram · 2 diagrams in section
