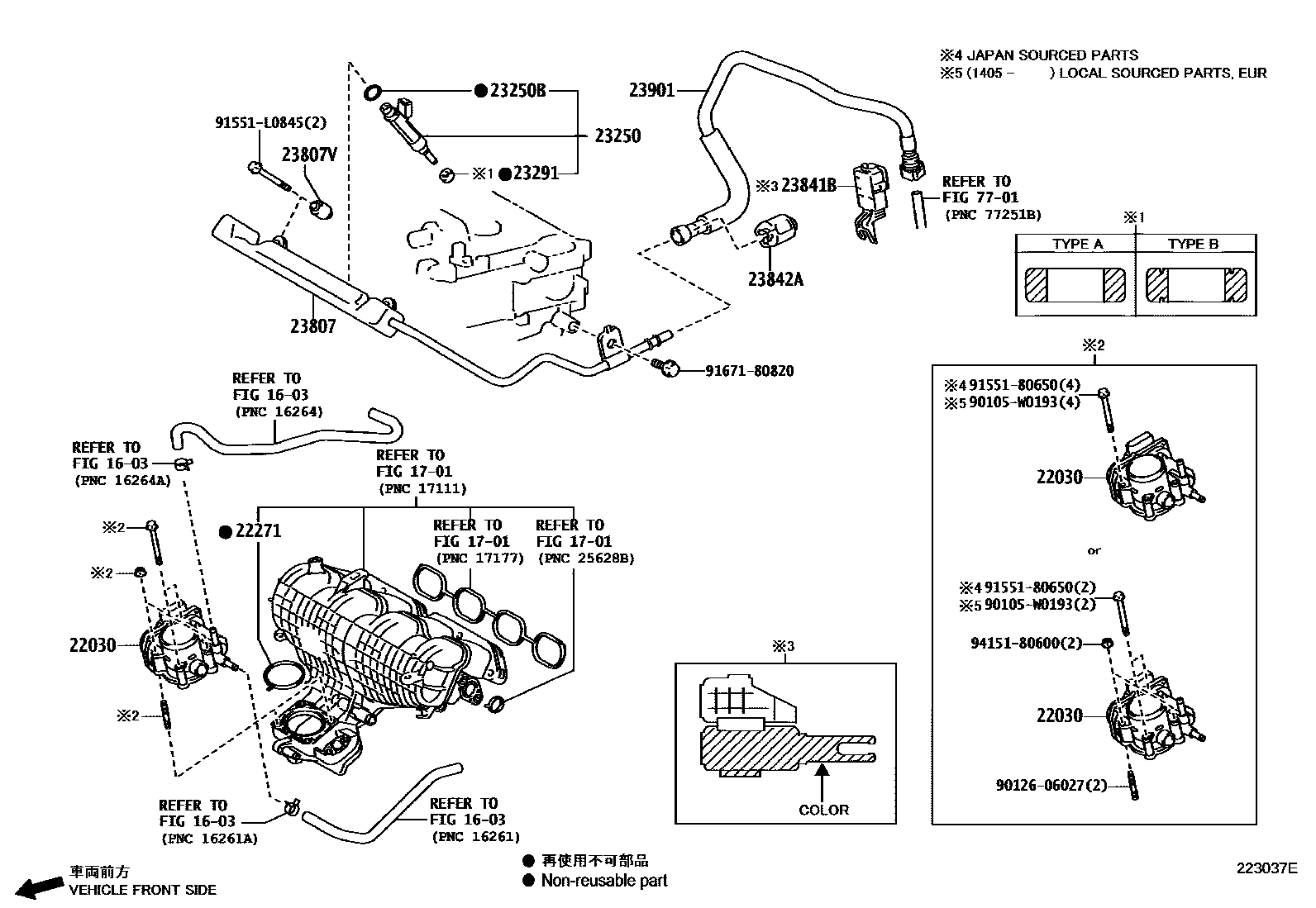

FUEL INJECTION SYSTEM

1603

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-37060i2ZRFXE..ZVW30..TH201012-201204

main22030-0T110i2ZRFXE..ZVW30..EUR201210-201511

ENGINE-2ZR-FXE(MADE IN UK),(L)

22271GASKET, THROTTLE BODY

main22271-37010i2ZRFXE..ZVW30..ARL,EUR200904-201112

main22271-0T030i2ZRFXE..ZVW30..EUR201404

ENGINE-2ZR-FXE(MADE IN UK),(L)

23250INJECTOR ASSY, FUEL

main23209-39146×4i2ZRFXE..ZVW30..ARL,EUR201112-201511

main23209-09130×4i2ZRFXE..ZVW30..EUR201204-201511

ENGINE-2ZR-FXE(MADE IN UK),(L)

main23209-39145×4i2ZRFXE..ZVW30..EUR201204-201511

ENGINE-2ZR-FXE(MADE IN UK),(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE..ZVW30..ARL,EUR200904-201112

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i2ZRFXE..ZVW30..ARL,EUR201001-201112

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFXE..ZVW30..ARL,EUR201112

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37060i2ZRFXE..ZVW30..TH201012-201108

main23814-37061i2ZRFXE..ZVW30..TH201204

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZRFXE..ZVW30..ARL,EUR200904-201112

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21040i2ZRFXE..ZVW30..ARL,EUR201208-201303

COLOR : GRAY

main23841-37090i2ZRFXE..ZVW30..TH201302-201510

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ZRFXE..ZVW30..ARL,EUR200904-201112

23901TUBE SUB-ASSY, FUEL

main23901-37100i2ZRFXE..ZVW30..ARL,EUR200904-201112

7701

90105W0193

main90105-W0193

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
